HF2211 Serial Server Device User Manual

http://www.iotworkshop.com - 29 -

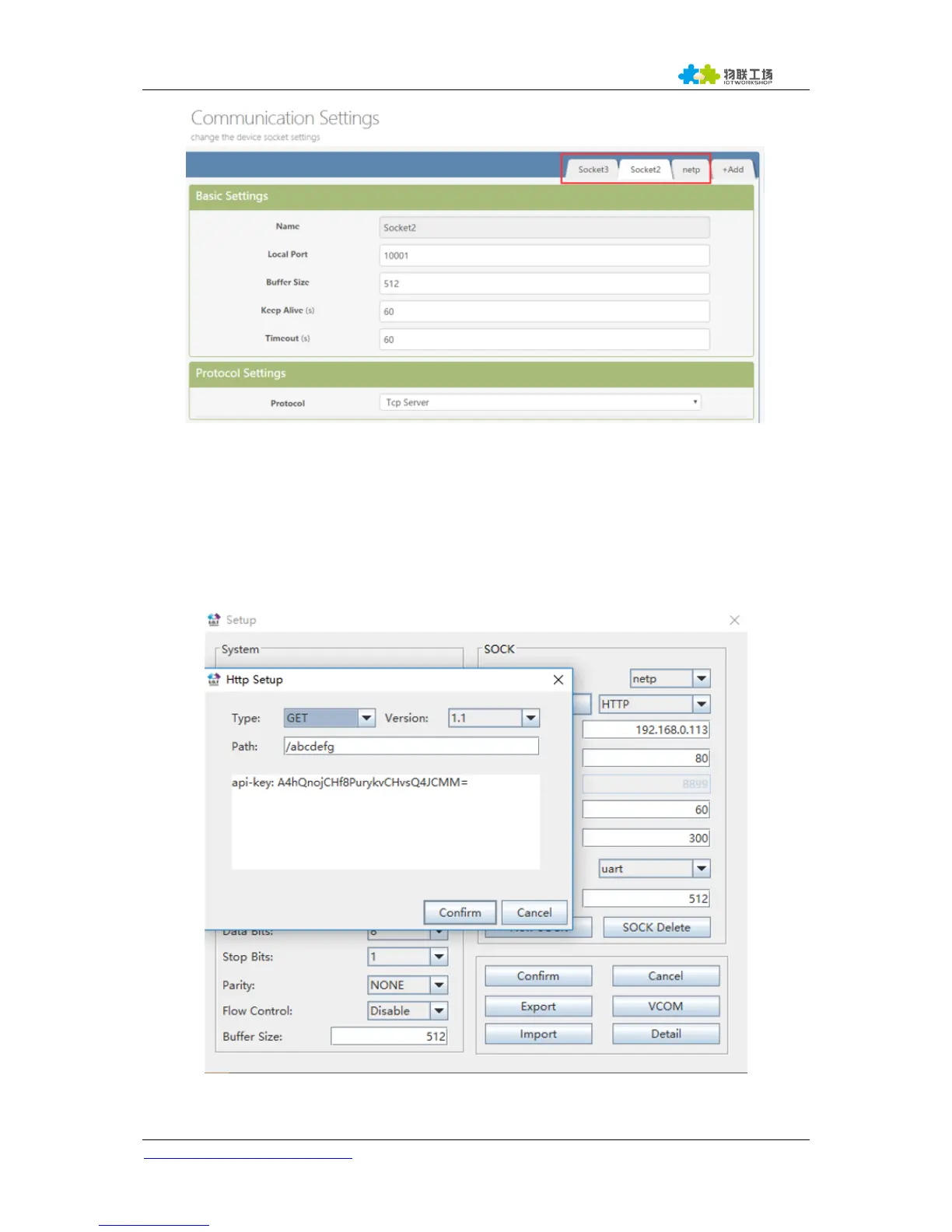

Figure 26. Webpage set up multi Socket channel

3.4.3. HTTP Mode

HF2211 device support sending data in HTTP format to HTTP server(Set product working mode by

IOTService software or webpage). When device socket works in HTTP mode, All received UART data

will automaticly transform to HTTP format(add HTTP header) and transmit to HTTP server. For the

received HTTP data from HTTP server, will automatically remove HTTP header and only output the

data packet to UART.

Figure 27. IOT Manager Software Configure
