432-0003-00-10 Rev 150 — M-Series Operator’s Manual 53
M-Series IP Interface and PC Operations

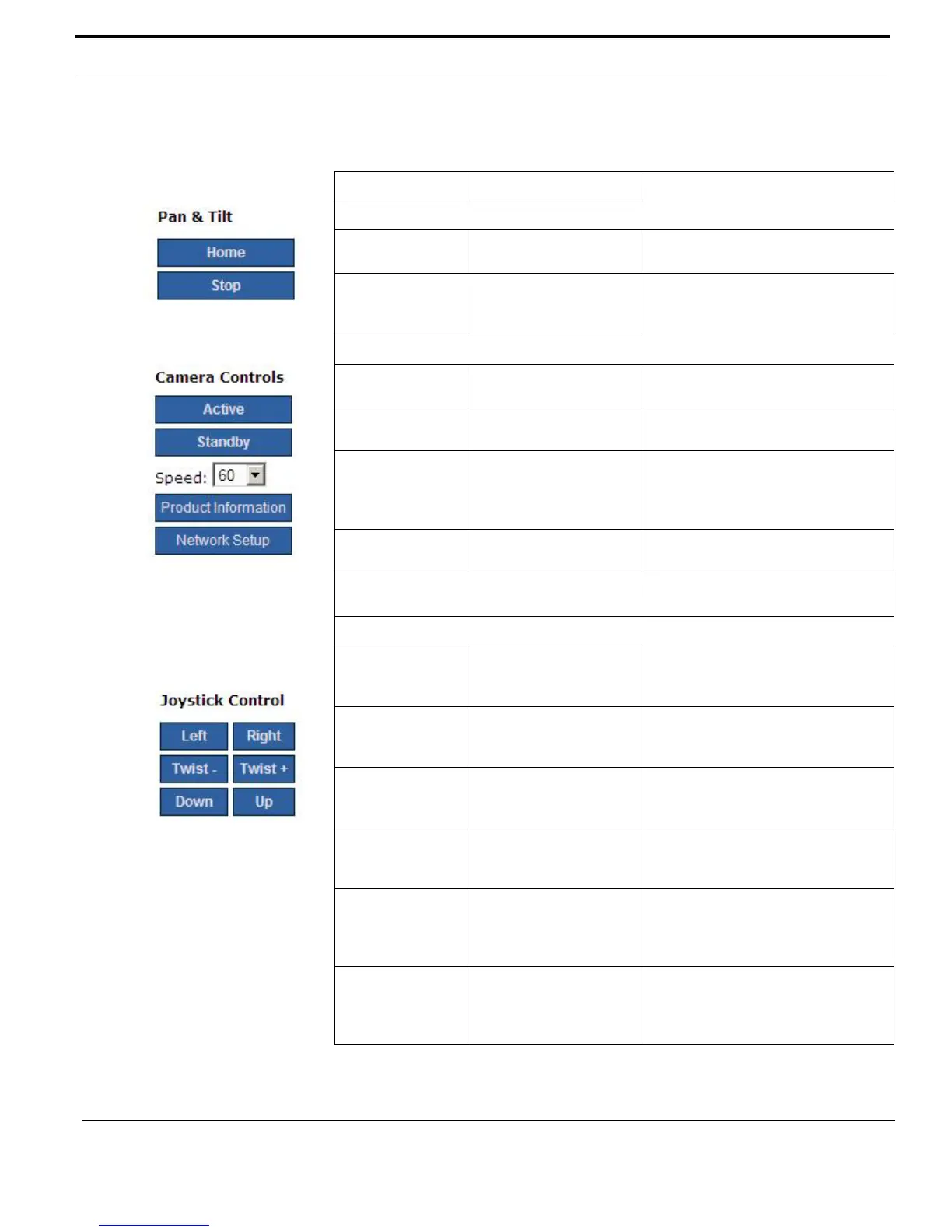

TABLE 5.1 Web Links and Equivalent JCU/Button Actions
Web Control Equivalent Operation Comment
Pan and Tilt
Home JCU: Press HOME
button
Click and hold to set the home
position.
Stop No equivalent Stops all movement of the camera,
including surveillance mode. No
equivalent JCU function.
Camera Controls
Active JCU: Press Power/DIM
button
Wakes the camera from a standby
mode.
Standby JCU: Press and hold
Power/DIM button
Executes the System Standby option
on the JCU Power Menu.
Speed (pull-down) JCU implements
proportional speed
control based on puck
displacement
Controls the speed of pan and tilt
operations; Possible selections: 40,
60, 80, 100.
Product
Information
MENU: About/Help >
Product Information
Network Setup No equivalent Refer to “Network Settings” on
page 58.
Joystick Control
Left JCU: Push Puck left With Twist-to-Pan mode enabled
(default), pressing the puck left/right
does nothing.
Right JCU: Push Puck right With Twist-to-Pan mode disabled,
clicking on Left or Right causes the
camera to pan left or right.
Twist - JCU: Twist Puck
counterclockwise
With Twist-to-Pan mode enabled
(default), twisting the puck causes the
camera to pan left or right.
Twist + JCU: Twist Puck
clockwise
When Twist-to-Pan is disabled,
twisting the puck will cause the IR
camera to zoom in/out.
Down JCU: Pull Puck
backward (toward user)
Controls camera tilt (direction
depends on Aircraft Joystick Mode);
used to navigate menu in both
modes.
Up JCU: Push Puck forward
(away from user)
Controls camera tilt (direction
depends on Aircraft Joystick Mode);
used to navigate menu in both
modes.
