OPERATION (continued)
USER CONFIGURATION MODE (Field Calibration Mode) (continued)
Dispense Display Method (continued)
Begin dispensing into a container of known
accurate volume. As soon as pulses are detected
by the software, the screen will change to display
the volume being dispensed on the top row and
the volume unit on the bottom row. (See Figure
31-3)
NOTE: The user is permitted approximately 10
minutes to dispense fluid into the container.
Dispensing fluid longer than 10 minutes will
prompt a configuration mode exit, and any
configuration mode edits/changes the user made
will NOT BE SAVED.
When the user is finished with the run, press and hold the Total button until the left most
digit begins to flash indicating it is in focus, then release the Total button.
Pressing the Rate button will increment the digit in focus. Pressing the Total button will
advance focus to the next digit.
To advance focus to the next menu, press and hold the Total button and then press the
Rate button.
NOTE: Advancing focus to the next menu will lock in the entered volume.
The software will then calculate the K-factor for the volume entered based on the pulse count
for the run and the volume entered. The average frequency and the K-factor will be entered
into the custom user K-factor table for “run”.
Exit Dispense Display Method

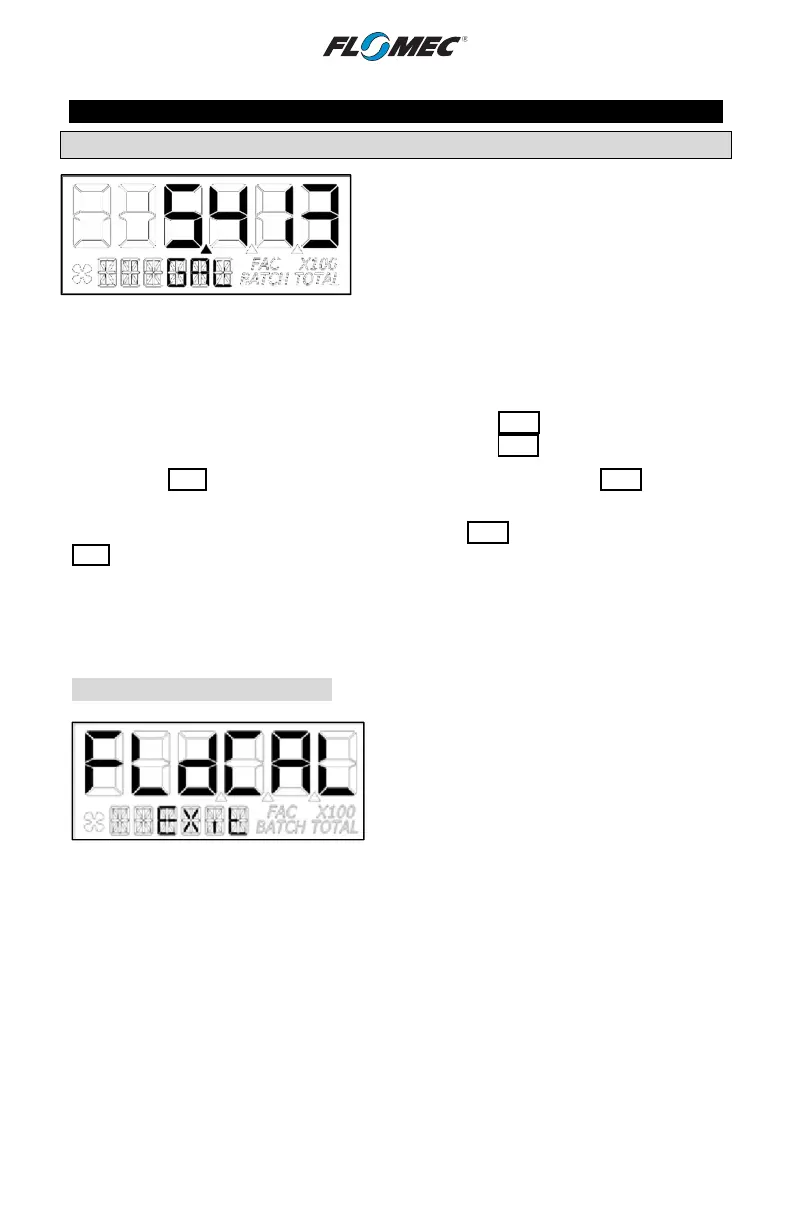

NOTE: “FldCAL” will then be displayed on the top
row and “Exit” on the bottom row (see Figure 32).
The software will temporarily store the sorted
table of frequencies and K-factors, then display
the “Save” screen. (See Figure 13)
Figure 32
NOTE: Failure to save your entries on the “save” screen will cause the entries to be
discarded.
Figure 31-3
To Next Page
