SPECIFICATIONS (continued)

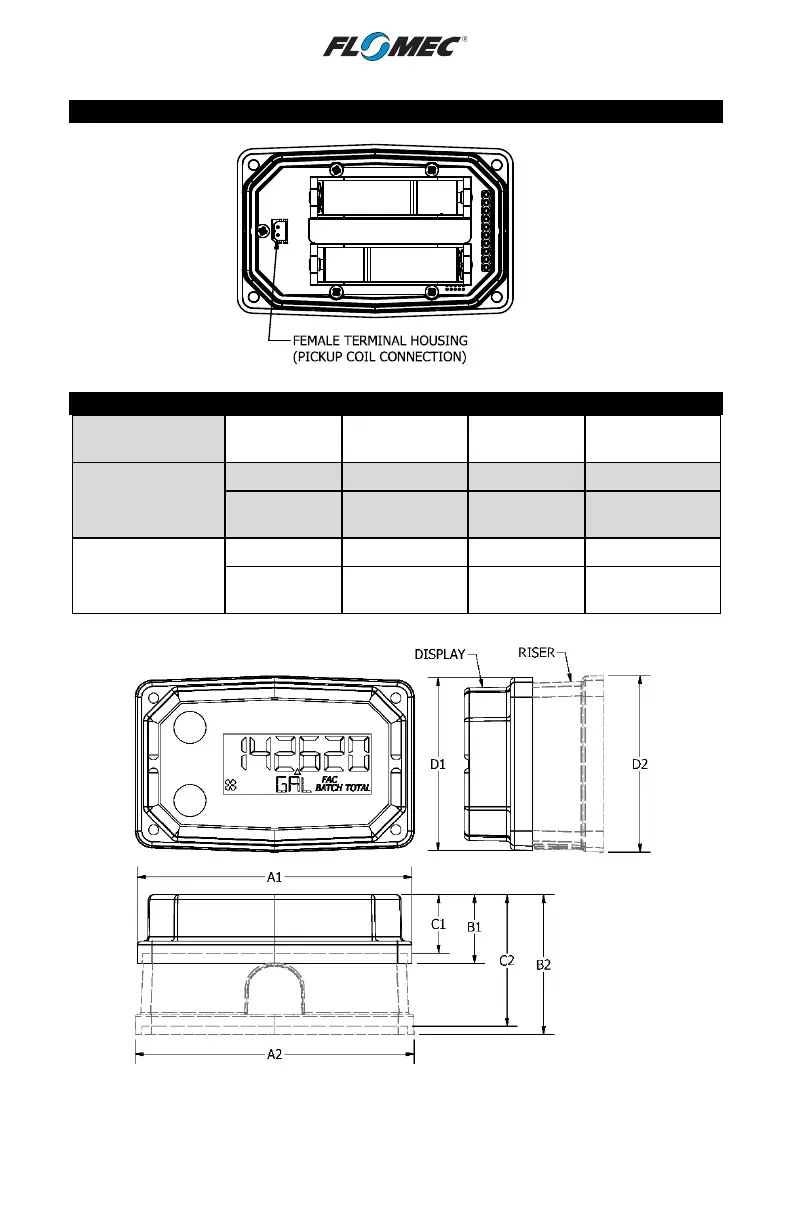

COMPUTER ELECTRONICS TERMINAL CONNECTIONS
Figure 1
DIMENSIONS
Length Height
Height
(Mounted)
Width
(Widest Point)
Standard Display
A1
B1
C1
D1
3.40 in.
(8.6 cm)
0.85 in.
(2.1 cm)
0.72 in.
(1.8 cm)
2.14 in.
(5.4 cm)
Hi
-
Temp Display
(With Riser)
A2
B2
C2
D2
3.45 in.
(8.8 cm)
1.72 in.
(4.4 cm)
1.62 in.
(4.1 cm)
2.18 in.
(5.5 cm)
Figure 2
