3.1 Computer Station
Computer station is control centre, which is located at right side of the machine! It takes charge early
treatment before printing including image ripping and print mode setting. Most function starts to work
when get the command from computer.
3.2 Maintenance Station
Maintenance station is in right compartment. When the carriage stopped working, it will come back to
station. All the maintenance performance should be done here.
3.3 Carriage & Beam Assembly
The print head carriage assembly houses the print heads, secondary ink tanks, print head control
board, raster reader, negative pressure sensor.
Rail guide serves as pathway for carriage moving, and the beam serves as frame for rail guide
mounting.

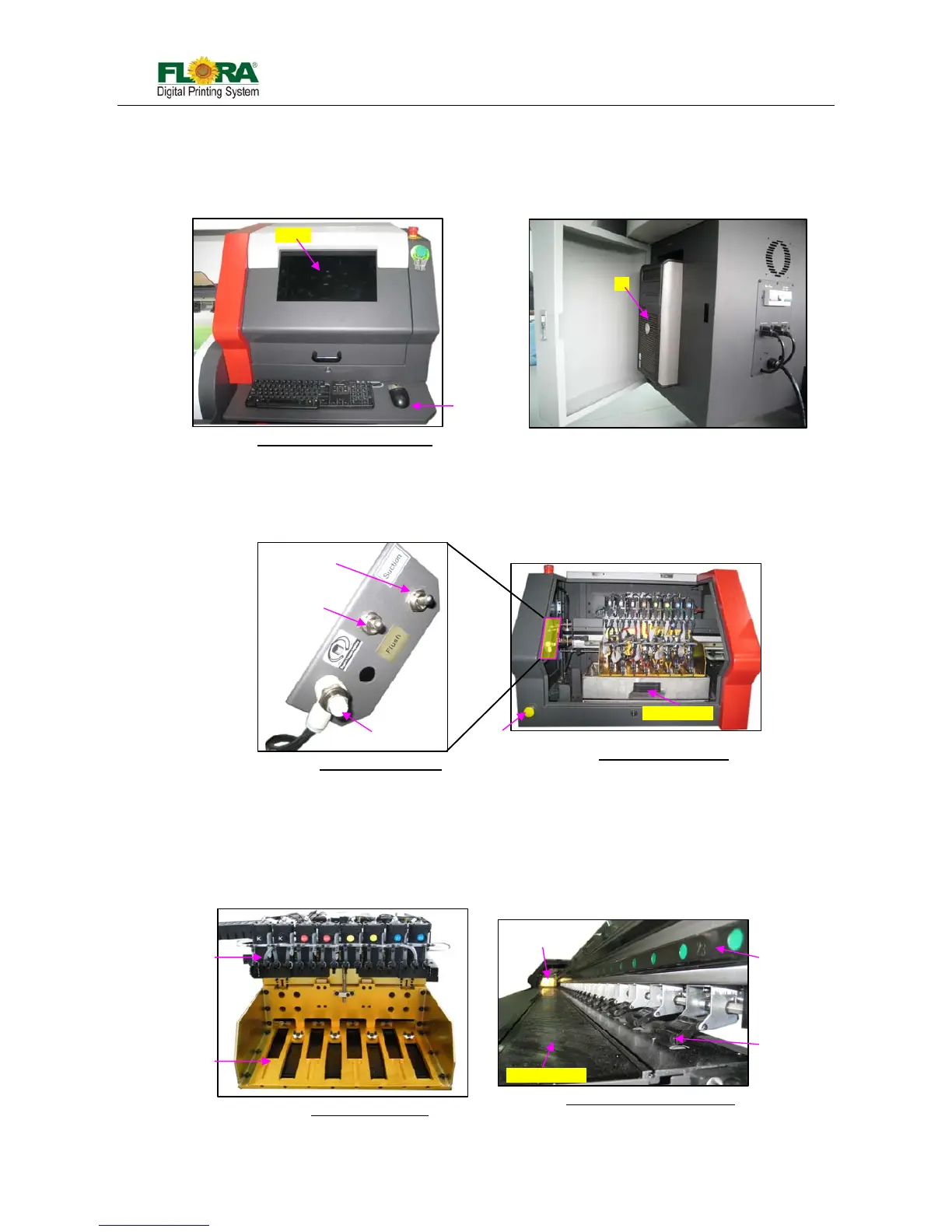

Fig.3.2-1 Maintenance Panel
Vacuum To
gg
le
Switch
Flush To
gg
le
Switch
A
ir flow Control
Fig.3.2-2 Maintenance Station
Pur
g
e Button
Waste ink Tra
y
Fig.3.3-1 Carriage Assembly
Ink Tank
PH Plate
Fig.3.3-2 Beam&Pinch Roller&Plate
Carria
g
e
Printin
g
Platform
Rail Guide
Pinch Roller
Fig.3.1-1 Monitor&Keyboard&Mouse
Monitor
Ke
y
Board &
Mouse Bracket
Fig.3.1-2 Computer
PC
