4.7 Drying System
For this model there are two drying system for high speed output drying! One is Heating System
which temperature of heating can be setting by manually, the other one is Cold Fans System.
4.8 Take-up and feeding System
During printing, the roll media indexes forward by the stepping action of the Y-axis Servomotor that
rotates the Pinch Roller. Henceforth, after a certain number of indexes, the roll media will clear the
Feeding Optical Sensor. The clearing of optical sensor will activate the DC Motor to rotate the spooler
roller and lay forward the media until the optical sensor is blocked. This automatic action is kept on
cycling as the printing process is on progress.
On the other hand, when the roll media at the front side becomes loosed and the Front Optical
Sensor is blocked, the Take-up DC Motor will then rotate to wind (spool-in) the printed media. During the
winding of the printed media, the Front Optical Sensor will be cleared and then will automatically stop the
DC Motor. The rotation of the Take-up Roller in Auto Mode energizes the DC Motor (clockwise rotation)
with the image prints turning outside the roller while the Manual Mode turns the other direction which
loosen up the media from the roller.
On the other hand, the Feeding Roller System has a transition switch to change the direction of the

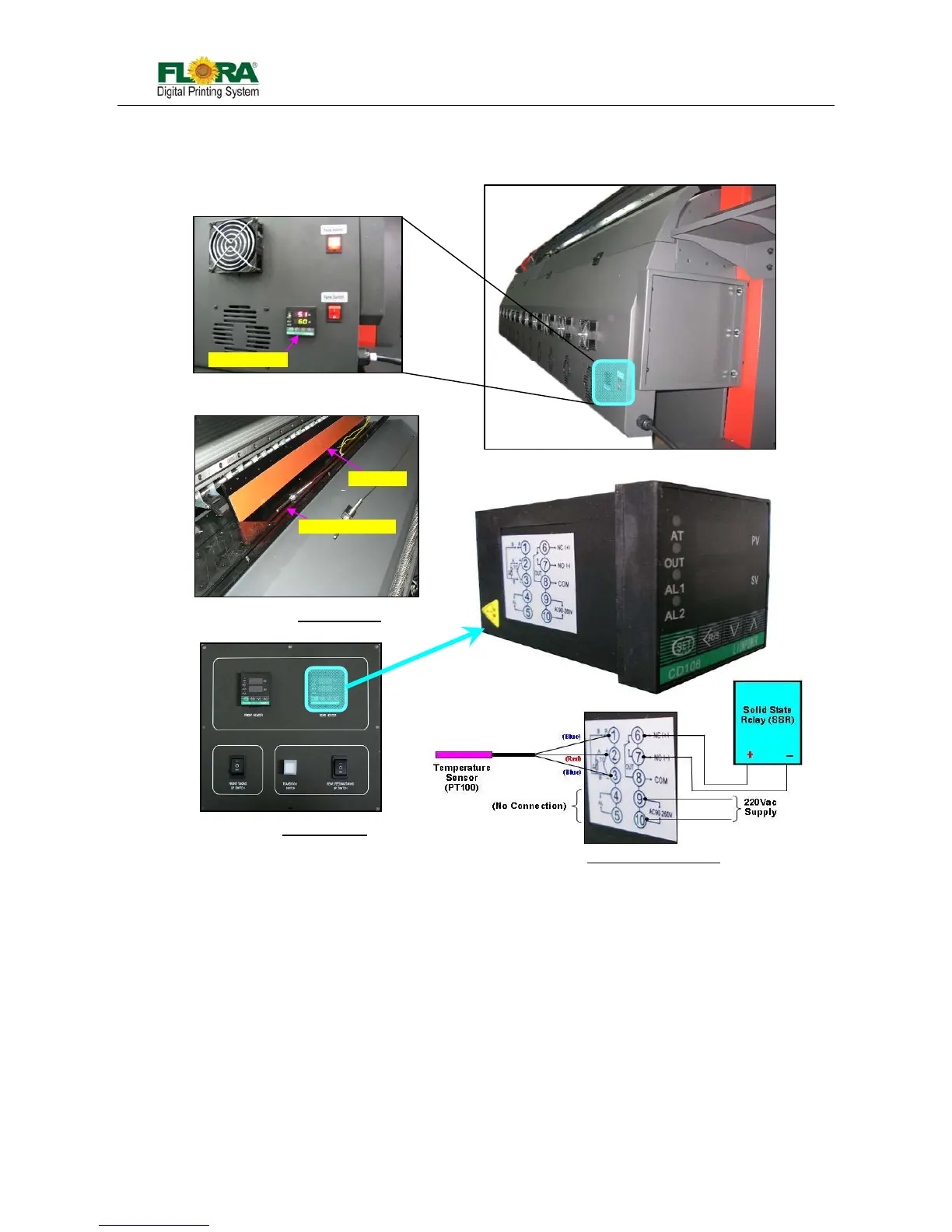

Fig. 4.7-4: LionPower Connetion
Fig. 4.7-1: Drying System
Fig. 4.7-2: Back Heating
Temperature Sensor
Heatin
g
Belt
Thermore
g
ulator
Fig. 4.7-3: Control Panel
