FLORA LJ3208P - Mechanical Movement System

Flora Digital Printing System
Model LJ320P
Copyright 2011@ Shenzhen Runtianzhi Image Technology Co.,Ltd. By Victor Xu
~24~
Power indicator:
D1: 24V power indicator normal on
D2: 5V power indicator normal on
D3: 15V power indicator normal on

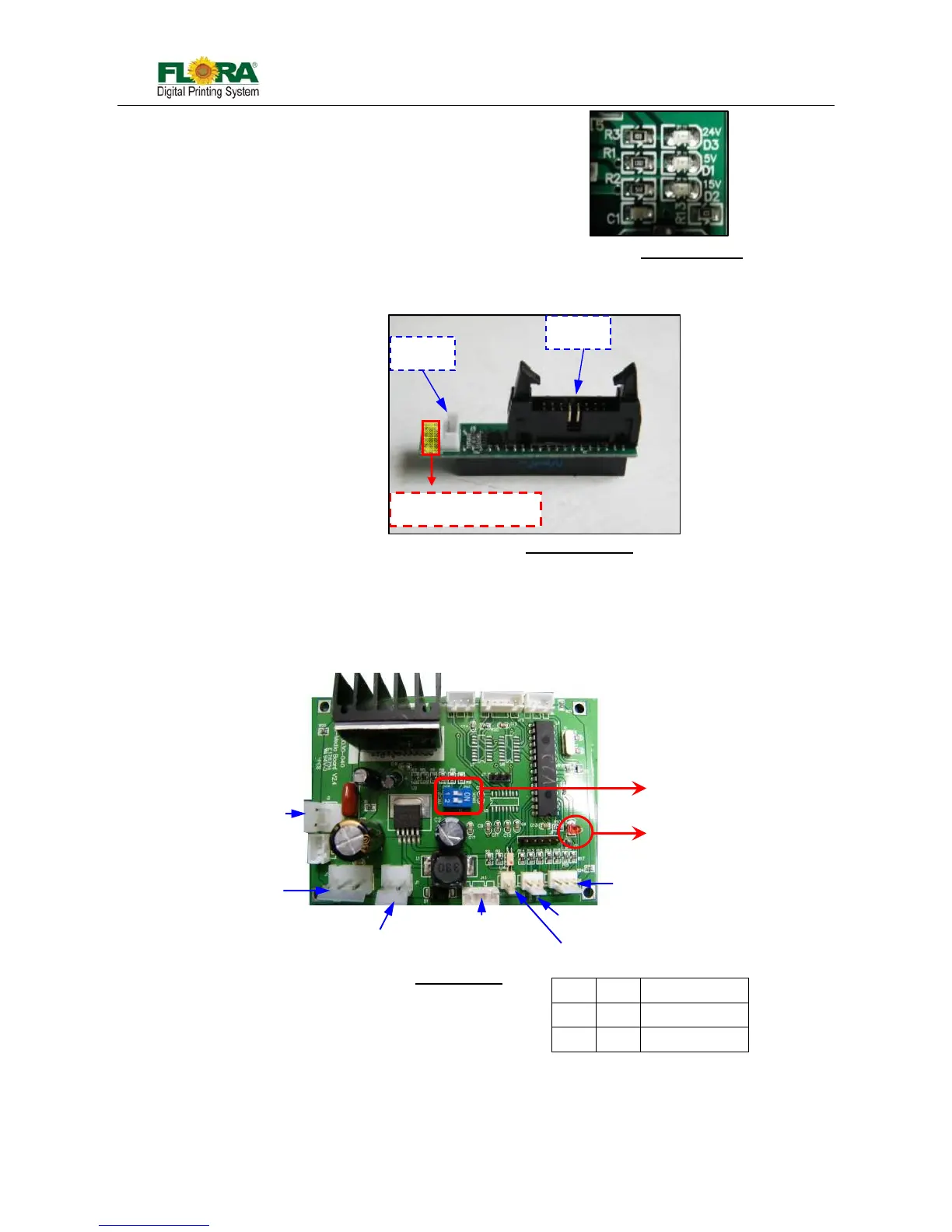

4.3.5 Connector Board(116-0402-020)
This board is used as interface board for Print head and the Print head Control Board thru a
16-pin flexible data cable. It is fixed on the print head by insert to the pin of Print head.
Power indicator:
D1: 5V power indicator normal on
D2: high-voltage pulse indicator bright periodically normal on
4.3.6 RTZ-16UV Media Board-V1.3(116-0030-041)
 Taking-up or feeding media automatically
4.4 Mechanical Movement System
Movement system is very important part of the machine, which directly decides the printing precision!
There are two movement system, X-axis movement(Carriage movement) and Y-axis(Media Feeding).
1 2 Model
ON
ON
Take-up board
OFF
OFF
Feed board
Fig.4.3.5-1: Connector Board
Working indicator
PHB PB0
HPB JB1
Swing switch
Motor
Optical switch
Optical switch
Shift switch
Shift switch
24V input
Model setting
switch
Working
indicator
F
ig. 4.3.6-1: Media Board
Fig.4.3.4-1 Power Indicator
