FLORA LJ3208P - Y-axis Movement System

Flora Digital Printing System
Model LJ320P
Copyright 2011@ Shenzhen Runtianzhi Image Technology Co.,Ltd. By Victor Xu
~26~
stroke.
Besides limited switches, there are two protection rubbers used as mechanical
protector. They are fixed on the side of beam.
4.4.2 Y-axis Movement (Media Feeding System)
The DC Servo Motor is a brush-commutated DC motor which is responsible for the forward
and backward movement of the Media. This motor is powered by 36VDC. To precise movement of
the media feeding is controlled by a servomotor with a closed-loop feedback signal from the encoder
coupled on the shaft of the motor. The step and direction signal is mainly controlled from the USB
Board and this signal is amplified by the Servo Driver to drive the Servomotor.
4.4.2.1 Servo Driver & Motor
This machine used ACS806 Servo drive and motor as powerplant. The servo driver
installed at the right side behind the Beam, while the servo motor installed at the right side of the
beam. Servo driver is a transfer station, which will get movement signal from USB Board then
control the motor working.
Home Position Switch
Right Limit Switch
Left Limit Switch

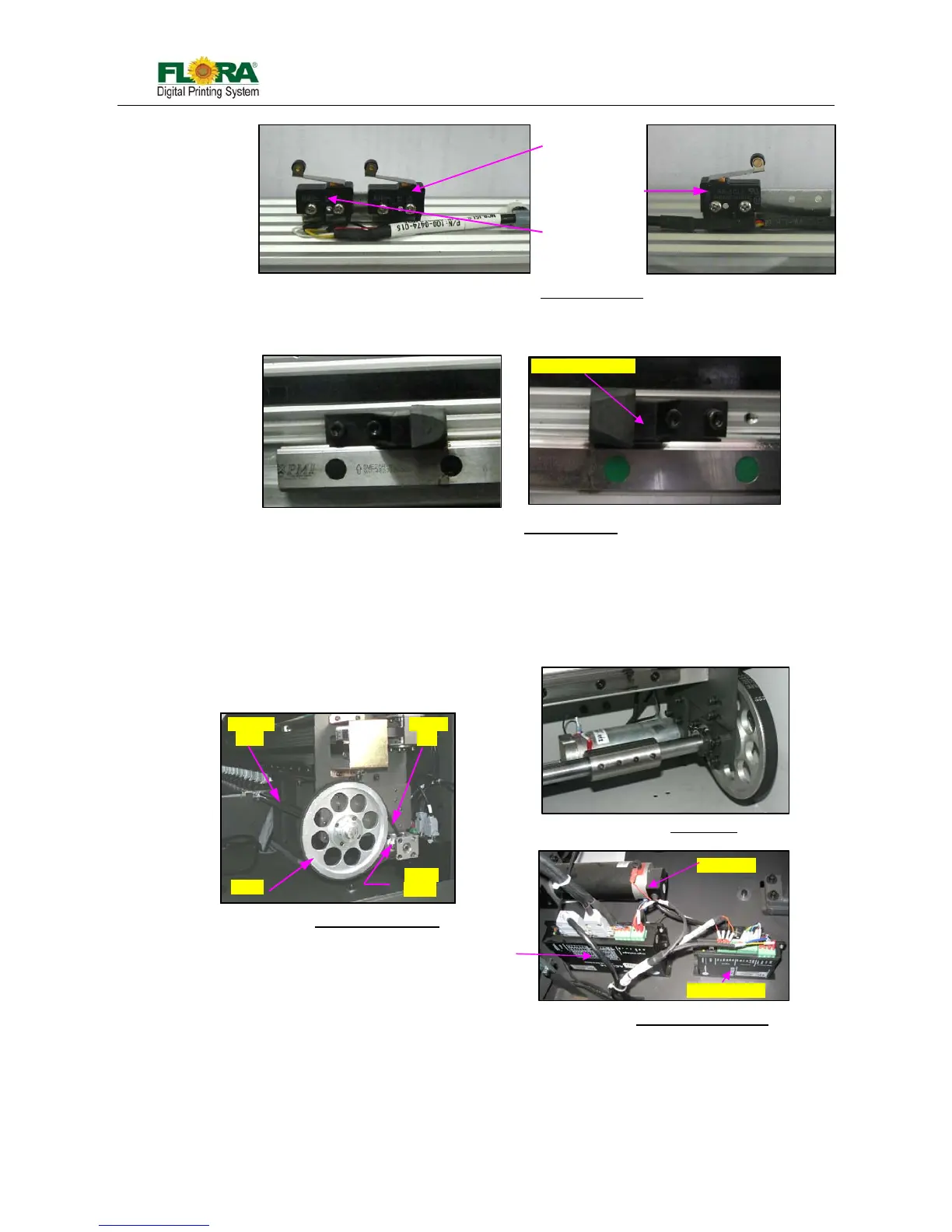

Fig. 4.4.1.3-1: Limited Switches
Pulle
y
Motor
Pulley
Feedin
g
Shaft
Timin
g
Belt
Fig. 4.4.2-1: Feeding Mechanical
Fig. 4.4.2-2: Front View
Fig. 4.4.2-3: Servo Driver & Motor
A
C Servo Drive
r
Y
-axis Motor
DC Servo Driver
Left Rubber Stopper
Fig. 4.4.1.3-2: Rubber Stopper
Ri
g
ht
Rubber Stopper
