FLORA LJ3208P - Servo Card （ 116-0385-022

Flora Digital Printing System
Model LJ320P
Copyright 2011@ Shenzhen Runtianzhi Image Technology Co.,Ltd. By Victor Xu
~22~

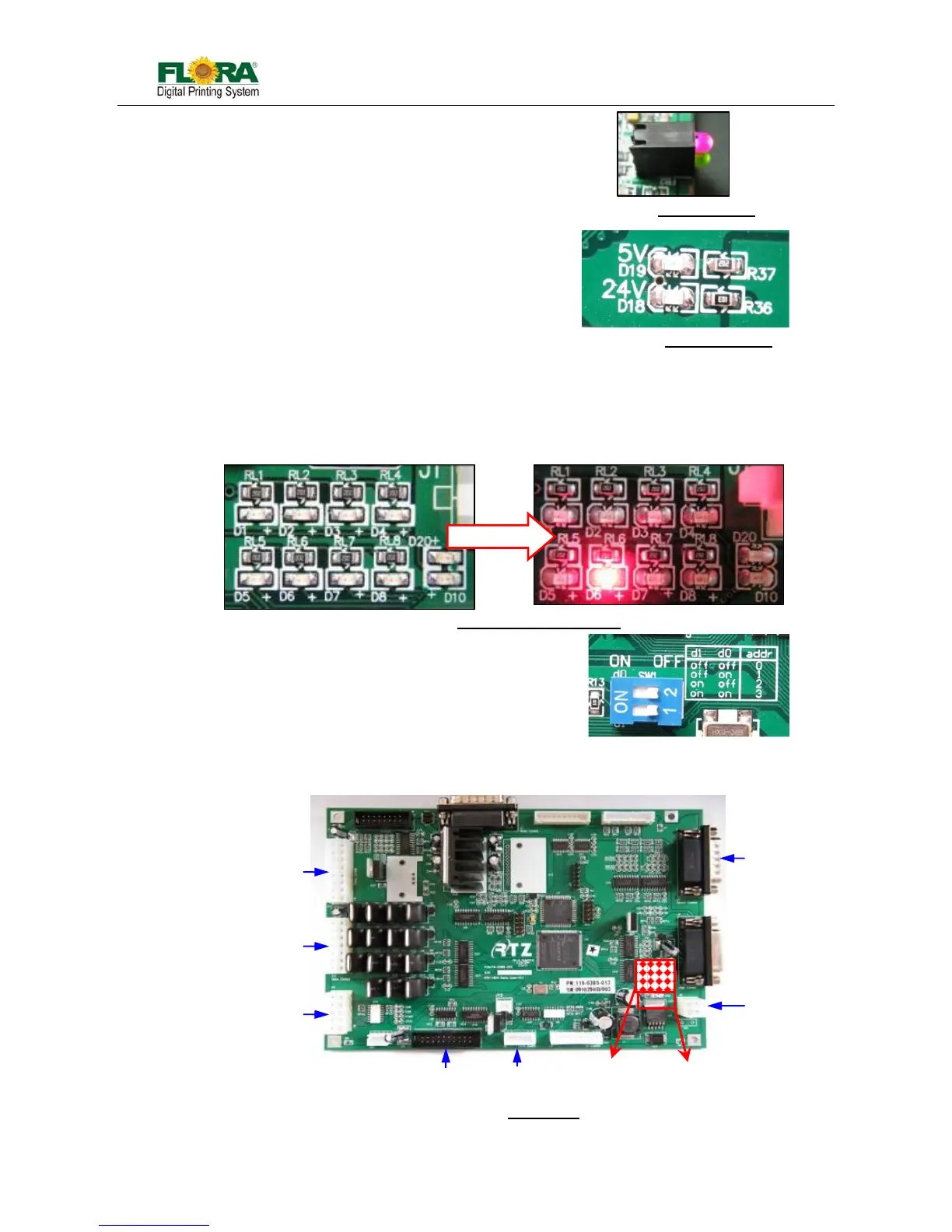

USB indicator:
Green Led: working indicator, normally on;
Red Led: Error indicator, normally off
Power indicator:
D18: 24V power indicator normal on
D19: 5V power indicator normal on
Communication indicator:
D1, D2, D3: null
D4: Hidem indicator Communication: on
D5: Print head board indicator Communication: on
D6: Y-axis indicator Y motor moving: on
D7: Servo Card indicator Communication: on
D8: X-axis indicator Y motor moving: on
D10: TX indicator Transmitting data: on
D20: RX indicator Receiving data: on
Dial Switch
D0=off; D1=off
4.3.3 Servo Card （ 116-0385-022 ）
This board serves as assistant functions control board.
 Control pump supply ink automatically
 Ink-supplying timeout warning，limited switch protection，error indication
Fig.4.3.2-4 Communication Indicators
Working
Air pump1#
buzze
r
Ink pump
Priming button
USB J10
DC24V
Limited
switch
USB J5
Power
indicator
Nixie
Tube
Fig.4.3.3-1 Servo Card
Fig.4.3.2-2 USB Indicators
Fig.4.3.2-3 Power Indicators
