Unaligned print head will affect ink composition a picture. So for every row print heads, the
first nozzle of every print head must be on the same coordinate at Y-axis. The gap between
two rows should be same with the gap between two nozzles. Print head installation must
ensure the print head is perpendicular to Y-axis, and in parallel with X-axis.
1. Highlight Y Align from test drop list, and send to print by click send print icon;
2. Y Align procedure should be as below:
K1
K2
K1
K2
K1
K2
K1
K2
K1
K2
K2
1
K1
256
①
K1
K2
②
③

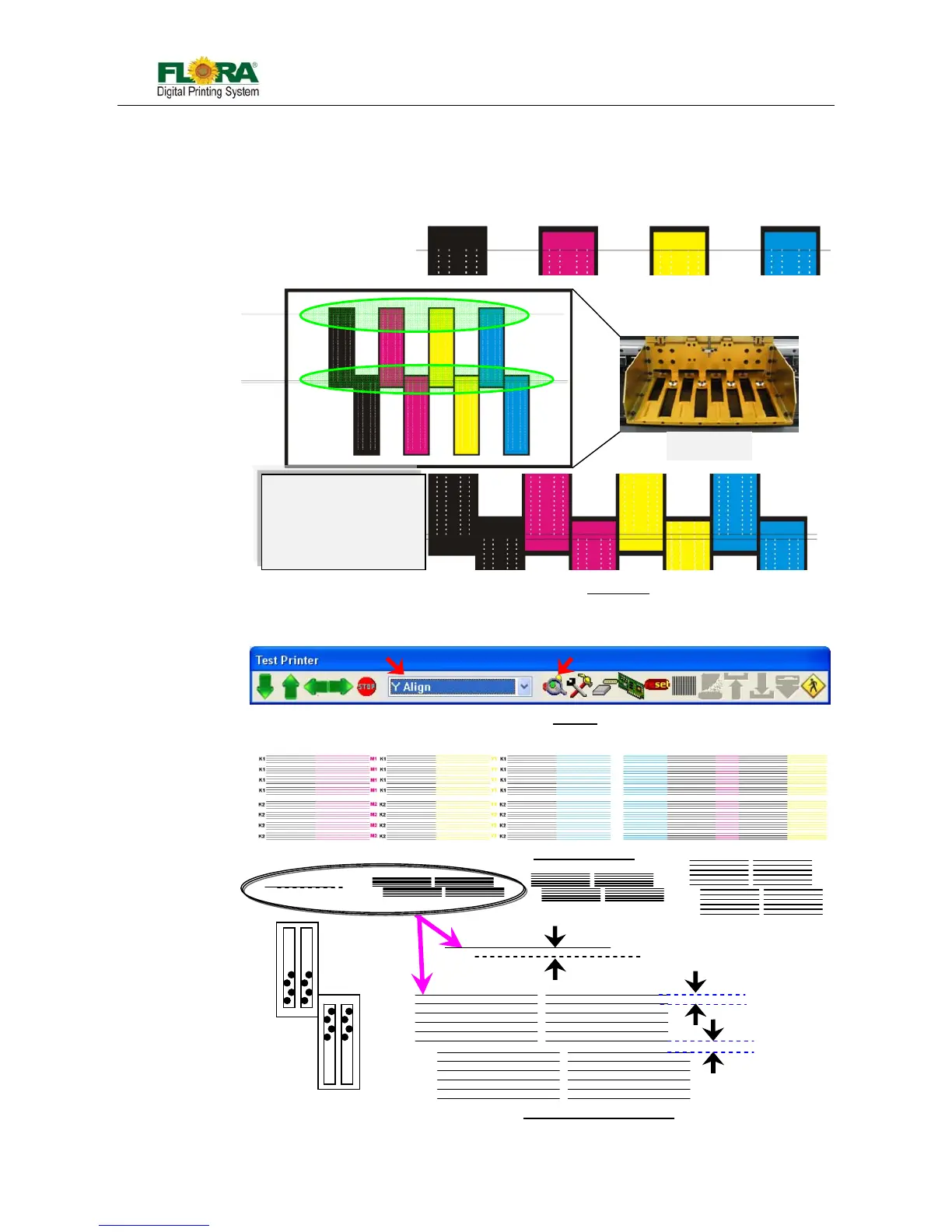

Fig.5.5.3-4 Illustration for Align K2
Fig.5.5.3-2 Y Align
Fig.5.5.3-1 PH align
The first nozzles should be in the same line
Carriage Asse.
The gap between nozzles of
two rows print heads should
be the same with the gap
between two neighbouring
nozzles
Fig.5.5.3-3 Y Align Drawing
