For Flora machine, we take K1 as the base to align the other print heads.
1. Highlight Right Align from test drop down list, and send print by click align color
icon. You will get prints as below.
2. All the print heads will take K1 as basic. The “0 position” of K1 print heads must be
aligned with “0 position” of all the other print heads. Because of the space problem,
I take M print head as example. K1 meets M1 at “- 4 position” (in green circle), M2
at “4 position”.

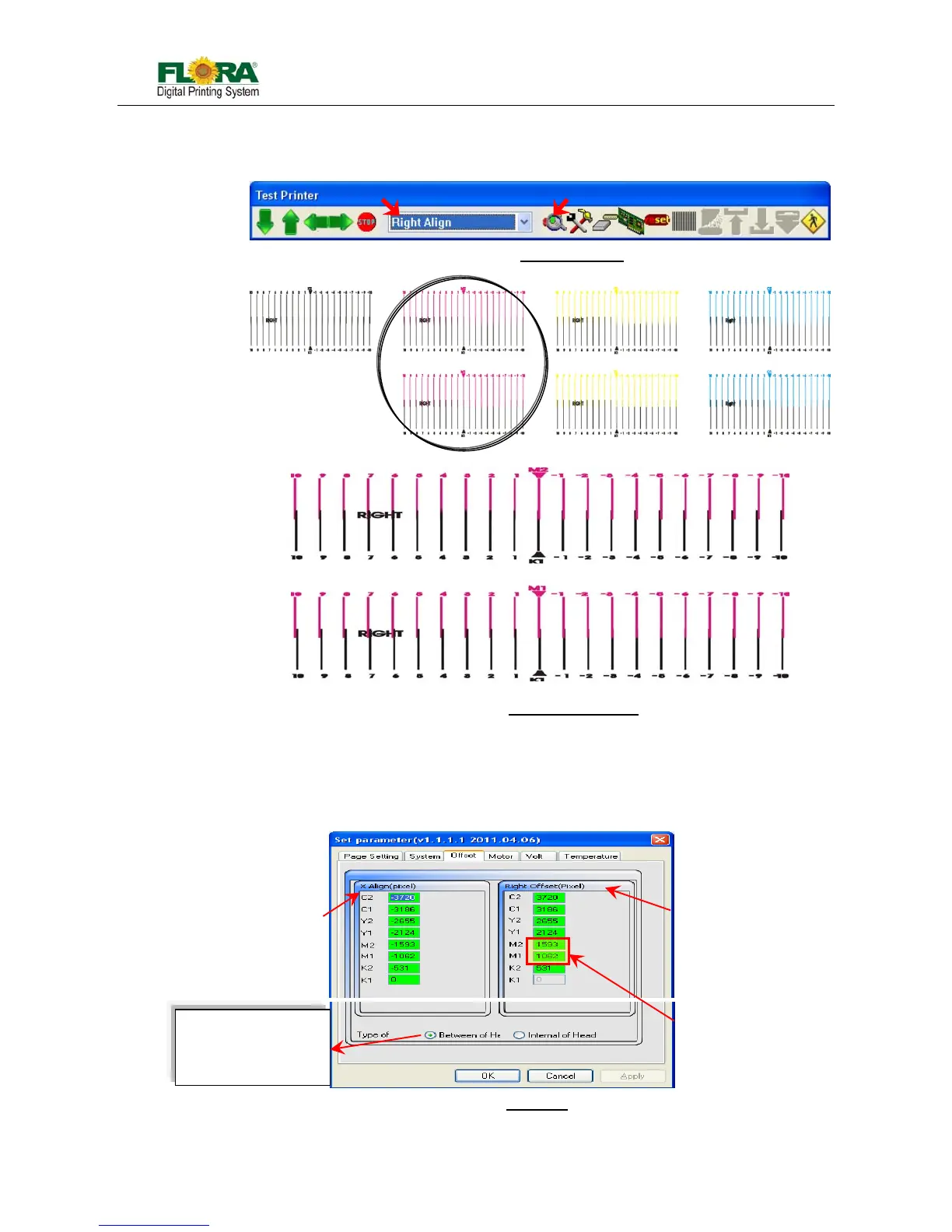

Fig.5.5.7-2 Send Right Align
Fig.5.5.7-3 Right Align Drawing
Internal Left Offset Column
Internal Left Offset Column
Change valve in this textbox
M1: 1062 – 4 = 1058
M2: 1593 + 4 = 1597
Tick this Internal of Head
Radio Button to open internal
offset tag
Fig.5.5.7-4 Offset Tag
