FLORA LJ3208P - Page 66

Flora Digital Printing System
Model LJ320P
Copyright 2011@ Shenzhen Runtianzhi Image Technology Co.,Ltd. By Victor Xu
~66~

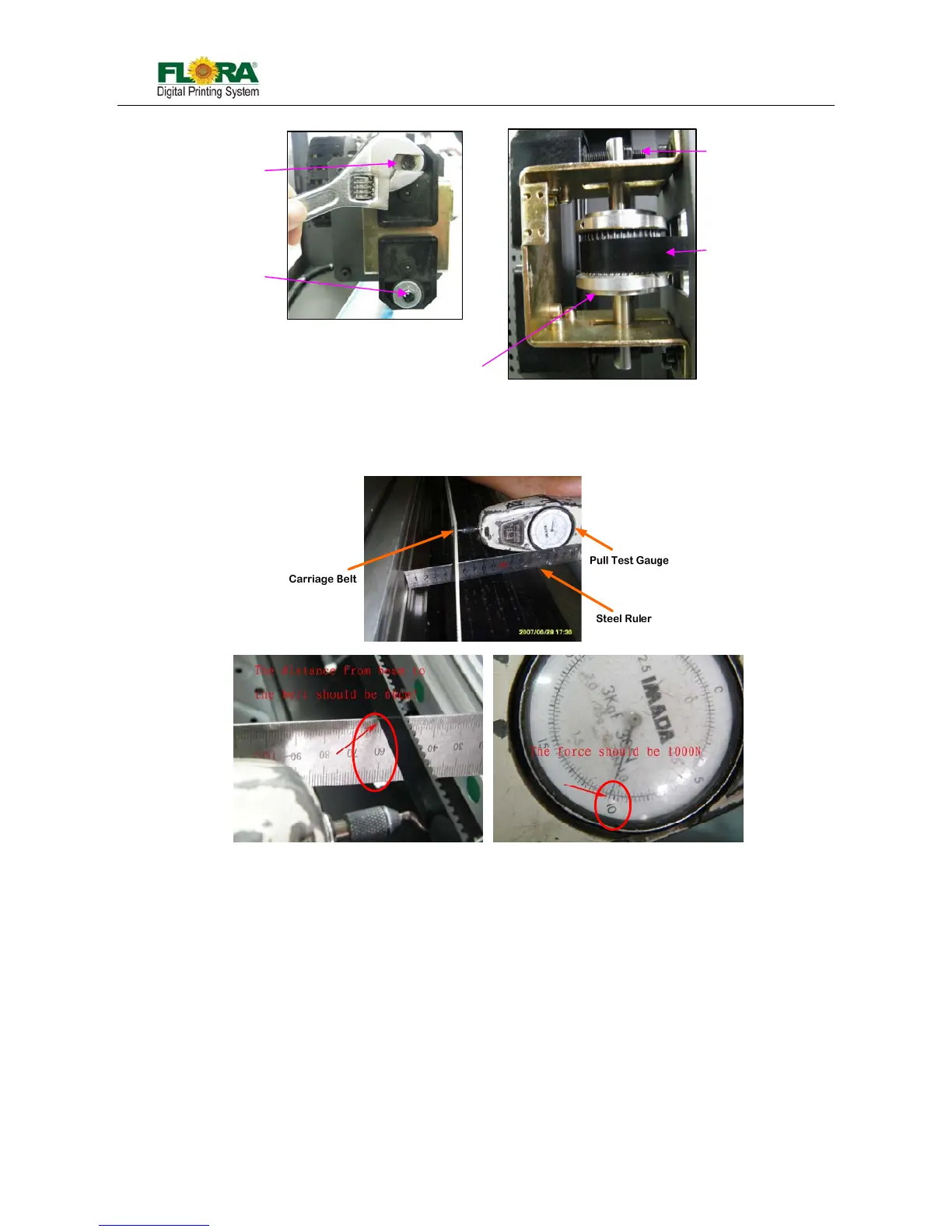

c) Measure the belt pull tension load at the middle of the rail with a distance of 60-70mm should be
1000g, using a pull test gage and a steel ruler.
Upper tension
ad
j
ustin
g
bolt
Lower tension
ad
j
ustin
g
bolt
Left View
Lock nut
The belt should sta
y
in the
middle of the pulley
Driven Pulle
y
Fig. 7.5-1 Carriage Tension Belt Assembly
Fig.7.5-2 Measuring Belt Tension using Pull Test Gaug
