- 11 -
3.2.2 Wiring of power
DANGER
Hazardous supply voltage can shock or cause death.
WARNING
Disconnect power before making connections.
WARNING
The AC and DC units have different components. Do not connect AC power to a DC monitor and vice
versa.
3.2.2.1 AC power
1. Remove the bottom cover (Figure 1 on page - 7 -).
2. Insert the power cable through the cable gland in the bottom of the enclosure.
3. Properly prepare each wire (
4. Figure 3 on page - 11 -).
5. Install the ground wire into the AC power terminal (Figure 4 on page - 11 -). Tighten the wire and then tug
gently to make sure the connection is tight.
6. Install the neutral and line wires into the AC power terminal as described in
7. Table 1. Tighten each wire and then tug gently to make sure the connection is tight.
8. Tighten the cable gland to secure the cord.
9. Seal any unused openings in the enclosure with cable gland plugs.
10. Install the bottom cover.
1 Strip 1 cm of insulation.
2 Seat insulation against connector with no bare wire
exposed.

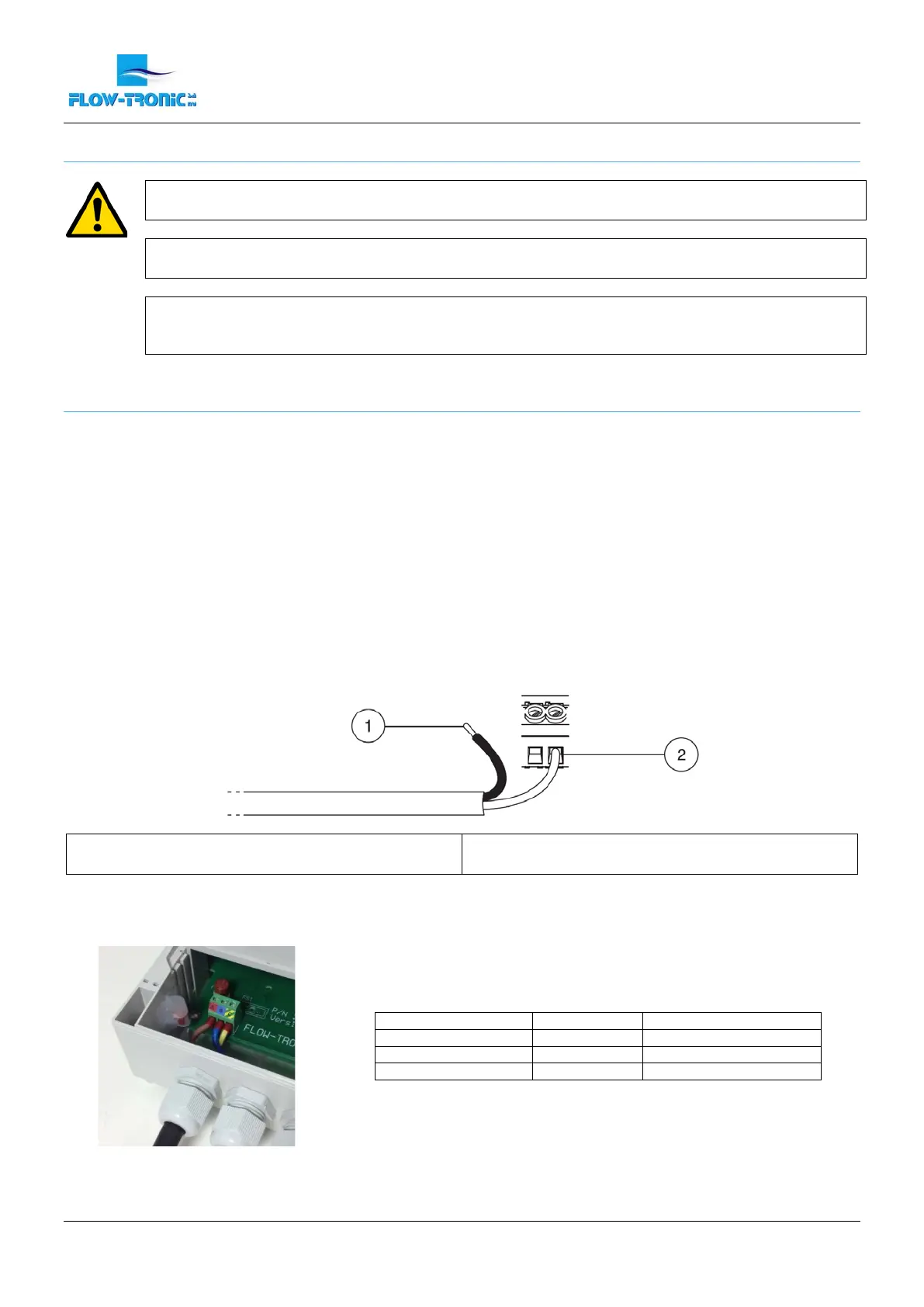

Figure 3: Wiring preparation and insertion
Figure 4: AC power wiring
Table 1: AC Wiring information
Once the power cable is connected to a power source, a status LED indicates if the IFQ Monitor is powered.
