3.2.3.1 RAVEN-EYE
®
or BELUGA
TM
sensor cable connections
1. Disconnect power to the IFQ Monitor.
2. Screw off the cover attachement screws (Figure 1 on page - 7 -) in order to access the connection
chamber.
3. Insert the cable(s) through the cable glands (Figure 1 on page - 7 -).
4. Install each wire into the terminal block (Figure 6) :
a. Connect the ground cable to terminal N° 5.
b. Connect the negative supply (terminal N° 2) and then the positive supply (terminal N°1).
c. Connect the RS485 cables in terminal N° 3 for the black cable and N° 4 for the white cable.
5. Tighten each wire and then tug gently to make sure the connection is tight.
6. Tighten the cable gland where the sensor cable goes through.
7. Install the connection chamber cover and screw the cover attachement screws back in.

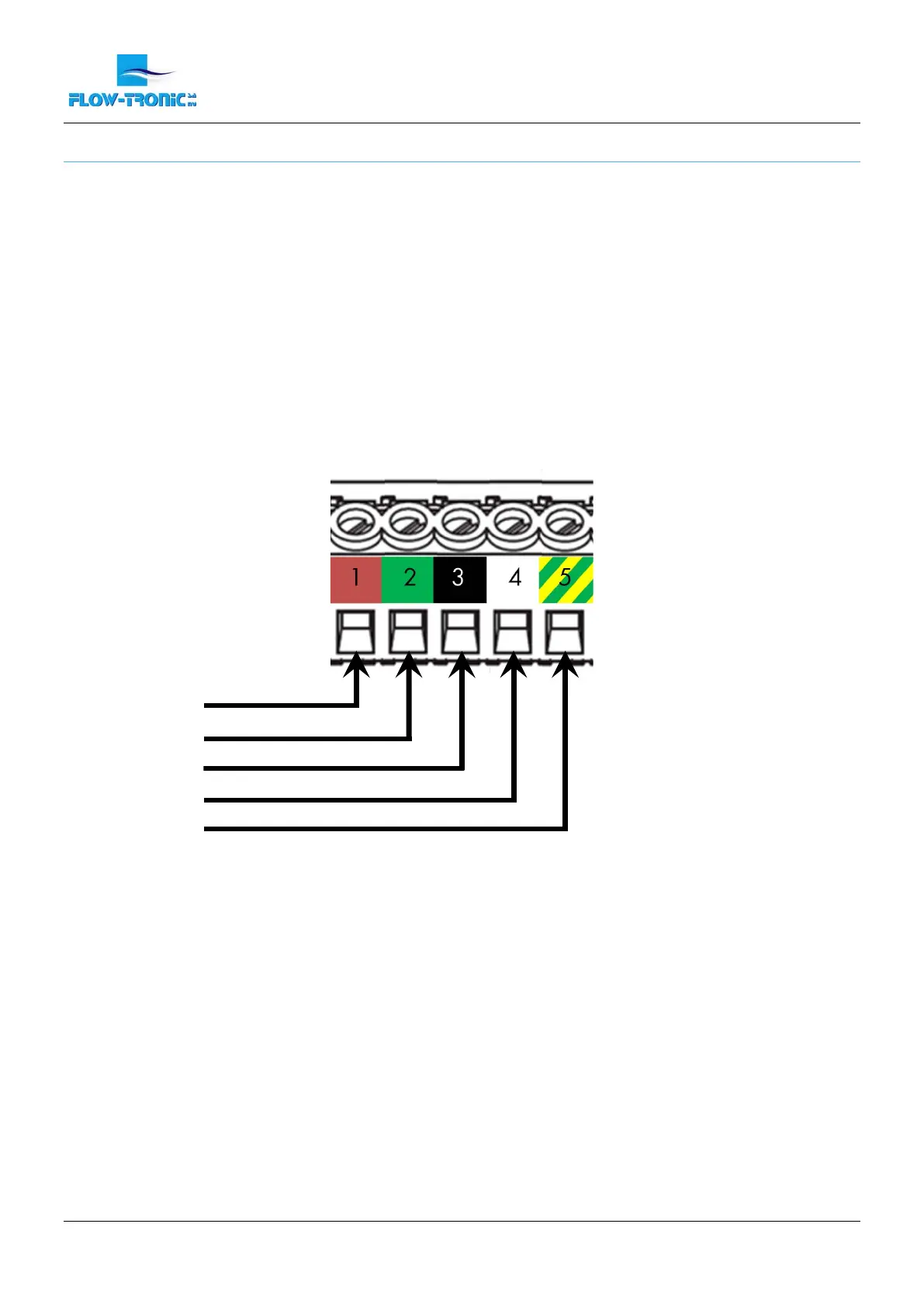

Figure 7: Connections for RAVEN-EYE
®
