- 23 -

4.3.1 Result screens

The result screen display 4 different values. The display automatically scrolls down to show the 4 values. The unit

of the 4 values can be configured in the “Main menu” choosing “Units”. For further information, please refer to

section 5.2.3 on page - 30 -.

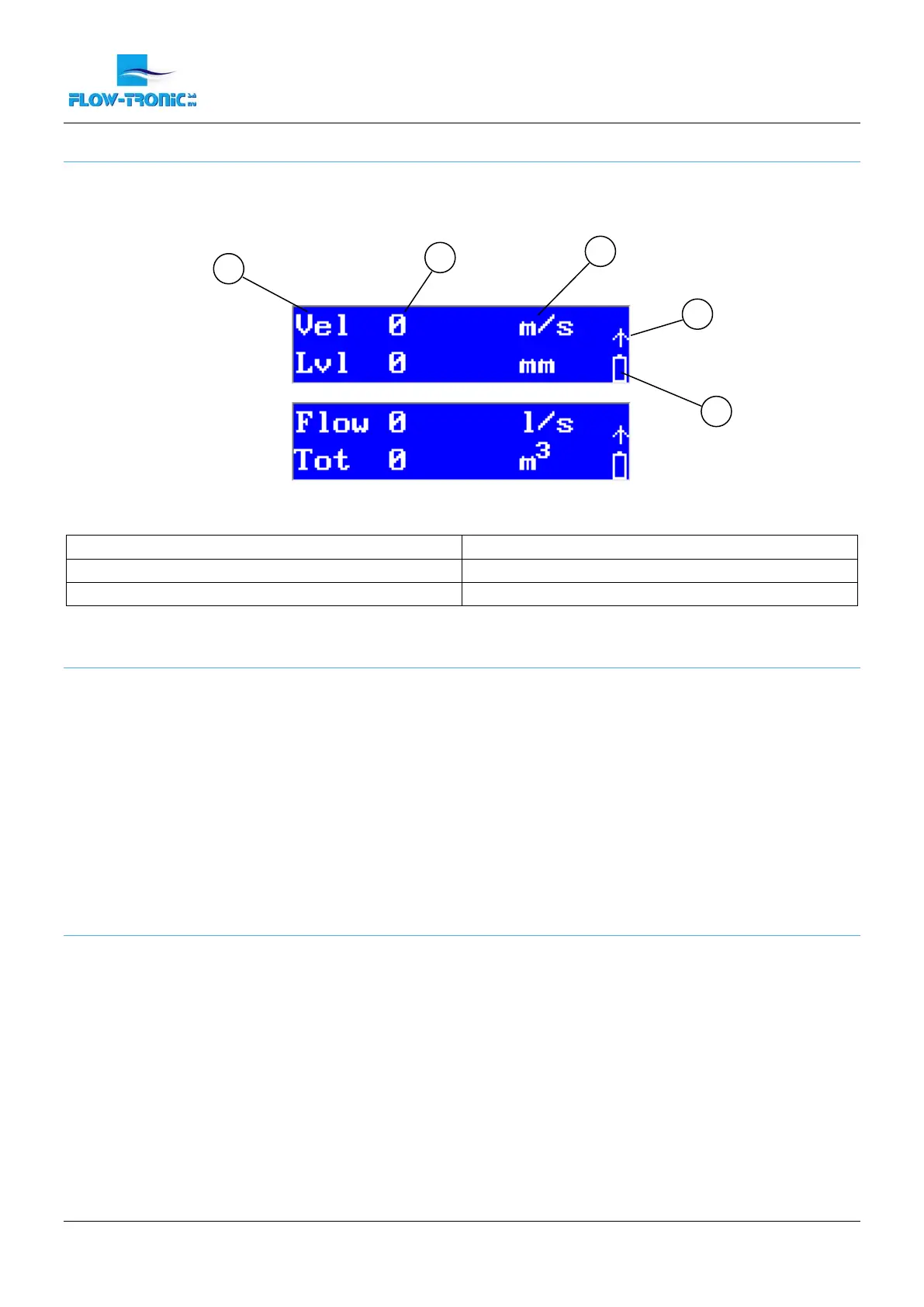

Figure 15: Result screens

1 Name of value 4 SIM/GPRS Information (not implemented yet)

2 Value 5 Internal Battery Level

Unit (configurable)

4.3.1.1 “M” indication

The IFQ Monitor can display a maximum of 7 characters. In order to have a better view, 6 characters are used for

numbers and one is a space between the numbers and the units.

If the value that needs to be displayed needs more than 6 characters, the IFQ adds a “k”, “M” or “G” behind the

numbers. “k” means kilo (only for a values between -999999 and -100000, “M” means Mega and “G” means Giga.

So if the value displayed is 1.062M m³ is effectively 1.062 Mega cubic meters = 1.062.000 m³

The maximum amount that can be displayed is 2.000.000.000 m³

4.3.2 Status LEDs

In general :

 The green LED A is used for the RAVEN-EYE

or BELUGA

and linked to the flow measured.

 The green LED B is not used (always off).

 The yellow LED C is used for the logger function.

 The red LED D is used for the alarm, combined with another LED, the alarms can be distinguished.

 The green and red LED E is used for the firmware itself and the internal battery.

 The yellow LED F is not used (always off).
