33
Logix
®
520MD+ and 510+ Digital Positioners FCD LGENIM0105-15-AQ – 05/16
flowserve.com
7.6 Remote Mount
The remote mount option can be used where excessive vibration or
environmental factors prevent the placement of a positioner directly
on the valve. Wire the remote mount board according to Table 16:
Remote Mount Card Connections. For more information, see Table 6:
Remote Mount Specifications on page 11.
Table 16: Remote Mount Card Connections
Terminal (See Figure 35:
Remote Mount Board)
A B C
From Remote Mount Red White Black

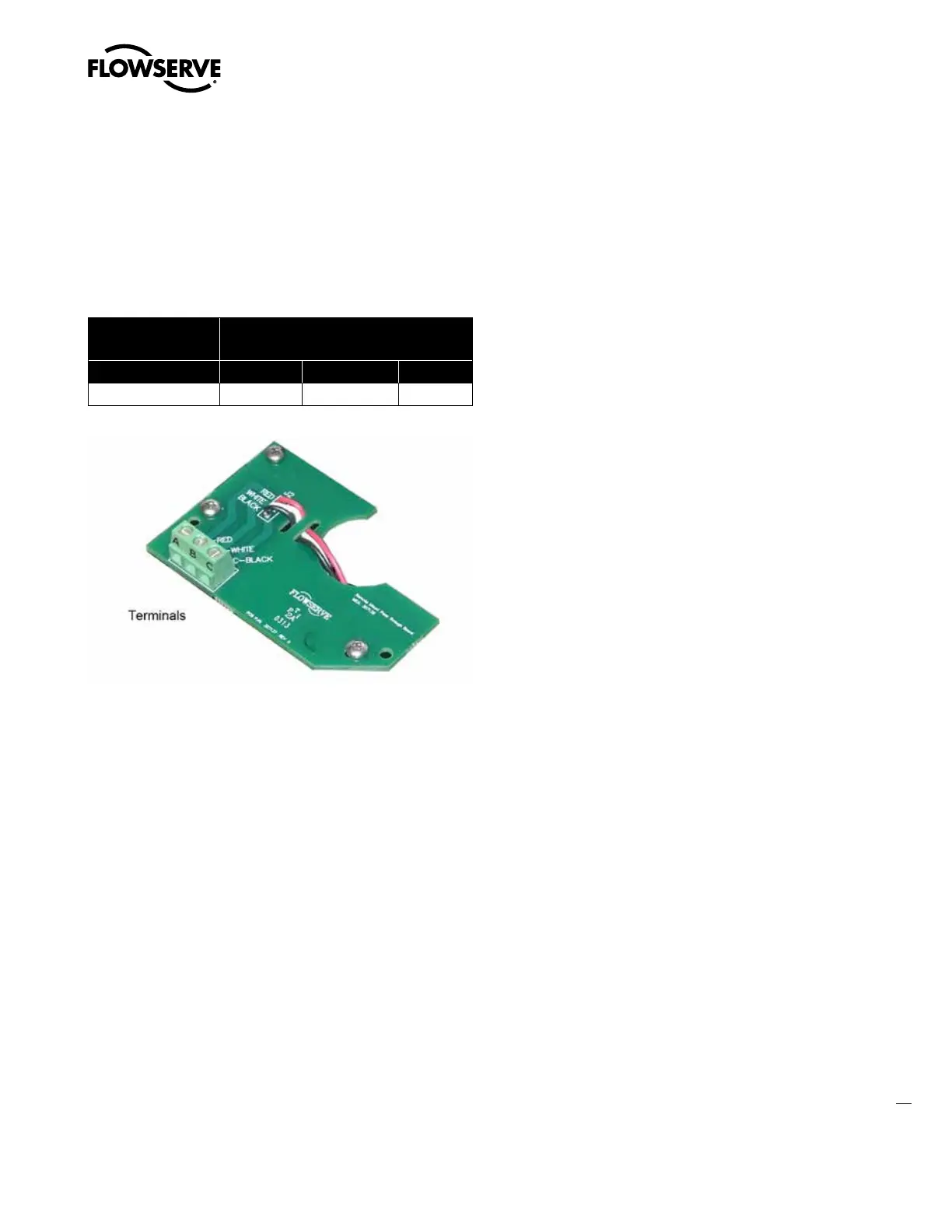

Figure 35: Remote Mount Board
7.7 Connections for Intrinsically Safe Operation
See section 3 HAZARDOUS AREA CERTIFICATIONS for entity parameters
and control drawing reference.
