Logix
®
520MD+ and 510+ Digital Positioners FCD LGENIM0105-15-AQ – 05/16
54
16 REMOTE MOUNT
16.1 Remote Mount Operation
The remote mount option can be used where excessive vibration or
environmental factors prevent the placement of a positioner directly
on the valve.
The remote mount unit consists of just the feedback mechanism
enclosed in a sturdy container. This assembly is mounted to the
valve/actuator assembly. The actuator tubing and feedback signals
are routed some distance to the positioner. Tubing is connected to
the positioner. The feedback signal wires are connected to a remote
mount board installed in the Logix 500+ positioner. See Figure 45:
Remote Mount Board.
Table 25: Remote Mount Cross-References
Information Section Page
Electronic Specifications 2.6 Remote Mount Specifications 11
Electronic Connections 7.6 Remote Mount 33
Ordering a Remote Mount
Board
21.2 Spare Parts Kits 80
Ordering a Remote Mount
Device
20.1 Positioner Dimensions 77
For more information on the remote mount option, see Logix Remote
Mount Option user instructions, FCD LGENIM0001.

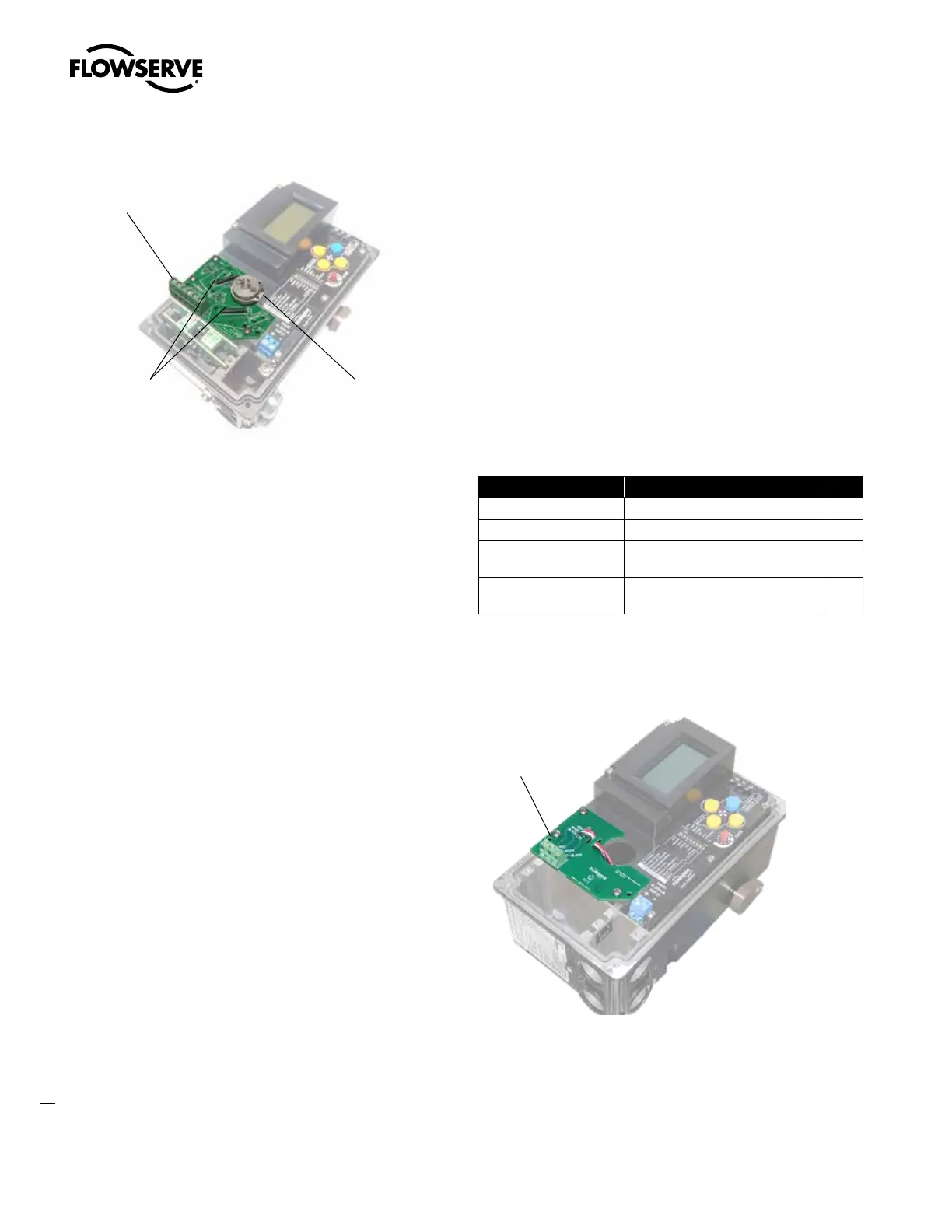

Figure 44: Limit Switches
Figure 45: Remote Mount Board
Terminals
VaneLimit Switches
Terminals
To Next Page
