Fluke 43B Application Guide

Fluke 43B
Applications Manual
6

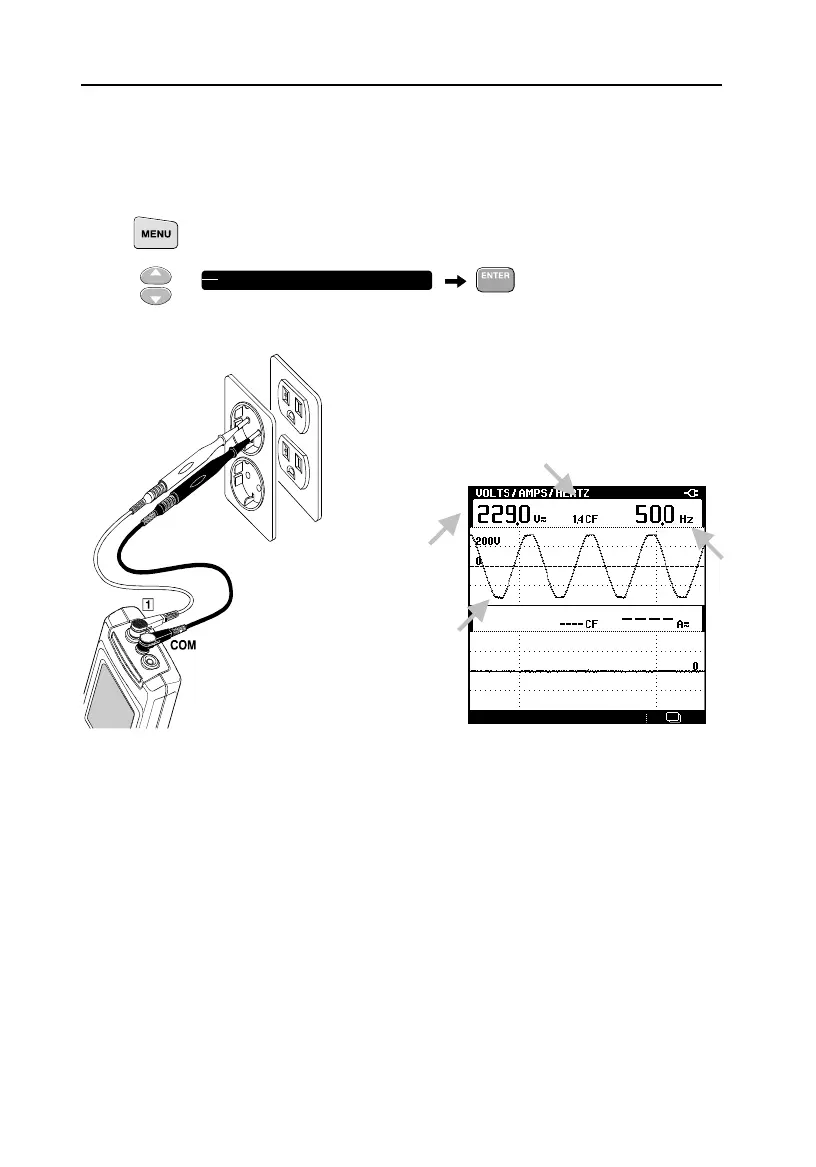

Measuring Line Voltage
Determine whether the voltage level, voltage waveform, and frequency from an
outlet are correct.
1
Open the main menu.
2
3
Make connections as shown below:
 The rms voltage should be close to the nominal voltage, for example 120V
or 230V.
 The waveform should be smooth and sinusoidal.
 The frequency should be close to 50 or 60 Hz.
 The Crest Factor CF is an indication of the amount of distortion. A high
Crest factor means high distortion.
Note
Nominal voltages and frequencies differ by country.
 VOLTS
/
AMPS
/
HERTZ





Fluke 43B Specifications

General

Category	Power Quality Analyzer
Interface	RS-232
Volts AC/DC	Yes
Ohms	Yes
Continuity	Yes
Diode Test	Yes
Capacitance	Yes
Harmonics Measurement	Up to 51st harmonic
Display	LCD
Battery Life	Approximately 6 hours
Weight	1.1 kg (2.4 lb)
Data Storage	Yes
Amps AC/DC	0.1 to 1000 A (with clamp)
Power Measurement	W, VA, VAR, PF
Dimensions	50 mm
Current Measurement Range	Via current clamp accessories (not built-in)
