MEASURING POWER IN 3-PHASE BALANCED
SYSTEMS.
The Fluke 43B can perform power measurements on 3-phase, 3-conductor
balanced power systems. The load must have approximately the same voltage
and current on all three phases, and must be wired in a wye or delta
configuration.
The balanced load makes it possible to calculate 3-phase power from one
current and one voltage channel. Three phase power measurements are
possible for the fundamental only.

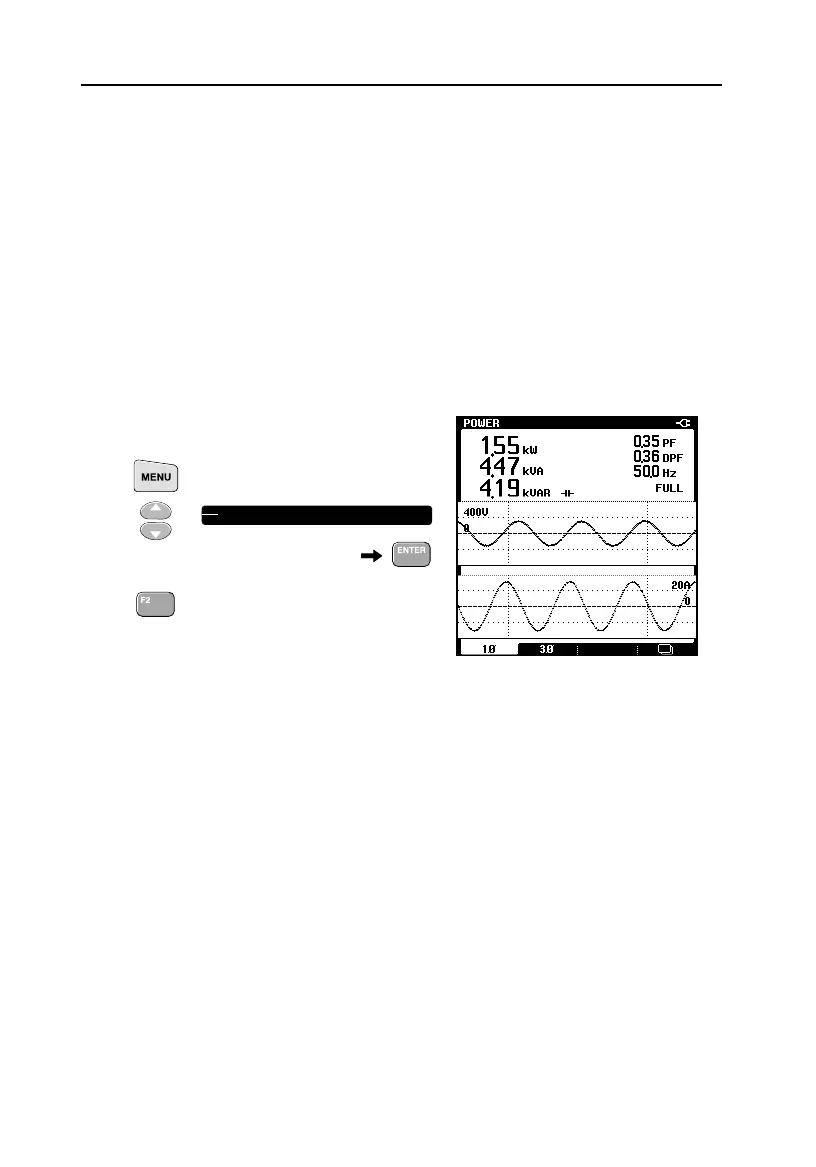

1 Open the main menu
2
3 Select 3-phase measurement
4 Make the connections as shown in the
help screen


 POWER

Fluke 43B Specifications

General

Category	Power Quality Analyzer
Interface	RS-232
Volts AC/DC	Yes
Ohms	Yes
Continuity	Yes
Diode Test	Yes
Capacitance	Yes
Harmonics Measurement	Up to 51st harmonic
Display	LCD
Battery Life	Approximately 6 hours
Weight	1.1 kg (2.4 lb)
Data Storage	Yes
Amps AC/DC	0.1 to 1000 A (with clamp)
Power Measurement	W, VA, VAR, PF
Dimensions	50 mm
Current Measurement Range	Via current clamp accessories (not built-in)
