Fluke 43B Application Guide

Handling Screens and Data
Creating Reports
6
71
Creating Reports

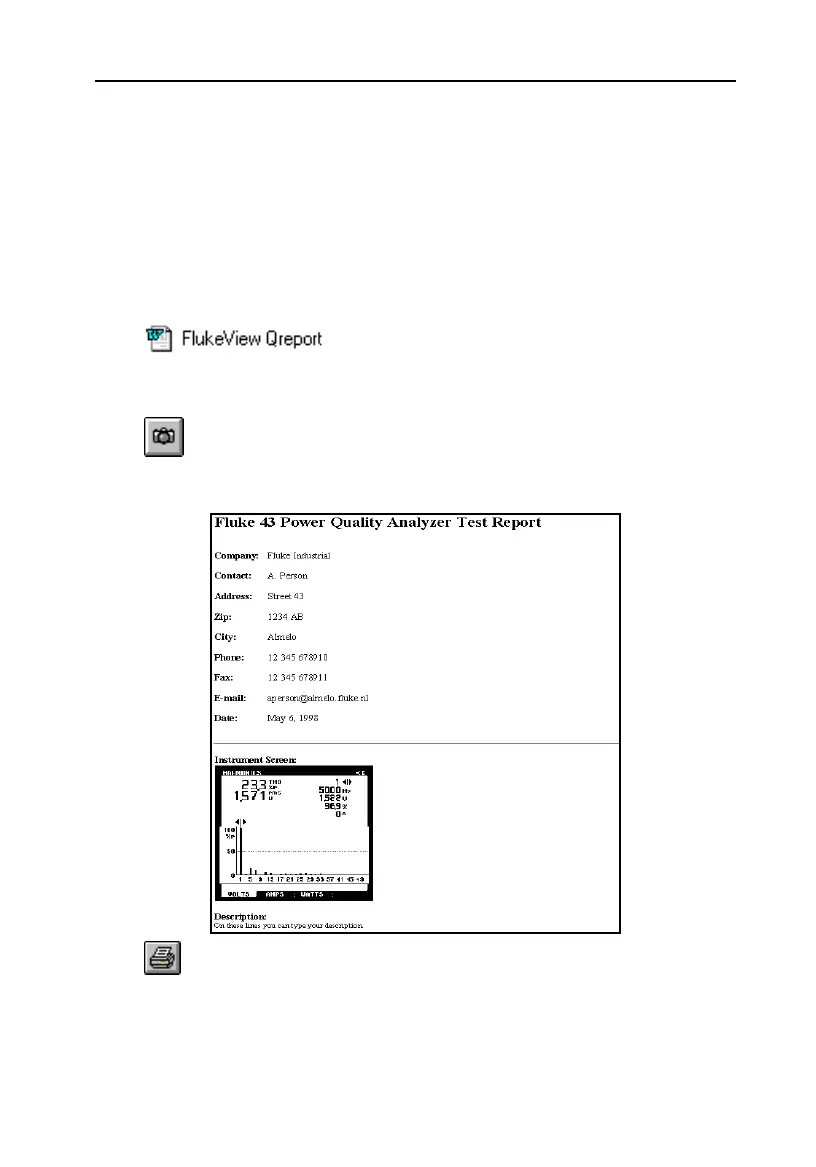

You can use actual screens or saved screens in Word documents, to create
reports.
First install the FlukeView software for the Power Quality Analyzer by running
the
SETUP procedure from the CD-ROM. Instructions on getting started are
given on the CD-ROM package. The FlukeView
SETUP procedure installs a
predefined report with the name
QREPORT.DOC.
1 Connect the Fluke 43B to the PC (see FlukeView Users Manual).
2 Open the document QREPORT.DOC.
3 Fill out the form by clicking on the grey fields and typing your text.
4
Click this button to insert the actual screen from the Fluke
43B into your report.
5 Type a description in the Description field.
6
Click this button to print your report.

Fluke 43B Specifications

General

Category	Power Quality Analyzer
Interface	RS-232
Volts AC/DC	Yes
Ohms	Yes
Continuity	Yes
Diode Test	Yes
Capacitance	Yes
Harmonics Measurement	Up to 51st harmonic
Display	LCD
Battery Life	Approximately 6 hours
Weight	1.1 kg (2.4 lb)
Data Storage	Yes
Amps AC/DC	0.1 to 1000 A (with clamp)
Power Measurement	W, VA, VAR, PF
Dimensions	50 mm
Current Measurement Range	Via current clamp accessories (not built-in)
