Fluke 43B

Applications Manual

Line Voltage and Current Simultaneously

Measuring Line Voltage and Current

Determine the influence of the load current on the voltage.

Open the main menu.

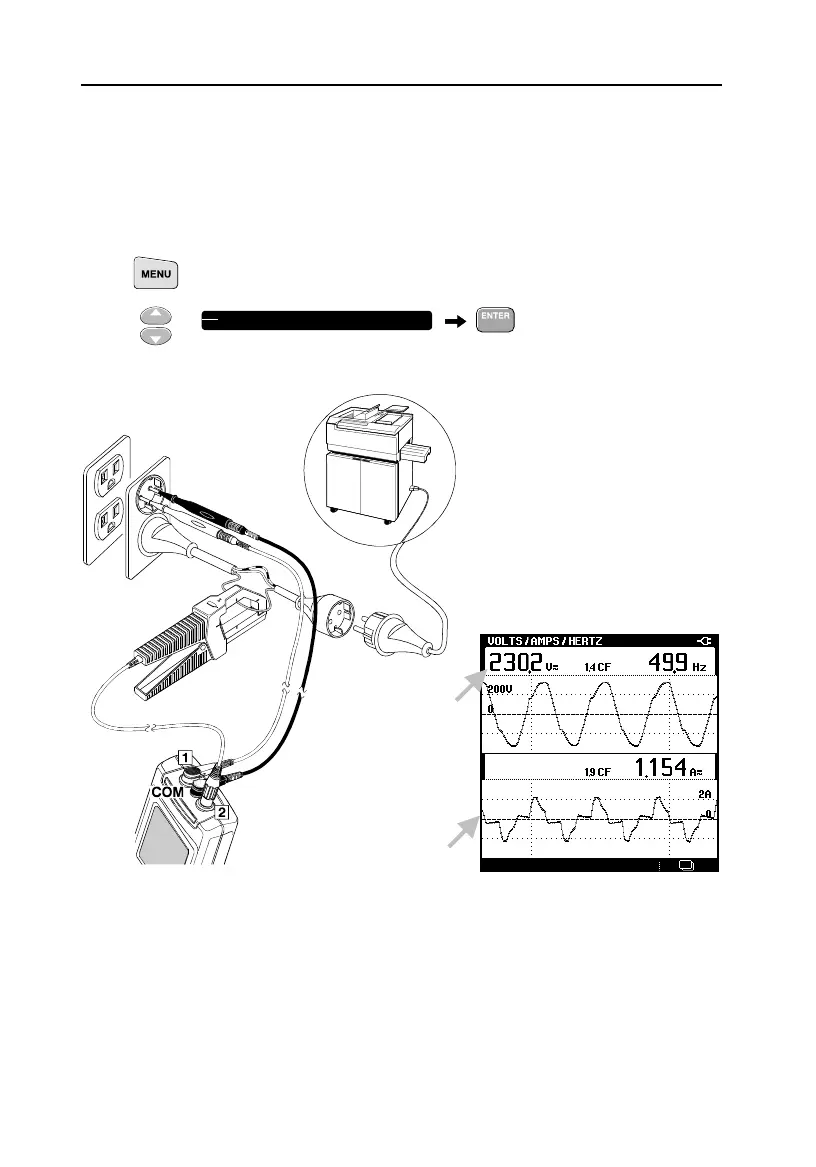

Make connections as shown below:

 The rms voltage should stay within reasonable limits.

 The current increases when the copier is warming up or making a copy.

Note

In stead of a copier, you can also use other loads of 1000W or more.

 VOLTS

AMPS

HERTZ




