Fluke 43B Application Guide

Basic Measurements
Line Voltage and Current Simultaneously
1
9
Recording Line Voltage and Current
By recording the voltage and current, you can establish a possible relation
between the two. For recording voltage and current, always use
SAGS & SWELLS. Basically it does the same as the RECORD key, but it can record
faster fluctuations. Use the
RECORD key for all other combinations of readings
you want to record.

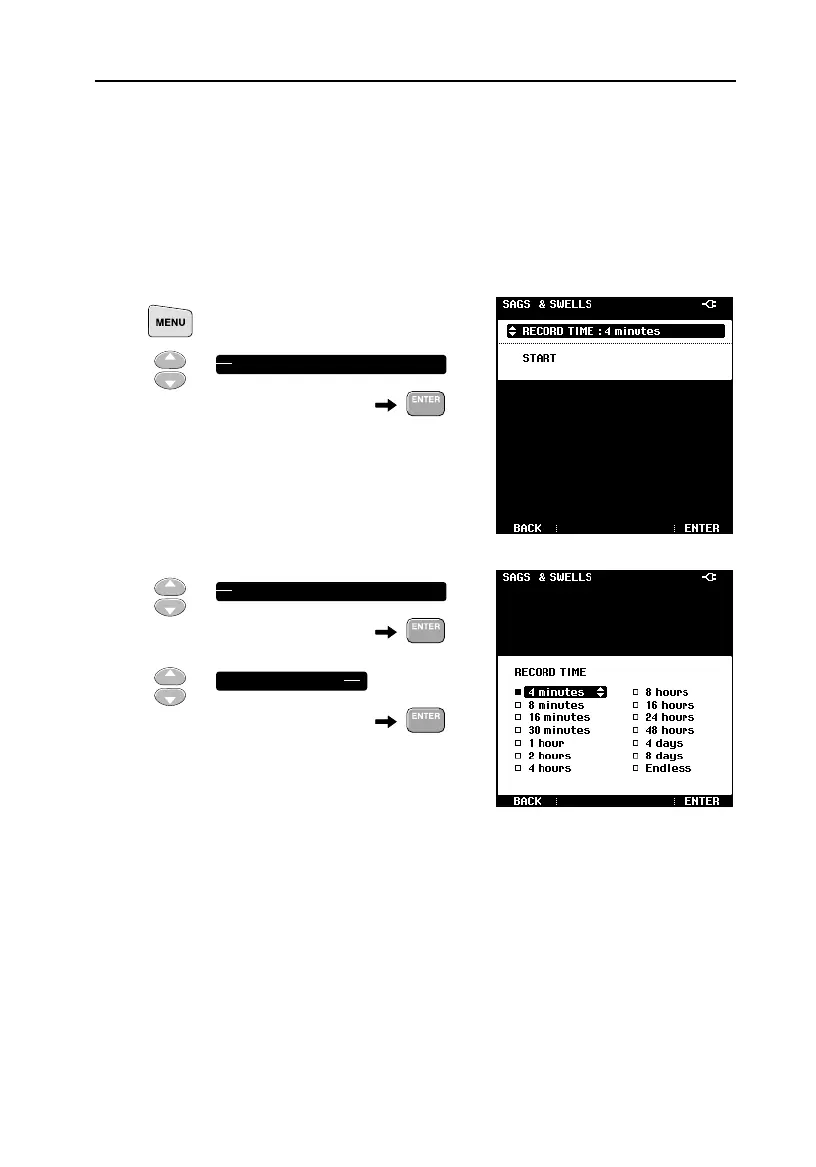

Use the copier again and proceed as follows:
1
Open the main menu.
2
Select the desired record time:
3
4
Note
Choosing shorter recording times makes it easier to see details of
events on the screen.


 SAGS & SWELLS
 RECORD TIME
4 minutes 

Fluke 43B Specifications

General

Category	Power Quality Analyzer
Interface	RS-232
Volts AC/DC	Yes
Ohms	Yes
Continuity	Yes
Diode Test	Yes
Capacitance	Yes
Harmonics Measurement	Up to 51st harmonic
Display	LCD
Battery Life	Approximately 6 hours
Weight	1.1 kg (2.4 lb)
Data Storage	Yes
Amps AC/DC	0.1 to 1000 A (with clamp)
Power Measurement	W, VA, VAR, PF
Dimensions	50 mm
Current Measurement Range	Via current clamp accessories (not built-in)
