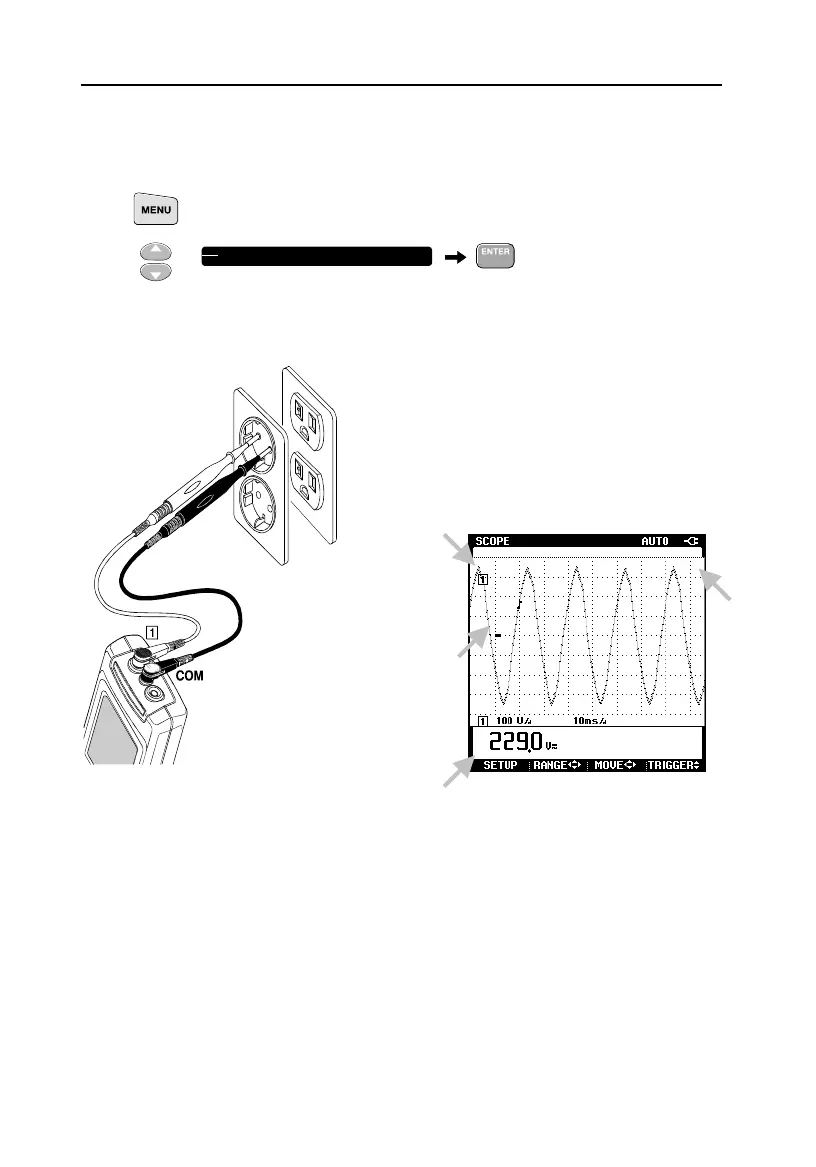

Basic One Channel Measurement.
Proceed as follows:
1
Press MENU twice to open the main menu.
2
3
Make the connections as shown below:
 The rms voltage readout should be close to the nominal line voltage, for
example 120V or 230V.
 The waveform should be smooth, sinusoidal and in the vertical middle of
the screen.
 Fluke 43B is in the Auto mode. This function optimizes the position, range,
time base, and triggering and assures a stable display on nearly all
waveforms.
 The trace identifier [1] is visible on left of the waveform area. The ground
marker icon (-) identifies the ground level of the waveform.
 SCOPE





Fluke 43B Specifications

General

Category	Power Quality Analyzer
Interface	RS-232
Volts AC/DC	Yes
Ohms	Yes
Continuity	Yes
Diode Test	Yes
Capacitance	Yes
Harmonics Measurement	Up to 51st harmonic
Display	LCD
Battery Life	Approximately 6 hours
Weight	1.1 kg (2.4 lb)
Data Storage	Yes
Amps AC/DC	0.1 to 1000 A (with clamp)
Power Measurement	W, VA, VAR, PF
Dimensions	50 mm
Current Measurement Range	Via current clamp accessories (not built-in)
