Recording Harmonics over Time
You can use the recording capabilities of FlukeView software to record
harmonics over time. This allows you to analyze the behavior of your
installation over an extended period of time. For example recording current
harmonics over 24 hours will give insight in load variations on your system.
1
Setup the Fluke 43B for measuring current harmonics.
2
Connect the Fluke 43B to the PC (See FlukeView Users
Manual).
3
Run FlukeView.
4

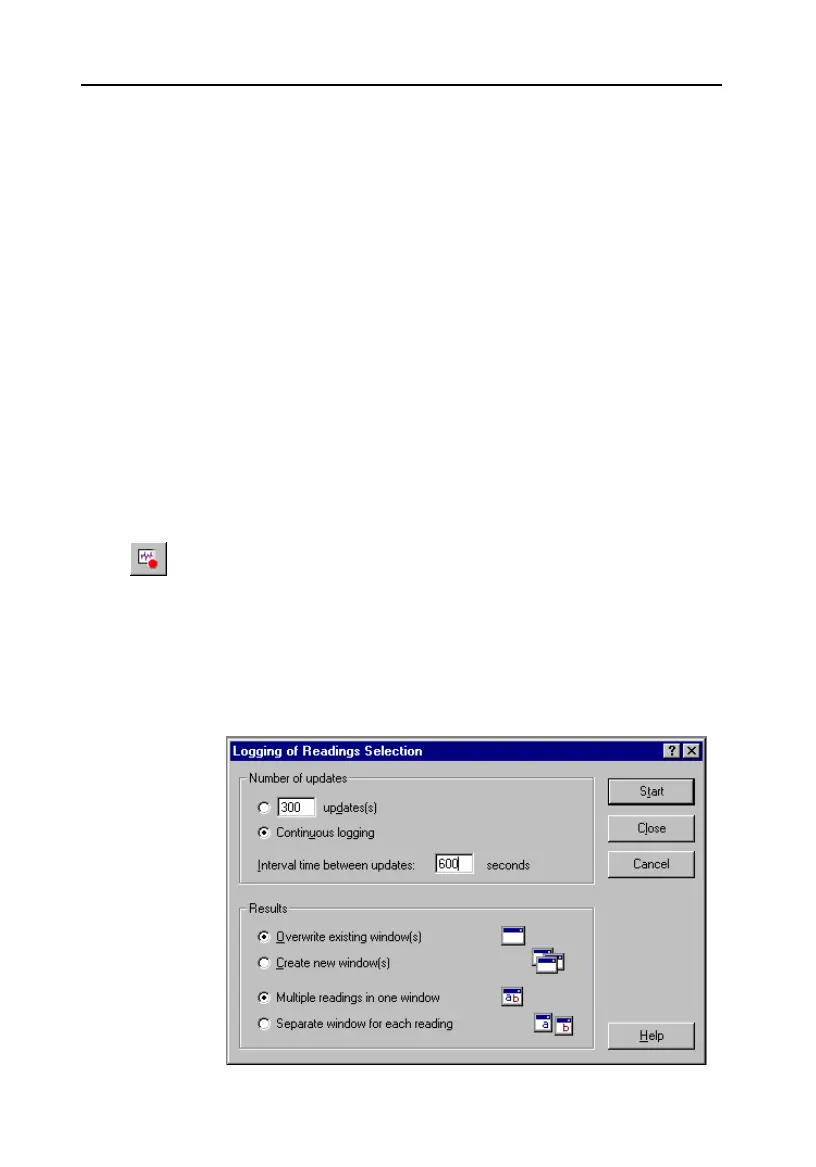

Click this button to open the Logging of Readings Selection.
5
In the selection menu you can enter the number of updates
and interval time between each update.
