Fluke 43B Application Guide

Fluke 43B
Applications Manual
48
Delta connection or floating systems
For delta systems, the procedure is more complex. Use the following
procedure to calculate the Power Factor for a 3-phase grounded delta
connected motor or for floating sources.
1 Open the main menu.
2
3

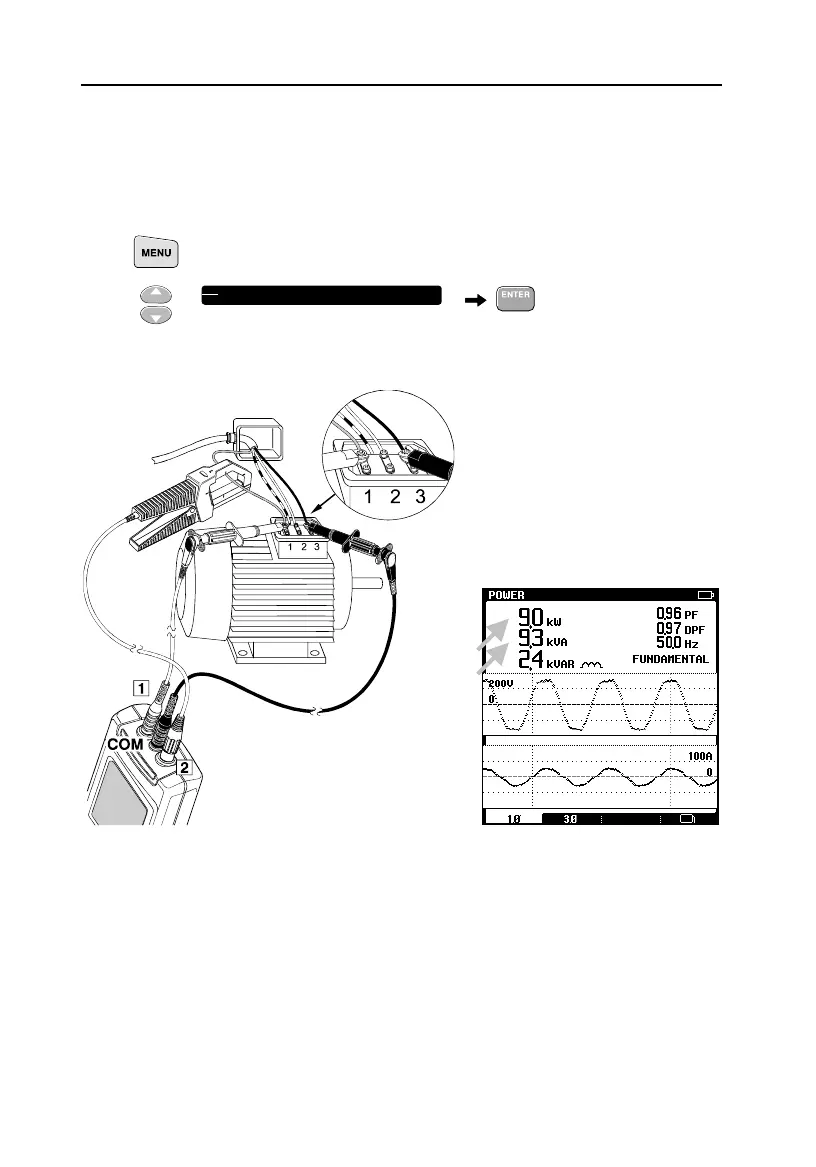

Make connections to phase 1 and 3 as shown below. Run the motor
under normal full load (power factor decreases at less than full load).
 Write down the true power reading (kW
1
) from phase 1 to 3.
 Write down the apparent power reading (kVA).


 POWER



Fluke 43B Specifications

General

Category	Power Quality Analyzer
Interface	RS-232
Volts AC/DC	Yes
Ohms	Yes
Continuity	Yes
Diode Test	Yes
Capacitance	Yes
Harmonics Measurement	Up to 51st harmonic
Display	LCD
Battery Life	Approximately 6 hours
Weight	1.1 kg (2.4 lb)
Data Storage	Yes
Amps AC/DC	0.1 to 1000 A (with clamp)
Power Measurement	W, VA, VAR, PF
Dimensions	50 mm
Current Measurement Range	Via current clamp accessories (not built-in)
