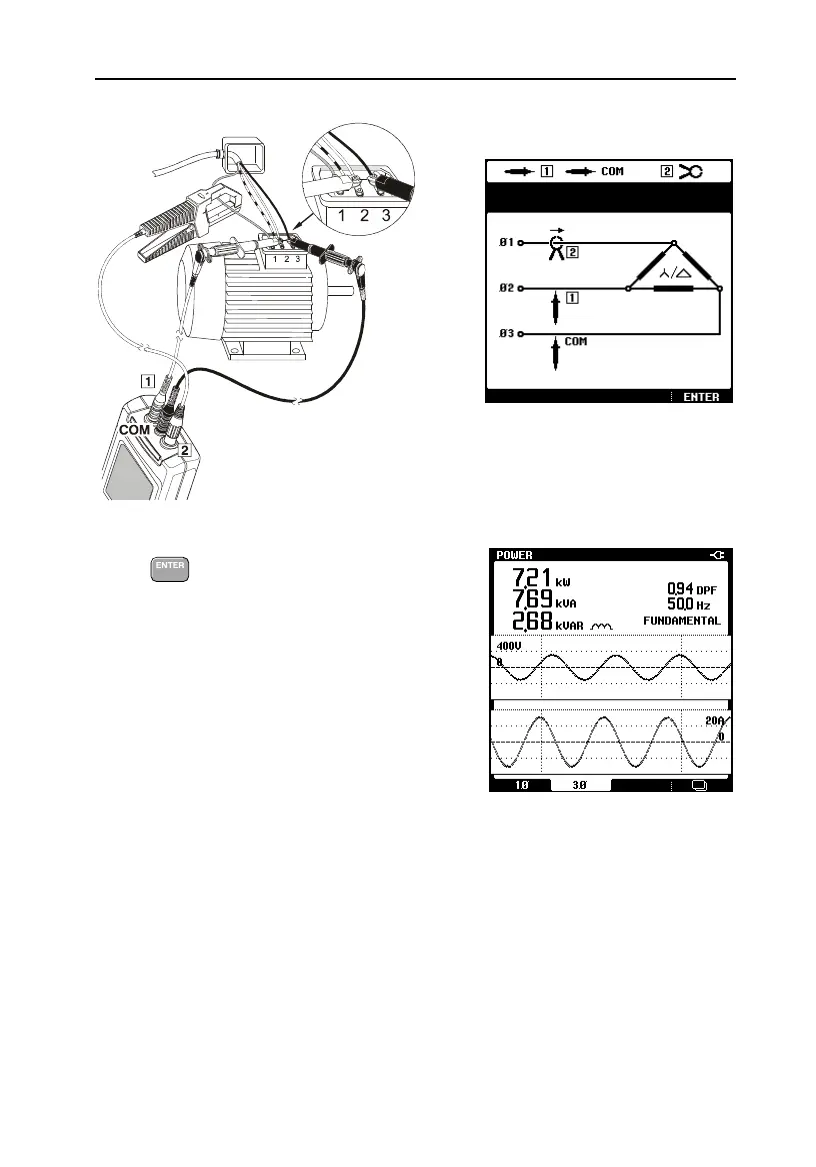

Motor Loads

Induction Motors

5 Press ENTER to return to the

main menu

The voltage and current waveforms are displayed with a phase shift of 90°.

This is due to the fact that voltage and current are measured in different

phases. This phase shift is automatically corrected for the readings.
