Fluke 43B Application Guide

Fluke 43B
Applications Manual
18

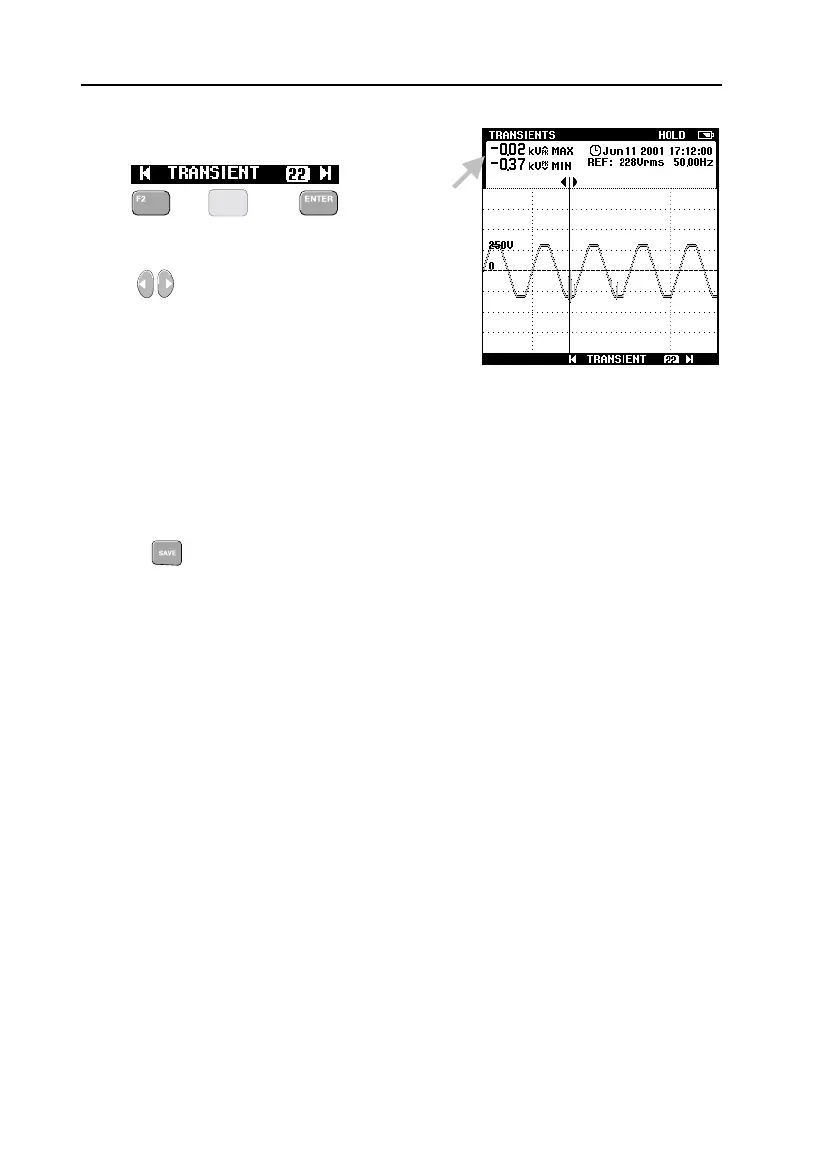

You can now browse through the screens
which contain transients:
8
Choose a screen you want to analyze.
9 Move the cursor to a transient.
 Observe the measured maximum or minimum peak voltage.
If the peak voltage reading indicates OL (Over Load), repeat the
measurement at a higher value for
VOLTAGE CHANGE.
10
Press SAVE to store the data of up to 20 transient waveforms
for later analyzing.


Fluke 43B Specifications

General

Category	Power Quality Analyzer
Interface	RS-232
Volts AC/DC	Yes
Ohms	Yes
Continuity	Yes
Diode Test	Yes
Capacitance	Yes
Harmonics Measurement	Up to 51st harmonic
Display	LCD
Battery Life	Approximately 6 hours
Weight	1.1 kg (2.4 lb)
Data Storage	Yes
Amps AC/DC	0.1 to 1000 A (with clamp)
Power Measurement	W, VA, VAR, PF
Dimensions	50 mm
Current Measurement Range	Via current clamp accessories (not built-in)
