Fluke 43B Application Guide

Fluke 43B
Applications Manual
20
6

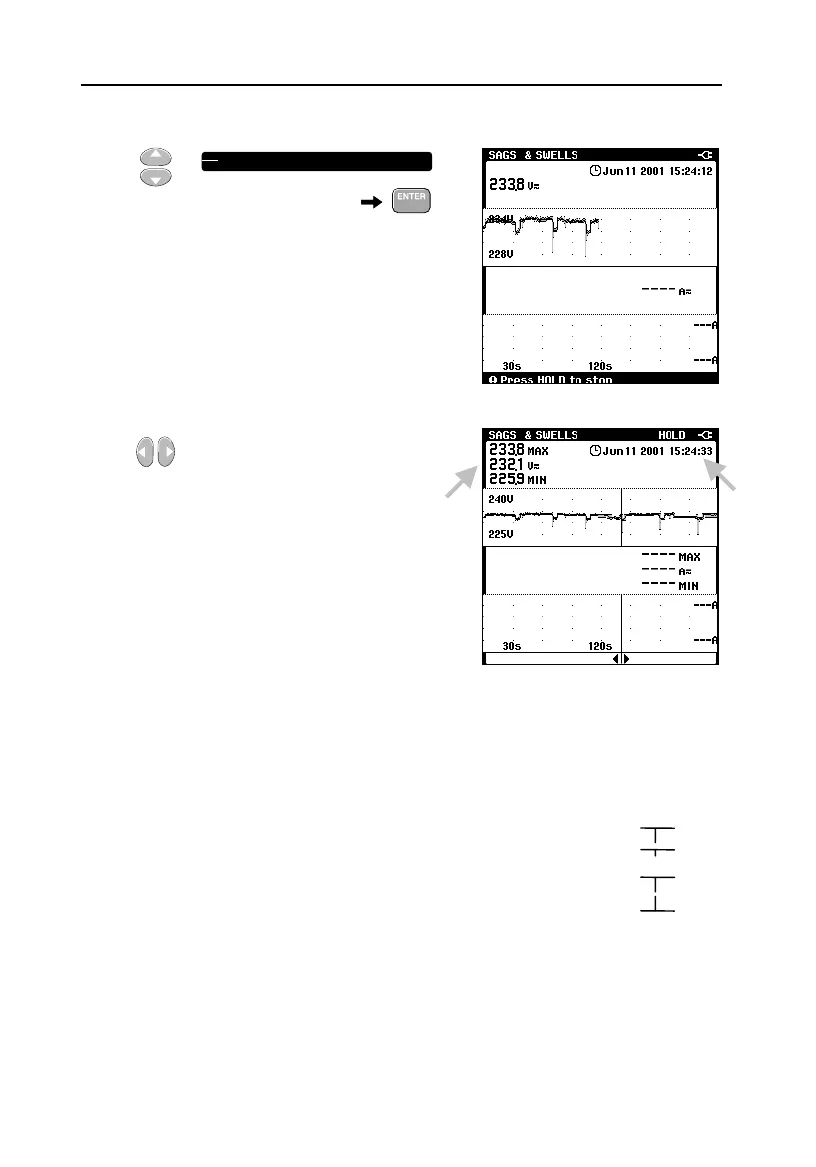

The Fluke 43B starts recording sags and
swells.
Wait for 4 minutes... or press the
HOLD key to
stop the recording.
7 Move the cursor over a sag or
swell.
 Observe the rms voltage of the sag or swell: in case of a sag, read the
minimum voltage, in case of a swell the maximum voltage.
 Observe the time when it occurred.
Determine where the sag or swell came from:
When the voltage decreases and the current does not change
or only slightly, the source of the problem is upstream.
V
A
When the voltage decreases while the current increases, there
is some load that causes the voltage to drop. The source of the
problem is downstream.
V
A
Tip
If you find sags or swells, search for equipment which may cause
them, such as large motor startups, welders, etc.


 START



Fluke 43B Specifications

General

Category	Power Quality Analyzer
Interface	RS-232
Volts AC/DC	Yes
Ohms	Yes
Continuity	Yes
Diode Test	Yes
Capacitance	Yes
Harmonics Measurement	Up to 51st harmonic
Display	LCD
Battery Life	Approximately 6 hours
Weight	1.1 kg (2.4 lb)
Data Storage	Yes
Amps AC/DC	0.1 to 1000 A (with clamp)
Power Measurement	W, VA, VAR, PF
Dimensions	50 mm
Current Measurement Range	Via current clamp accessories (not built-in)
