Fluke 43B Application Guide

Receptacle Branch Circuits
Measuring the Load on a Transformer
2
27
Use the power adapter to prevent automatic
shutdown during recording.
8

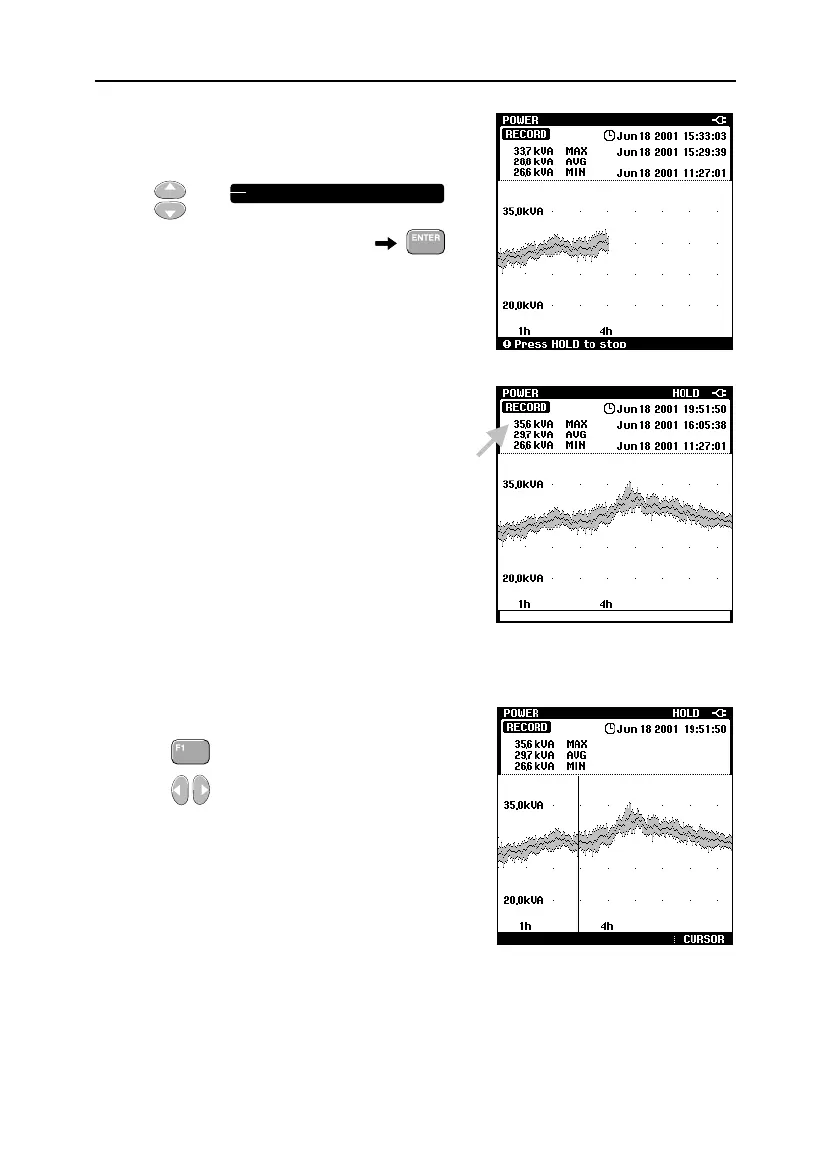

The Fluke 43B starts recording the kVA
reading.
Wait for 8 hours... or press the
HOLD key to
stop the recording.
 Look for high kVA-readings during the day.
9 Select CURSOR
10
Position the cursor on the
event of interest in order to
get measurements from the
corresponding time.
 START


Fluke 43B Specifications

General

Category	Power Quality Analyzer
Interface	RS-232
Volts AC/DC	Yes
Ohms	Yes
Continuity	Yes
Diode Test	Yes
Capacitance	Yes
Harmonics Measurement	Up to 51st harmonic
Display	LCD
Battery Life	Approximately 6 hours
Weight	1.1 kg (2.4 lb)
Data Storage	Yes
Amps AC/DC	0.1 to 1000 A (with clamp)
Power Measurement	W, VA, VAR, PF
Dimensions	50 mm
Current Measurement Range	Via current clamp accessories (not built-in)
