Fluke 43B Application Guide

Fluke 43B
Applications Manual
60

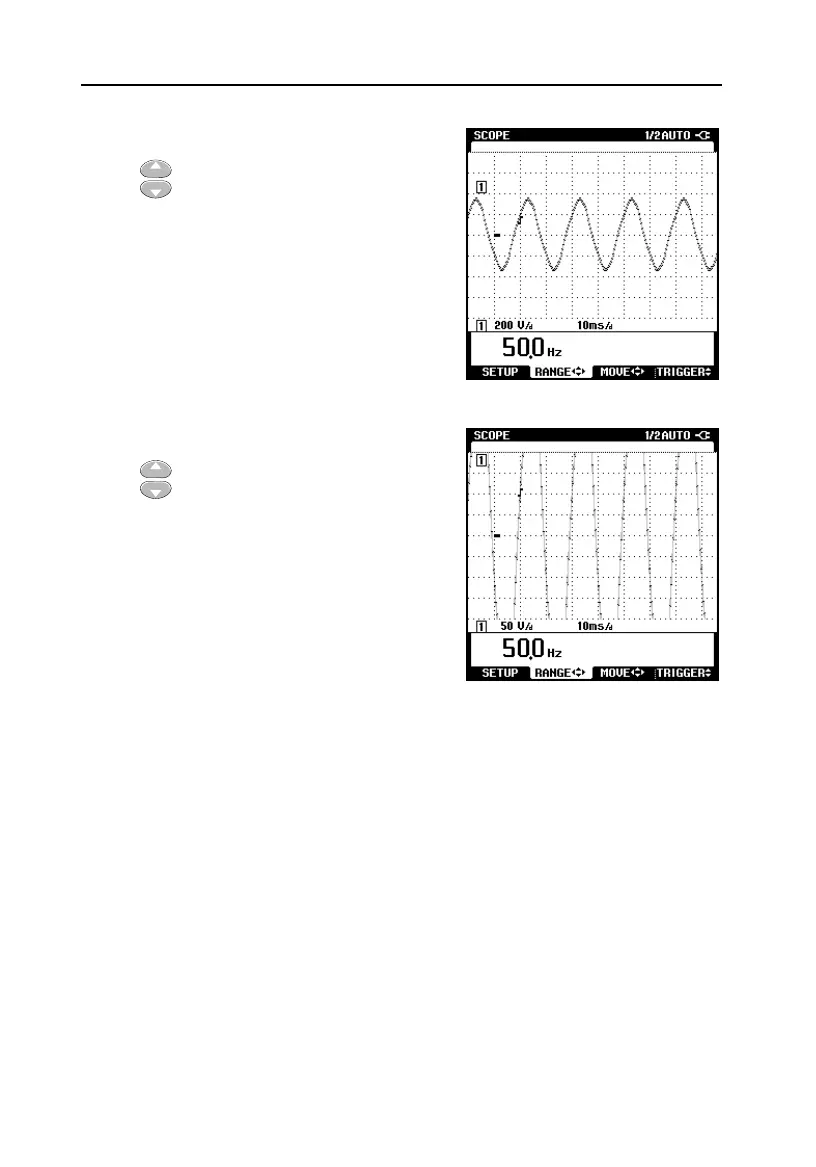

4 Press the lower button to
reduce the waveform
amplitude
5 Press the upper button to
enlarge the waveform
amplitude
In this example the waveform amplitude is
higher than the screen. Rescale the amplitude
within the screen area to view the whole
waveform.
In the screen above, one vertical grid division equals a voltage of 50 volt which
is indicated as 50 V/d.

Fluke 43B Specifications

General

Category	Power Quality Analyzer
Interface	RS-232
Volts AC/DC	Yes
Ohms	Yes
Continuity	Yes
Diode Test	Yes
Capacitance	Yes
Harmonics Measurement	Up to 51st harmonic
Display	LCD
Battery Life	Approximately 6 hours
Weight	1.1 kg (2.4 lb)
Data Storage	Yes
Amps AC/DC	0.1 to 1000 A (with clamp)
Power Measurement	W, VA, VAR, PF
Dimensions	50 mm
Current Measurement Range	Via current clamp accessories (not built-in)
