Calibration Bath
Before You Begin
11
WCaution
To avoid Product damage, make sure the immersion coils are completely covered when
you fill the tank. Do not fill above the stir baffle, see Figure 2.

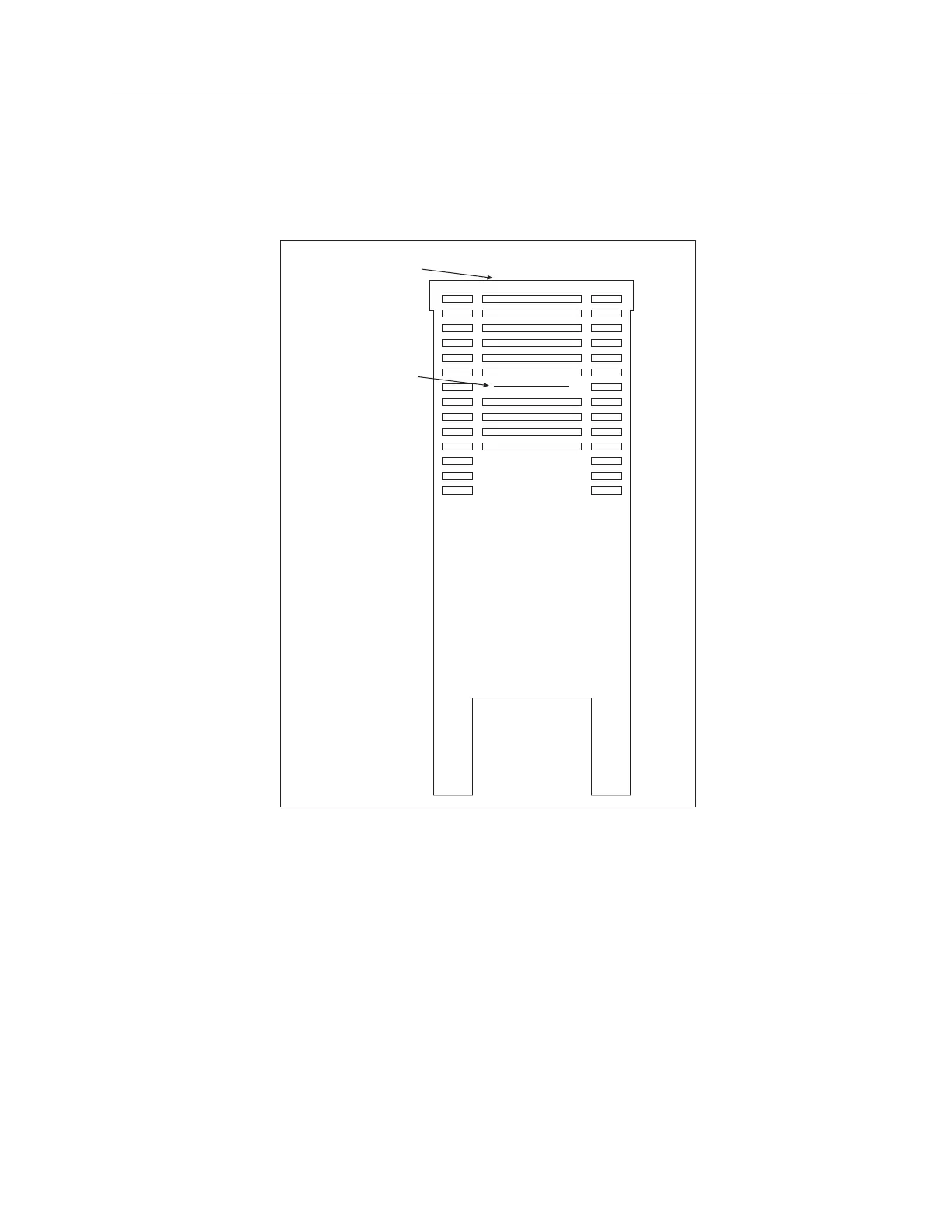

Figure 2. Stir Baffle Fill Level
The Bath has an overflow drain for excess bath fluid due to expansion. This drains the fluid into
the fluid expansion reservoir for reuse. See Rear Panel and the Fluid Expansion Reservoir.
Note
As Bath temperature increases, fluid level increases. See Bath Use and Thermal Expansion.
MIN FILL
Maximum Fill Level
Top of Baffle
Minimum Fill
Level Line
