12CI400A • 12HI400A 29
Disassembly and replacement instructions
Dispense chute removal
1. Remove top cover (see page 31).
2. Remove stainless front cover (see page 31).
3. Slide plastic dispense chute cover up and out to remove.
4. Remove four (4) push fasteners holding dispense tube in place and
remove tube.

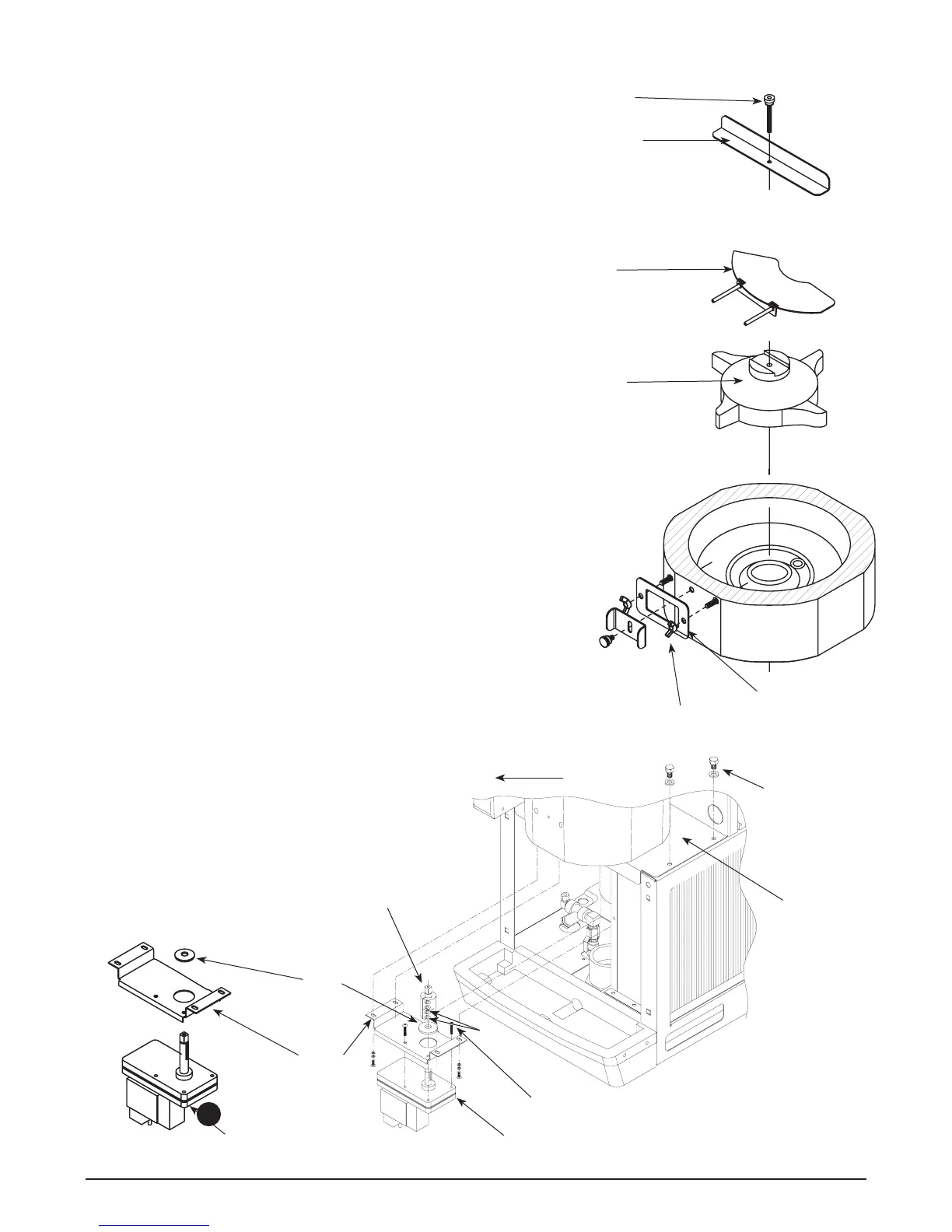

Dispense wheel and drive bar removal
1. Remove all ice from storage area of dispenser.
2. Remove center thumbscrew, locking plate, two wingnuts and
backing plate from front of storage hopper (see drawing at right).
3. Remove threaded rod, agitator, baffle, and wheel in this sequence.
Wheelmotor removal
1. Remove dispense wheel and drive bar (see above).
2. Remove four (4) hopper/support plate mounting screws
and washers (Fig. 11.1).
3. Move hopper assembly 1/2" (13 mm) to left.
4. Remove four (4) dispenser motor bracket mounting screws and
washers (Fig. 11.2).
5. Short shaft motors only: loosen only two (2) lower screws on drive
coupling and remove from motor shaft (Fig. 11.3).
6. Remove four (4) screws holding motor to mounting bracket.
threaded rod
agitator
dispense wheel
baffle
backing plate
wingnut
1 – mounting
screw &
washer
hopper/
support
plate
assembly
drive coupling
assembly
shield
dispense motor (short shaft)
2 – dispense motor mounting screws
MOVE HOPPER ASSEMBLY 1/2"
(13 mm) TO LEFT
mounting
bracket
3
Fig. 11
1
dispense motor (long shaft, current)
