Follett 12CI400A-LI - Thermostat and Ice Transport Tube Replacement

32 12CI400A • 12HI400A

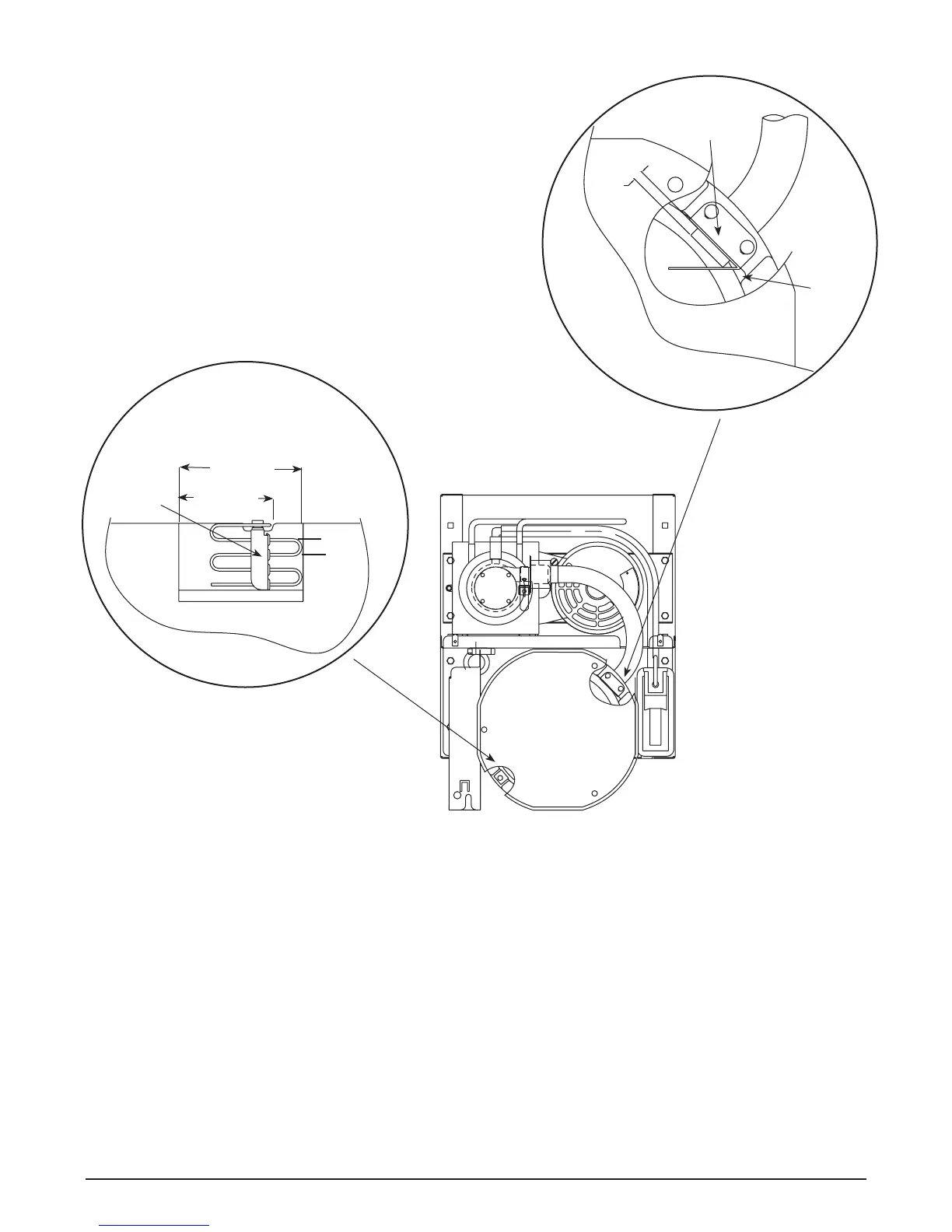

Thermostat: hand bend cap tube
end as shown
Thermostat and ice transport tube replacement
Ice transport tube: tube
may extend a maximum
of 1/4" (6 mm) into ice bin
Top view
.25
ice tube
gasket
ice tube
retainer
.50 TYP
3" (76 mm)
capillary
tube
bracket
Ice transport tube replacement
1. Push tube onto evaporator port.
2. Position clamp behind lip on evaporator port and tighten clamp.
2" (51 mm)
