Follett 12CI400A-LI - Wheelmotor and Drive System

34 12CI400A • 12HI400A
16
17
7
8
5
6
9
18
2
11
4
3
13
15
12
6
9
10
9
5
14

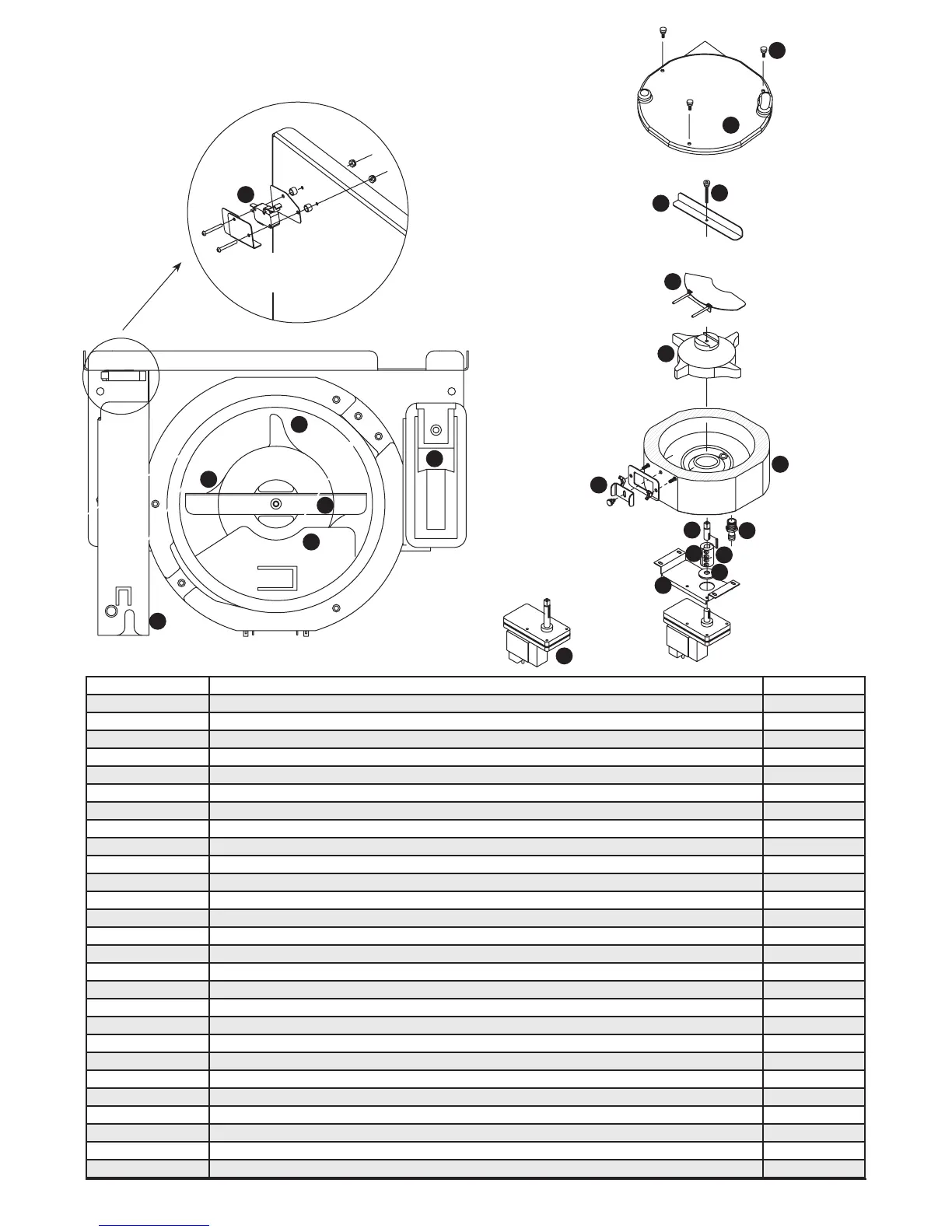

Wheelmotor and drive system
Top view
1
Reference # Description Part #
1 Motor, wheel, long shaft (includes 502537) 502580
2 Drive shaft extension 502384
3 Coupling (includes key) (short shaft motor only) 502385
4 Key, 1/8" sq x 1-1/4 lg 501273
5 Baffle, ice (securing hardware, part# 00167973, included) 502414
6 Wheel with Agion, agitator 502387
7 Rod, threaded (includes knurled nut) 502390
8 Agitator, rotating 502386
See page 32 Bracket, capillary tube 502406
See page 32 Retainer, ice tube (2" high) 502404
See page 32 Retainer, ice tube (2.25" high) 00152017
See page 32 Retainer, ice tube 00977314
See page 32 Gasket, ice tube 502405
See page 32 Gasket, ice tube 00977322
9 Assembly, hopper with Agion (includes drain tting) 502413
10 Float valve and reservoir 500504
Not shown Bar, spacer 502389
Not shown Fitting, hopper drain (includes nut), 5/8" barb tting 502381
11 Fitting, hopper drain, 3/4 MPT, 3/4" barb tting 207095
12 Switch, interlock 502416
13 Support plate, motor 502423
14 Cover, electrical box 502408
15 Shield, gearmotor 502537
16 Screws, 10-32 x 1/2 (6 needed) 201022
17 Hopper lid with hopper lid safety switch actuation 00135962
Not shown Hopper lid, dispenser top cover, safety switch actuation (Before SN# B72959) 207809
18 Hardware, baffle securing 00167973
storage hopper
interlock switch
