Follett 12CI400A-LI - Evaporator replacement parts; Reference # Description

42 12CI400A • 12HI400A

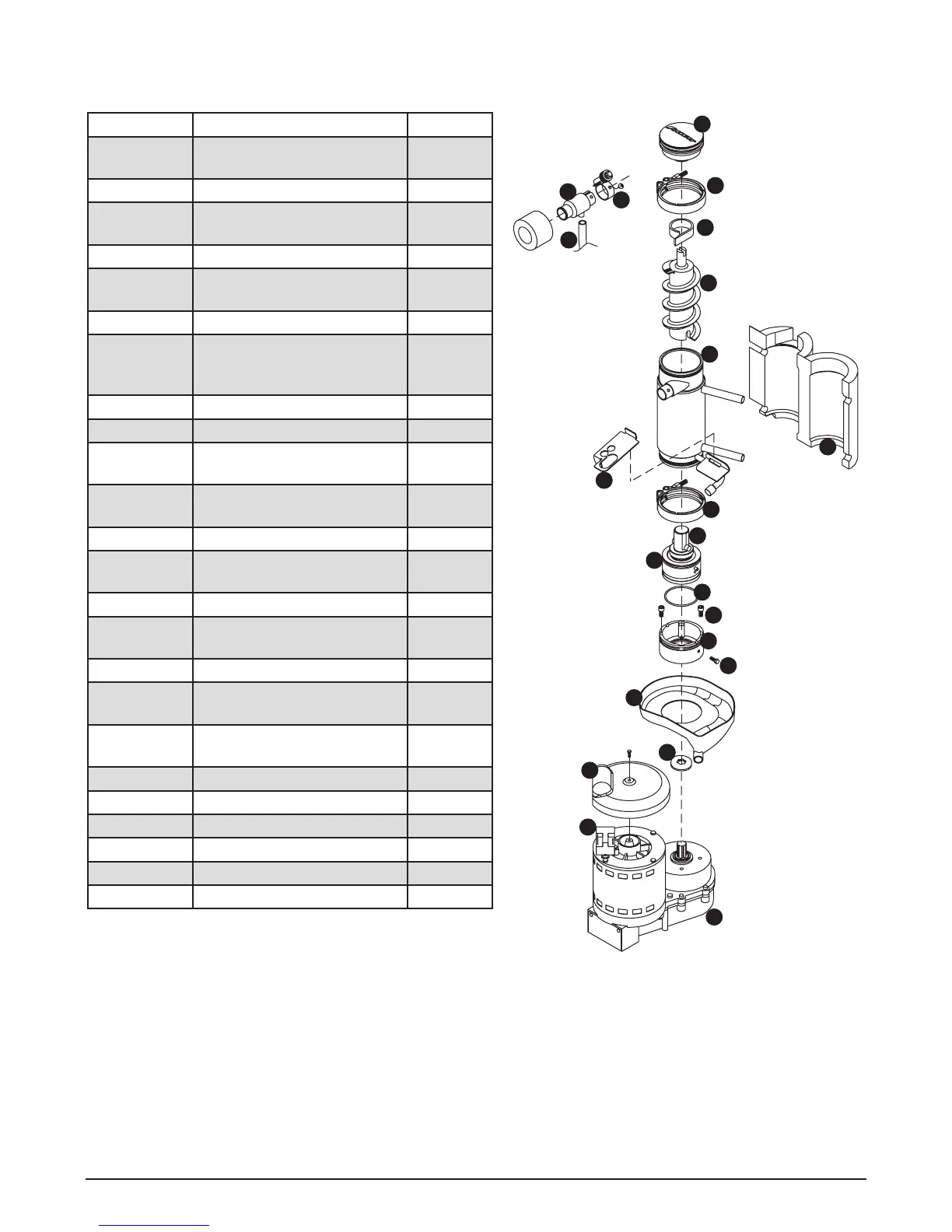

Evaporator replacement parts
Reference # Description Part #
1 Coupling, vee band, includes
nut
502735
2 Bearing assembly, top 502736
3 Loop, ice compression,
beveled
502110
4 Auger 502737
5 Evaporator (includes
insulation jacket, 502740)
502725
6 O ring, bearing housing 500496
7 Bearing assembly, bottom
(includes O rings and
condensate shield)
502738
8 O ring, mounting base 501063
9 Shield, condensate 500744
10 Screw, Allen 1/4 20 x 1/2 (set
of 4)
501080
11 Mounting base, evap.
(includes 501063)
502733
12 Bolt, mounting base 502227
13 Gearbox & motor (includes
307192)
00142034
Not shown Mounting base, gearbox 502729
15 Compression nozzle, with
single drain
502221
16 Drain pan, evaporator 502727
17 Clamp, compression nozzle
and screw
502226
18 Tubing, compression nozzle
drain(s) (sold by foot)
500680
Not shown Grease, Mobil FM 222, 14 oz 5 01111
19 Bracket, drain hose 502739
20 Insulation jacket, evaporator 502740
21 Relay, gearmotor 00142042
22 Cover, metal 502744
22 Cover, black plastic 01012228
