Follett 12CI400A-LI - Dispense chute and splash panel (models with lever dispensing) - Serial Number D61292 and above

12CI400A • 12HI400A 35
1
11
7
6
7
6
5
4
4
10
3
3
9
5
8
9
1
(located behind
water reservoir)
2

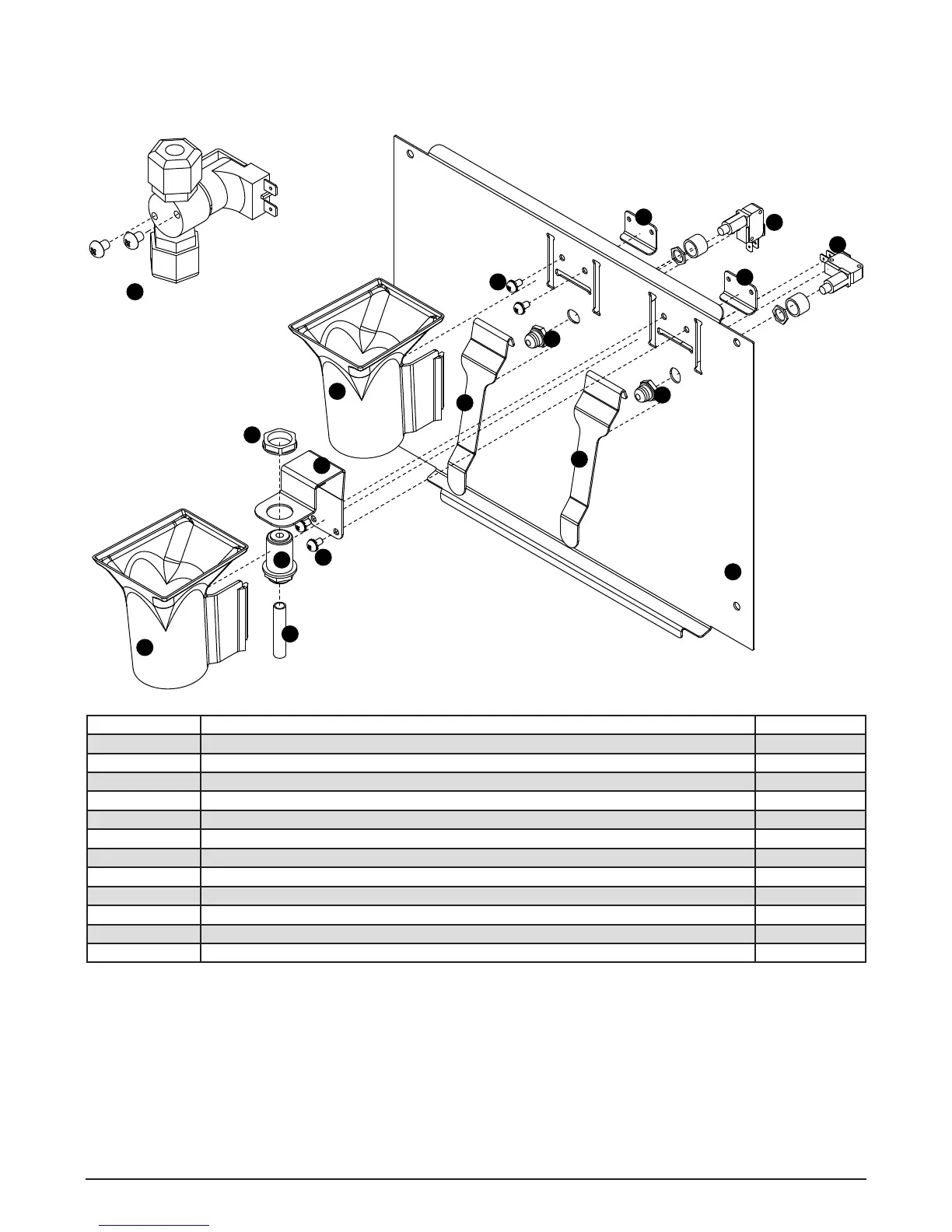

Dispense chute and splash panel (models with lever dispensing) —
Serial Number D61292 and above
Reference # Description Part #
1 Chute, ice or water (with Agion
®
antimicrobial product protection
1
) 00967760
2 Support, water tube 00960682
3 Lever 00976845
4 Boot, dispense switch button 502418
5 Screw, panel 00982421
6 Switch, dispense 00981217
7 Bracket, lever support 00958793
8 Tube, water solenoid 502420
9 Fitting, bulkhead (with nut) 00976787
Not shown Splash panel (ice only) 00977850
10 Splash panel 00969980
11 Solenoid, assembly (includes ttings, screws) 00981209
1
Disclaimer: Antimicrobial protection is limited to the treated components and does not treat water or ice.
Agion is a registered trademark of Agion Technologies, Inc, Wakeeld, MA, USA.
