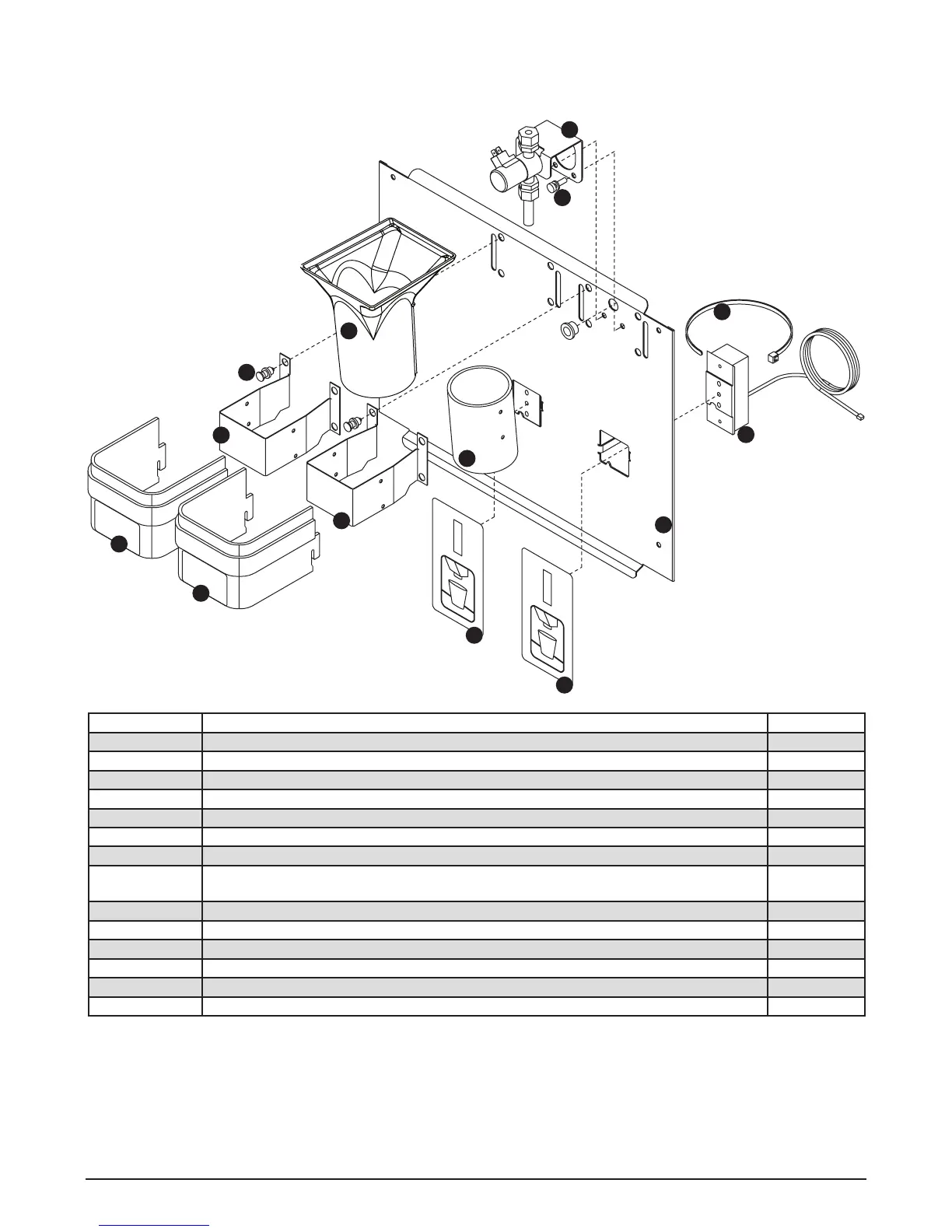

Follett 12CI400A-LI - Dispense chute and splash panel (models with SensorSAFE infrared dispensing - Serial Numbers below D61292

38 12CI400A • 12HI400A
Reference # Description Part #
1 Chute, ice, with bracket and fasteners (with Agion) 00981225
1 Chute assembly (clear), ice 502513
2 Chute, water, with bracket and fasteners (with Agion) 00981233
2 Chute (clear), water 502249
3 Sensor (includes 502690 and 203611) 00122978
4 Thumbscrew 501100
5 Cover, dispense chute 502819
6 Solenoid assembly (includes solenoid, ttings, tube & mounting bracket, see
page 37 for exploded view)
502421
7 Lens, sensor (each) 502690
8 Ty-rap, sensor mounting 203611
9 Splash panel (with drain pan – includes (2) 203611 and (2) 502690) 502675
10 Fastener, dispense chute assembly 502057
Not shown Splash panel (without drain pan – includes (2) 503611 and (2) 502690) 502676
Not shown Splash panel (ice-only – includes (1) 503611 and (1) 502690) 00923581
6
4
8
3
9
7
7
5
5
2
2
1
1
10
Dispense chute and splash panel (models with SensorSAFE infrared dispensing — Serial
Numbers below D61292
