6 12CI400A • 12HI400A
3/8" FPT water inlet
3/4" FPT drain
power cord

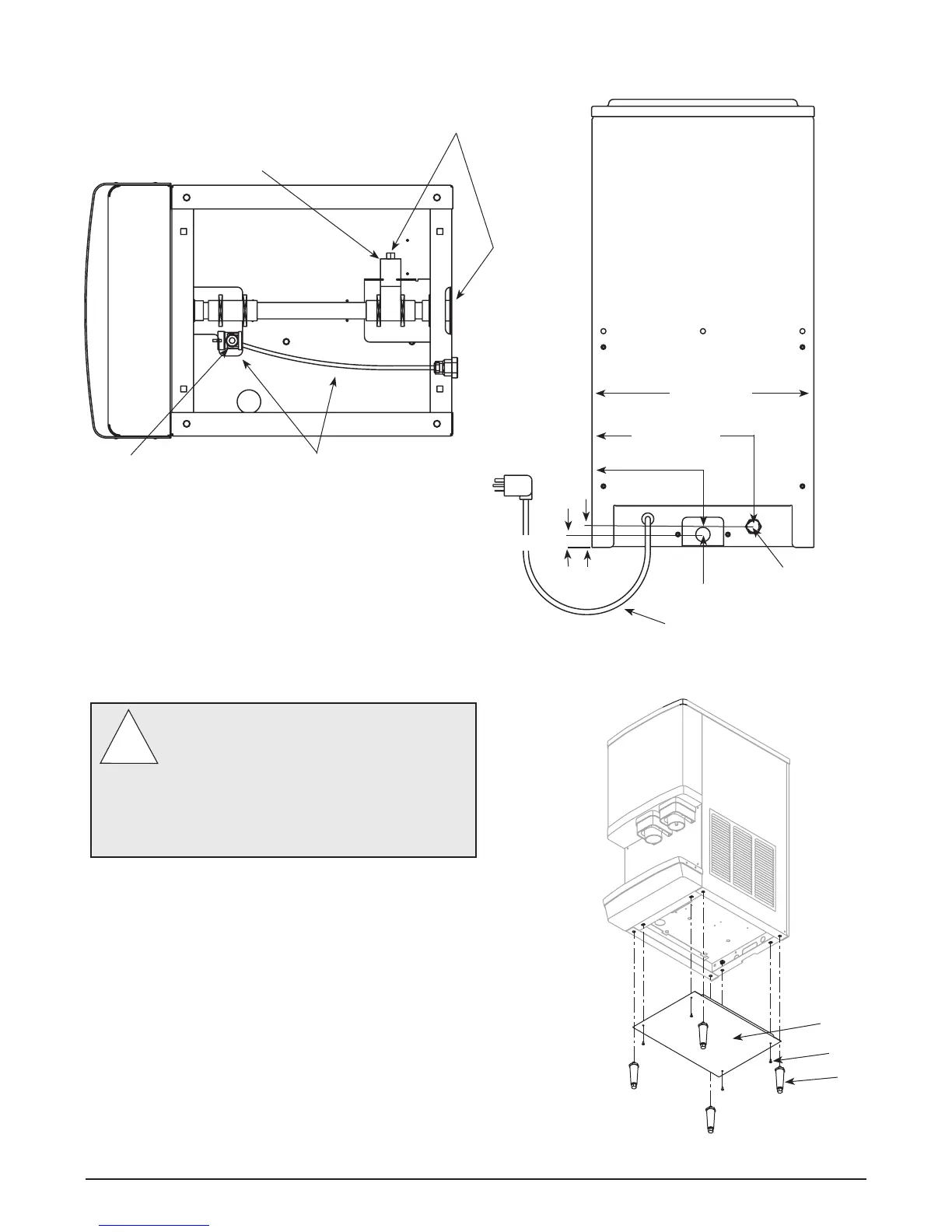

Fig. 3 – Rear exiting utilities
(countertop units)
3/4" FPT drain
3/8" OD push-in
water inlet
Remove poly tubing and
tting for water inlet
bottom
panel
screw
leg
Do NOT tilt unit farther than 30˚ off
vertical plane.
Countertop dispensers that sit on
legs (not bolted to counter) can be
inadvertently moved. Care should be
taken when operating and cleaning to
avoid accidents.
!
Fig. 2 – Bottom exiting utilities
(countertop units)
Fig. 4 – bottom panel assembly
1. Carefully tip dispenser back to expose
underside and block up in place.
2. Screw legs (shipped taped to drain pan of
dispenser) into dispenser bottom, taking
care to seat legs securely against underside
of dispenser.
3. Attach bottom panel and hardware to bottom
of dispenser with supplied screws (Fig. 4).
4. Position unit in desired location and adjust
bullets on legs to level in both directions.
5. Make nal connections.
Installing countertop dispensers with legs
accessory
16" (407 mm)
11.7" (298 mm)
8.1"
(206 mm)
1.5"
(39 mm)
.9" (23 mm)
Move pipe plug
to back of unit
