 Transmitting Signal Name and Tally Data

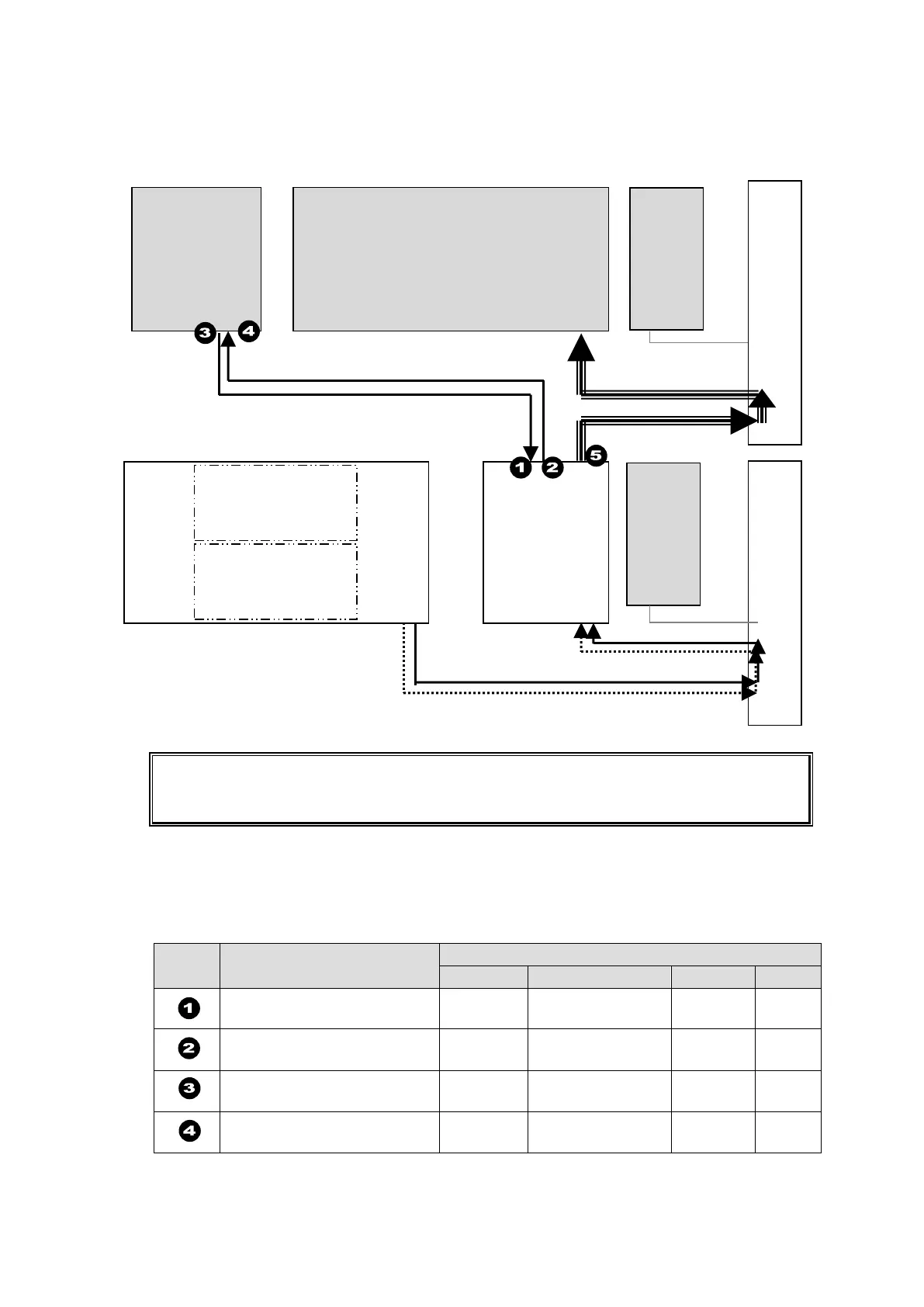

The figure below shows an example signal name and tally data routing system using the
MFR-TALM.
Each serial port should be set as shown in the table below in the relevant page of the
MFR-TALM Web-based Control accessed from "http://192.168.1.62" (default IP address)
on your web browser.
Serial Port Settings
Open the [MFR-TALM Web-based Control: Port Settings page] and perform port settings
under Serial Port.
As for the HVS-390HS unit, perform port setting in the [EXT INTERFACE - RS-422] menu.
Port
Menu
[Port Settings] - [Serial Port]
Connector
Function
Baud rate
Parity
Web-based Control
[TALM Settings]
No. 1
HVS-TAL Protocol
Reception
38400
EVEN
Web-based Control
[TALM Settings]
No. 2
Router/HVS
connection
38400
NONE
HVS-390HS
[EXT INTERFACE - RS-422]
RS-422
(1)
TALLY
38400
EVEN
HVS-390HS
[EXT INTERFACE - RS-422]
RS-422
(2)
ROUTER
38400
NONE
Ethernet Hub(MFR
-LAN)
Ethernet Hub (PC
-LAN)
Signal name data
OUT1
| | | | | | |
｜
IN1
| | | | | | |
｜
PC
（MFR
WEB
）
VIDEO Switcher
(HVS
-390HS)
Multi
Viewer
(MV
-3200)
MFR Main Unit
MFR
-LAN
PC-LAN
MFR
-TALM
PC-LAN
MFR
-LAN
RS-422
（1）
RS-422
（2）
RS-422
(1)
RS-422
(2)
LAN
MFR
-xxRU
Switcher's tally data
Tally and name data
Router's tally and name data
