44
USING THE CLAMPS
1. The capacity of the clamps can be adjusted by releasing the knobs and sliding the
spindles up and down or forward and backward. Once the desired capacity is reached,
tighten again the knobs.
2. while cutting, move the vertical or the horizontal clamp until the clamp’s plate gets in touch
with the work-piece
3. To block the work-piece against the base, screw the knobs until the work-piece is blocked.
After having cut, open the knobs to release the work-piece.
ASSEMBLING THE EXTENSIBLE
SUPPORTS

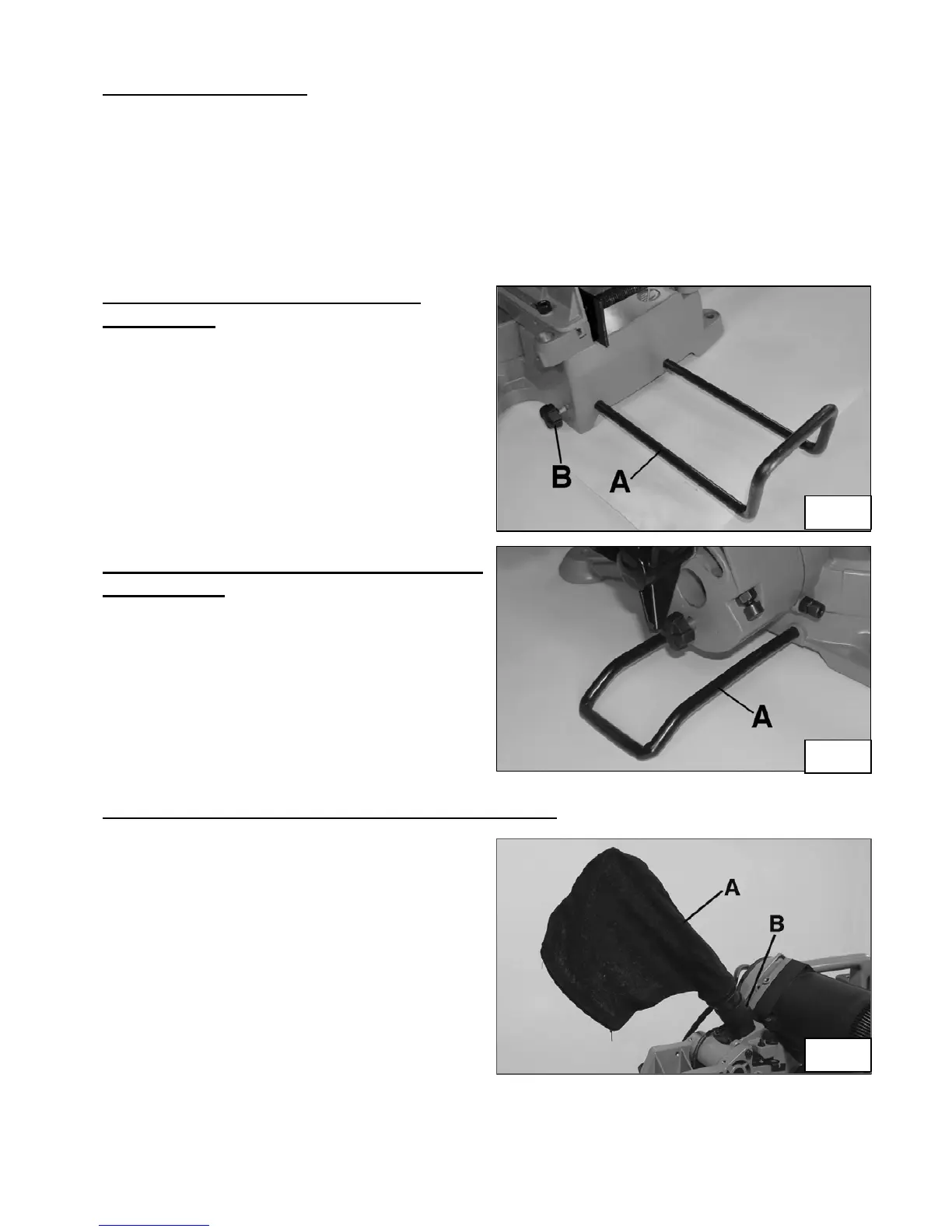

The mitre saw is equipped with two lateral
extensible supports (A) Fig.5 useful to support
long work-pieces during the cut. These supports
can be assembled on both sides of the machine,
depending on the dimensions of the work-piece.
Unscrew the knob (B), insert the extensions into
the slots on both sides of the base and lock the
knobs again.
ASSEMBLING THE ADDITIONAL BACK
STABILISER
This mitre saw is equipped with an additional
stabiliser on the back, (A) Fig. 6, improving the
machine’s stability in case of accidental release
of the head, preventing it from tilting backwards.
ASSEMBLING THE DUST COLLECTION’S BAG
insert the dust bag (A) Fig.7 into the slot (B) and
verify that it is correctly assembled.
For a better dust collection, you can connect
directly to the extracting elbow a vacuum dust
collector .
Note: empty regularly the bag to prevent
obstructions. The bag is equipped with a zipper,
for an easy cleaning. You can wash the bag with
soap warm water and dry it before reusing
Make sure that the zipper is correctly closed
before cutting.
Fig.5
Fig.6
Fig.7
