OPERATING
HAZARDOUS AREAS OF THE TABLE
The working area on the table is designated as “hazardous area”.
Never have your hands inside this area, during the cut
TURNING ON / OFF THE MITRE SAW
To turn on and off the machine :
1. Connect the feeder cable to the electric socket
2. Press ON button (2) Fig.1 to start the mitre saw
3. Release the ON button to stop the mitre saw
WARNING!
Do not cut short work-pieces: a too short piece won’t allow you to keep your
hands at a safe distance from the disk. Never cross the hands nor position them in the
cutting area.
USE OF SETTING OF THE DOUBLE LASER SYSTEM

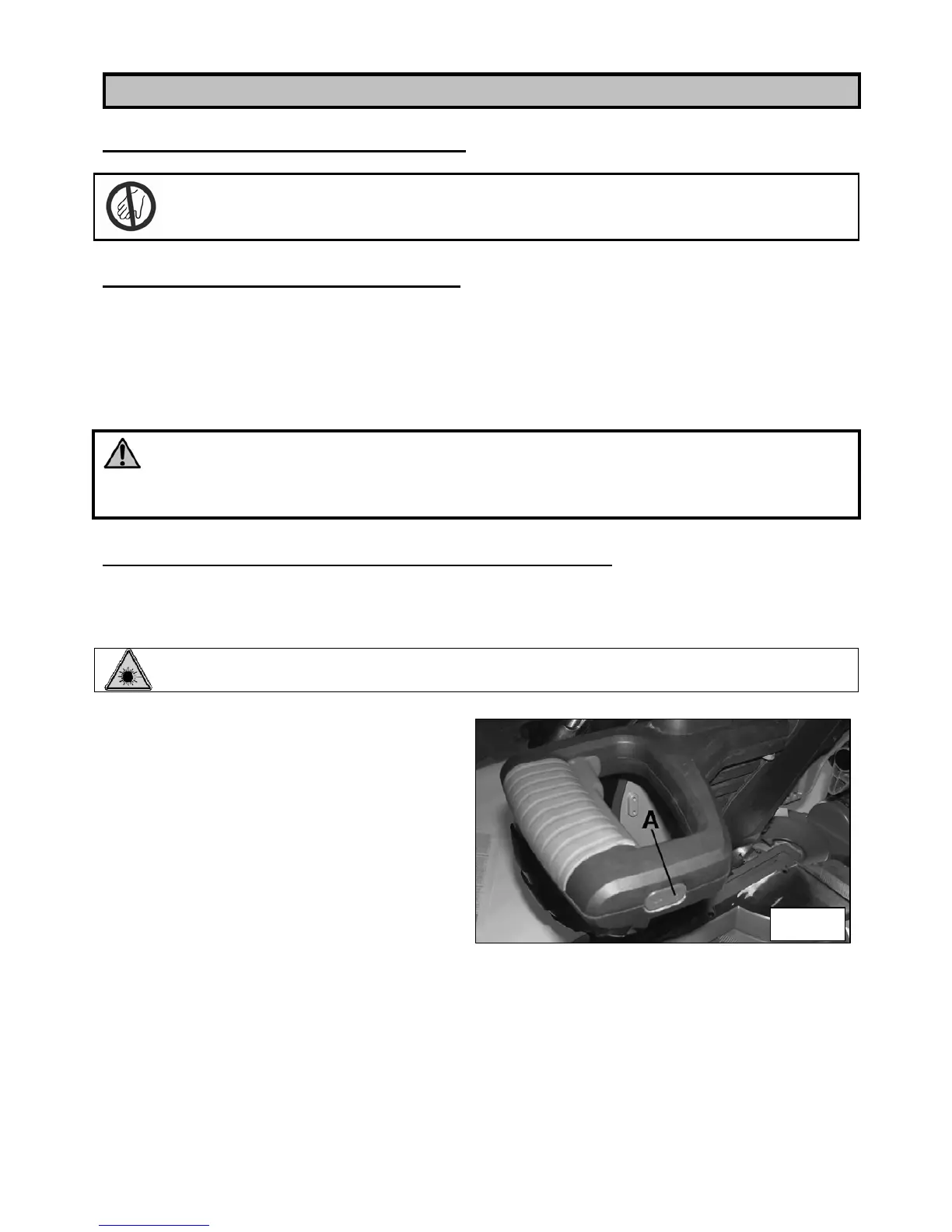

The double laser system is controlled buy the switch (A) Fig.14 and is only active when the
feeder cable is connected to the electrical socket.
WARNING !
Do not watch directly into the laser ray generator.
1. Draw a line on your work-piece.
2. Adjust the horizontal and bevel angles
according to your needs
3. Before camping the work-piece, switch
the double laser on and align the line
you drew with one of the laser rays,
either on the right or on the left of the
disk.
4. turn on the mitre saw on.
5. once the disk has reached the maximum
speed, lower the head to cut
Fig.14
