48

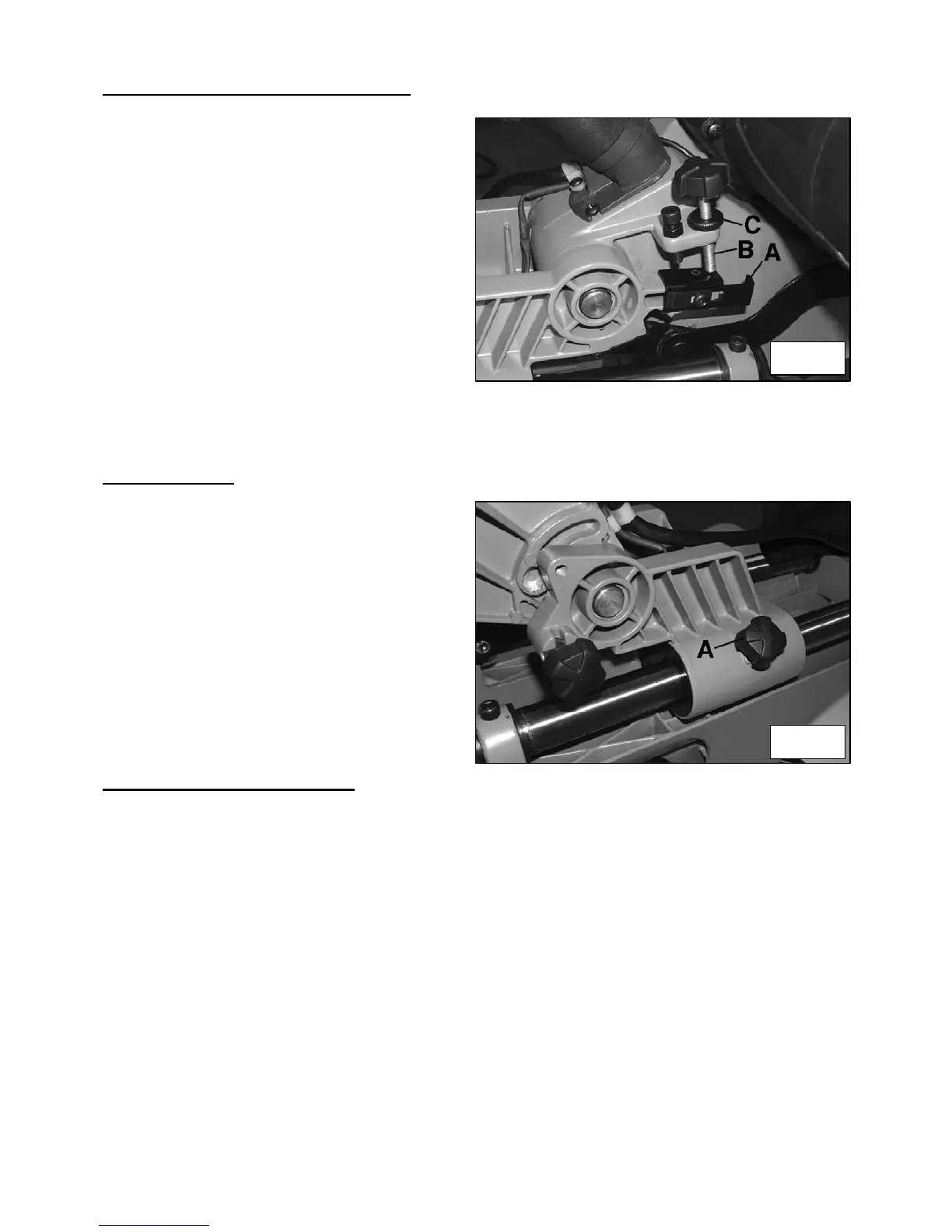

SETTING THE CUTTING DEPTH
The vertical depth of the cut can be adjusted,
allowing the mitre saw to cut a groove.
When setting the cutting depth make sure that
the disk may not touch the base, in the lower
position; the disk could damage the base.
To set the depth:
1. Lift the head in the higher position.
2. Loosen the bolt (C) Fig.12.
3. Adjust the knob (B) to the desired
cutting depth.
4. Tighten the bolt (C).
Note : In case the cutting depth (A) is set too short, the disk wont cut through the work-piece.
Always make a test-cut after setting the cut depth
SLIDING CUT
1. Loosen the knob (A) Fig.13 to release
the sliding device.
2. Pull or push the operating handle to
slide the head along the guides
3. Tighten the knob (A) to block the sliding
device
Note : Warning ! before transporting the mitre
saw, make sure that the sliding device is
blocked
WORK-PIECE SUPPORTS
Use the lateral extensions available, to support long pieces during the cut. Position the
extensions as described above, see CUT-END GUIDE EXTENSIONS
Fig.12
Fig.13
