57
WARNING!
It is only allowed to use blades of the same thickness as the original blade; flanges
are designed for such thickness and can only grant the disk stability in such condition.

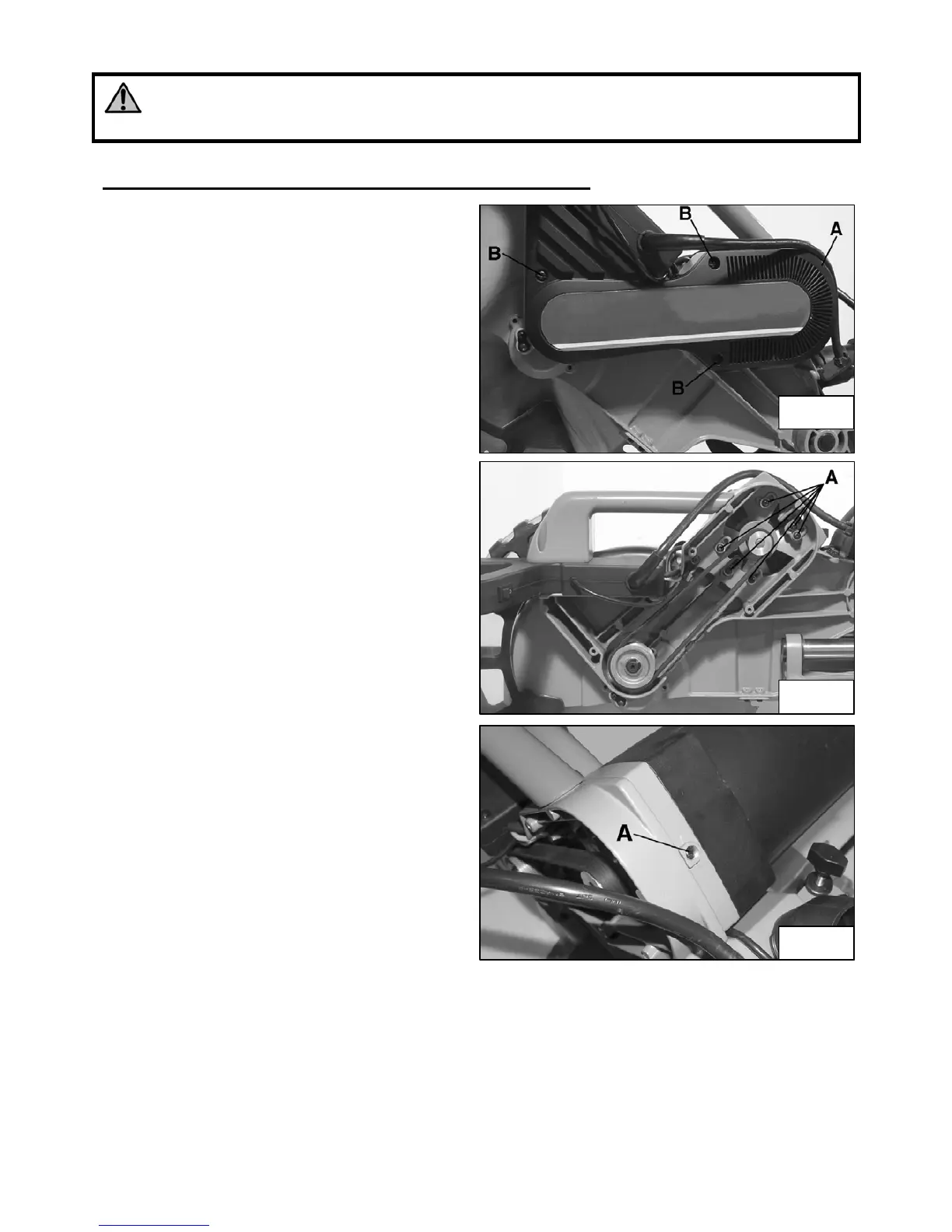

REPLACEMENT AND REGULATION OF THE BELT
When the belt needs to be replaced or re-
tensed, proceed as follows:
1. Disconnect the feeder cable.
2. Push down the head, pull and rotate the
blocking knob (A) Fig.16, to maintain the
mitre saw in transport position.
3. Unscrew and remove the three screws
(B). open the belt cover (A) Fig.22.
4. To loosen the belt, open the six screws
(A) Fig.23 inside the belt box and modify
the position of the motor. Then open the
warm-screw (A) Fig.24 to loosen the belt
tension.
5. Remove the used belt.
6. Place the new belt, checking it is centred
on the two pulleys
7. screw up the warm-screw (A) Fig.24,
setting the belt’s tension so that, when
you press the belt in the centre, a
clearance of about 1,3 cm is left.
8. Once the belt is tensed, screw up the six
screws (A) Fig.23.
9. Reposition the belt cover. Insert and
screw up the three screws (A) Fig.22.
Fig.22
Fig.24
Fig.23
