50
To adjust the double laser system in case it is not aligned with the blade proceed as follows :
1. Remove the laser’s plastic cover.
2. Loosen the two screws (A) Fig.15 on
the side of the laser.
3. Block your work-piece on the base, turn
on the mitre saw and operate a partial
cut, to mark the two sides of the cut.
4. Rotate each laser (B) until both rays are
perfectly aligned with the two sides of
the cut.
5. Once the laser is adjusted, tighten the
screws (A) without moving the lasers.
6. Reposition the laser’s plastic cover.
THE ARM
During the use of the machine, the head must never be blocked in the lower position. The head
can be blocked in the lower position only for transportation or when it is not in function
To release the arm:
1. Push down gently the arm and keep it
in this position.
2. Pull and turn the knob (A) Fig.16.
3. Lift up the arm to the upper position.
To block the arm in the lower position:
1. Lower down the arm to the lower
position.
2. Pull and turn the knob (A) Fig.16.
HANDS AND FEET POSITION
Your cut will be easier and safer if you adopt a correct hands and body’s working position.
Stand on the side of the machine, do not stand on the line of the chips ejection.
• Keep a good and balanced position. Keep your hands at least 10cm away from the disk.
Hold strongly the work-piece against the guide and keep your hands in working position
until the starter trigger has been completely released and the disk has come to a complete
stop
• Before cutting:
- Do a test-cut with the machine off, to determine the path of the disk, or
- Switch the laser on and check that the path of the disk with the laser ray track. See the
USE AND SETTING OF THE DOUBLE LASER SYSTEM in case it needs to be
adjusted.

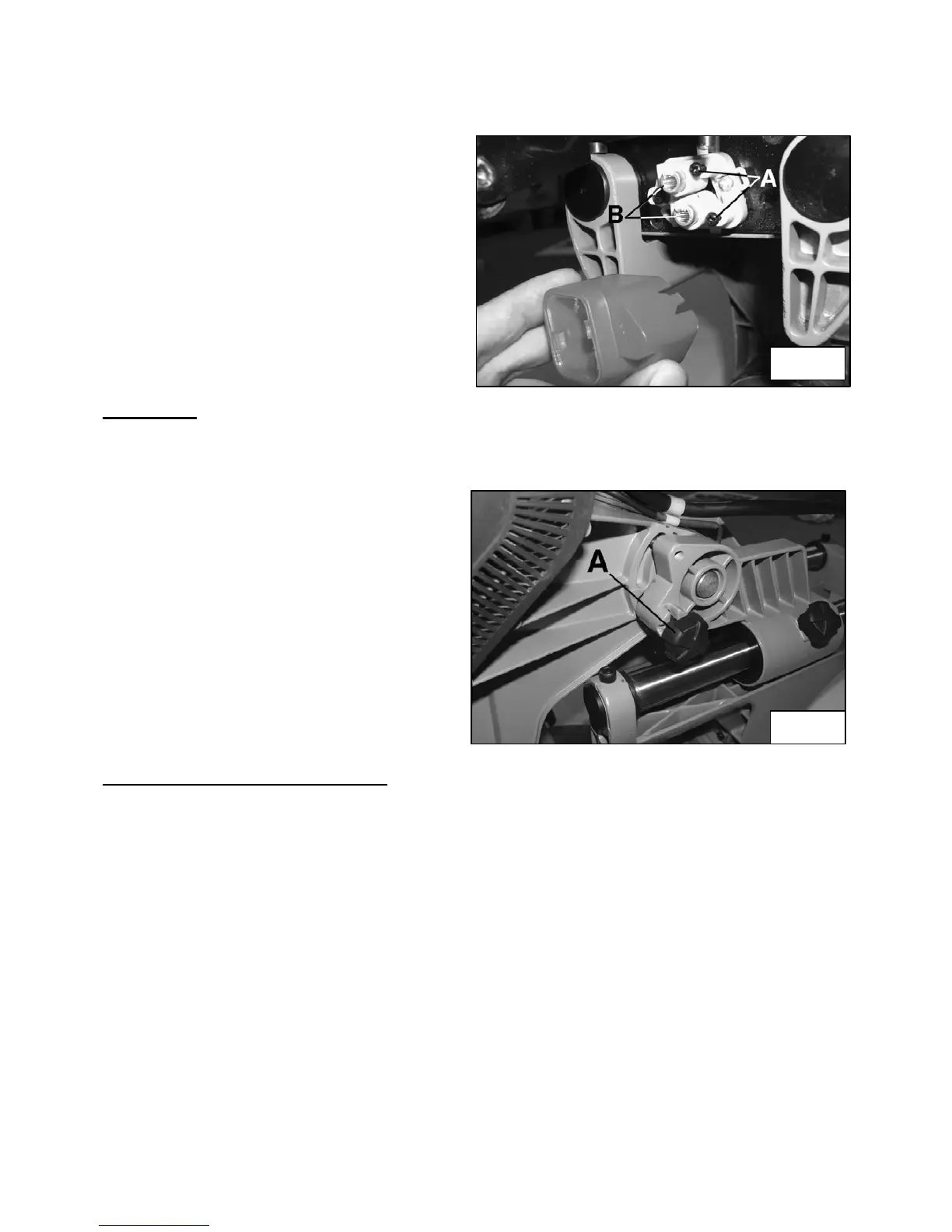

Fig.15
Fig.16
