43
ASSEMBLY
CAUTION!
Be sure that the mitre saw is switched off and disconnected from any current source
before assembly or any kind of adjustment.
ASSEMBLY OF THE ROTATING BASE HANDLE
Before using your double bevel mitre saw, you have to assemble the rotating base hande (J)
Fig.2.
To do this, screw the handle (J). this handle is used to fix the rotating base at the desired
angle for the angle-cut.
WARNING!
Before cutting, make sure that this handle and the rotating base are blocked
BEVEL FIXING AND BASE ROTATION
The base can be blocked at 0°, 15°, 22,5°, 30° et 45° either left or right. When rotating the base,
this will automatically stop at the next position
To rotate the base, make sure that the rotating base handle is unblocked; then rotate the base
at the desired angle and block the rotating base handle in the new position

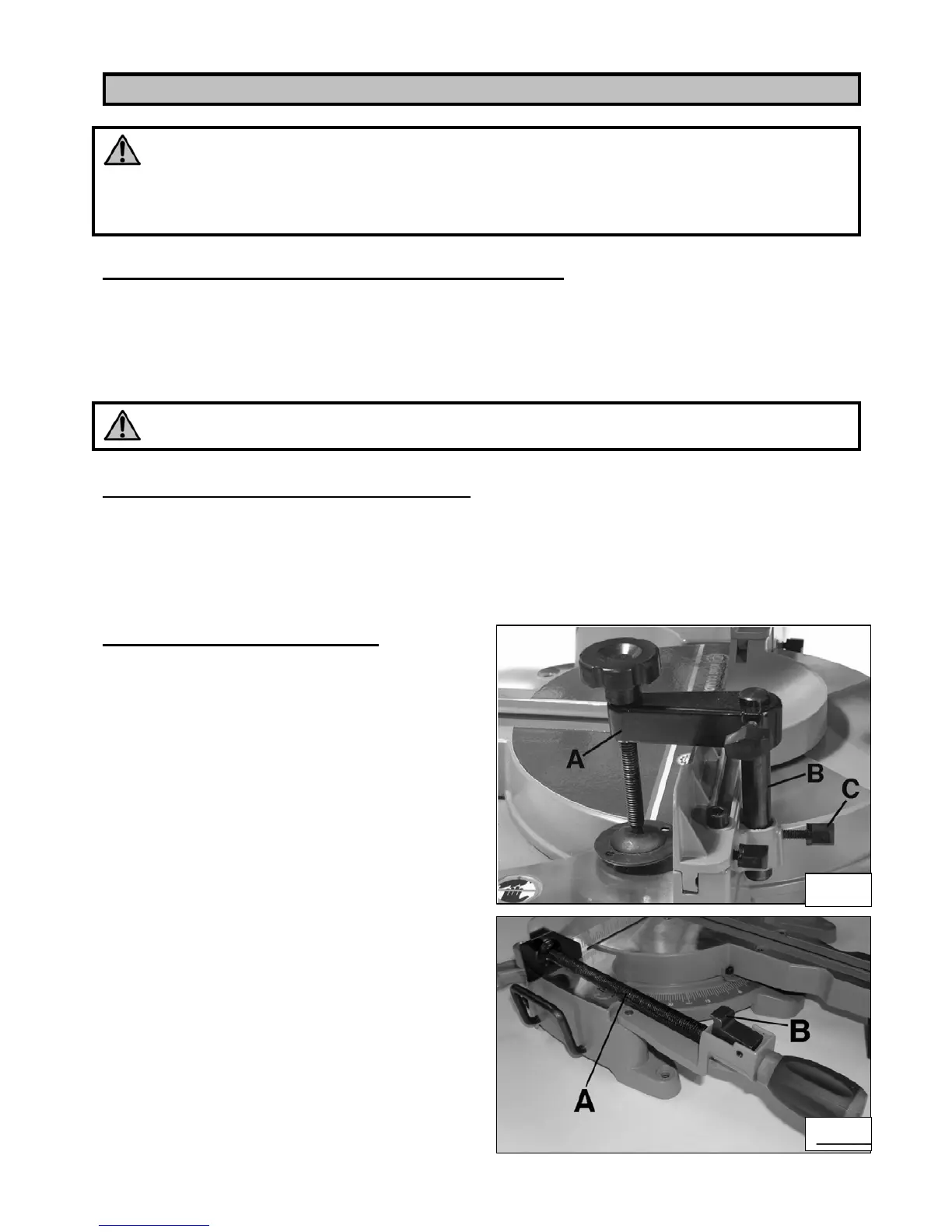

ASSEMBLING THE CLAMPS
Horizontal and vertical calmps can be
assembled either on the right or on the left of the
blade and can be adjusted at the size of the
work-piece. Do not cut before having clamped
the work-piece.
Position the vertical clamp (A) Fig.3 by inserting
the clamps spindle (B) into one of the holes
located on the cut-end guide, then tighten the
knob (C) to fix the spindle.
Position the horizontal clamp by inserting the
spindle into one of the holes located in the base.
To adjust the clamp’s position rotate the handle
or lift the lever (B) Fig.4, then push or pull the
clamp according to the work-piece dimension.
Block the clamp in its position by lowering the
lever (B) onto the bar (A).
Fig.3
Fig.4
