Cyclone PRO User Manual 17
CYCLONE PRO

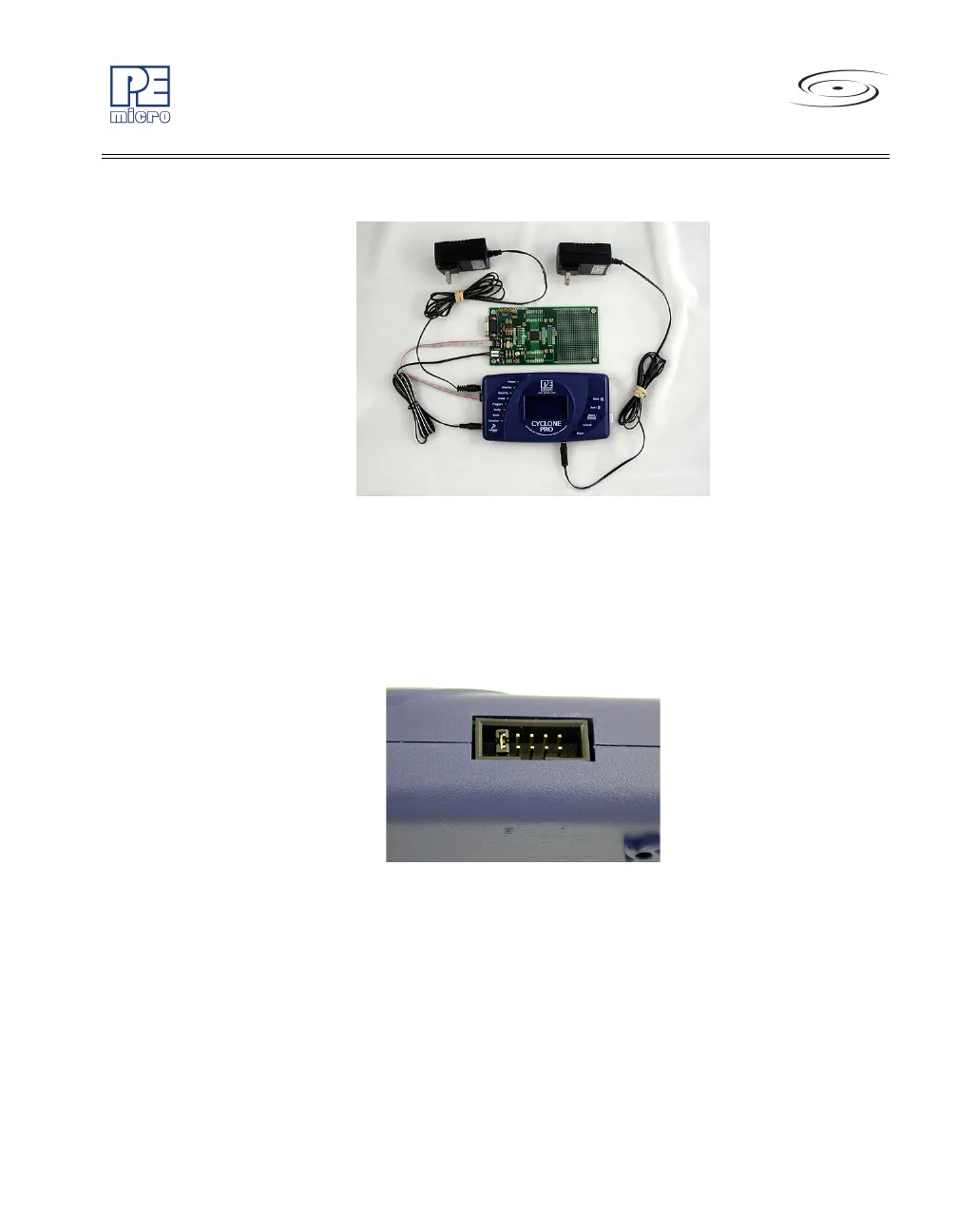

Figure 3-12: Via Power In and Power Out Jacks of Cyclone PRO
All of the jumpers except Jumper 5 should be left open for this mode, as
shown in Figure 3-13.
Note: This setting differs from the Rev. B Cyclone PRO, which requires no jumpers.
Figure 3-13: Jumper Settings for Target Power Connection via Power In and
Power Out Jacks Of Cyclone PRO
Only Jumper 5 is installed.
3.12.2 Using Cyclone PRO Board Power and Power Out Jack
The target power supply is not needed. The Power Out Jack of the Cyclone
PRO will act as a center positive power supply to the target system. Figure 3-
