18 Cyclone PRO User Manual
CYCLONE PRO
14 shows the connections.

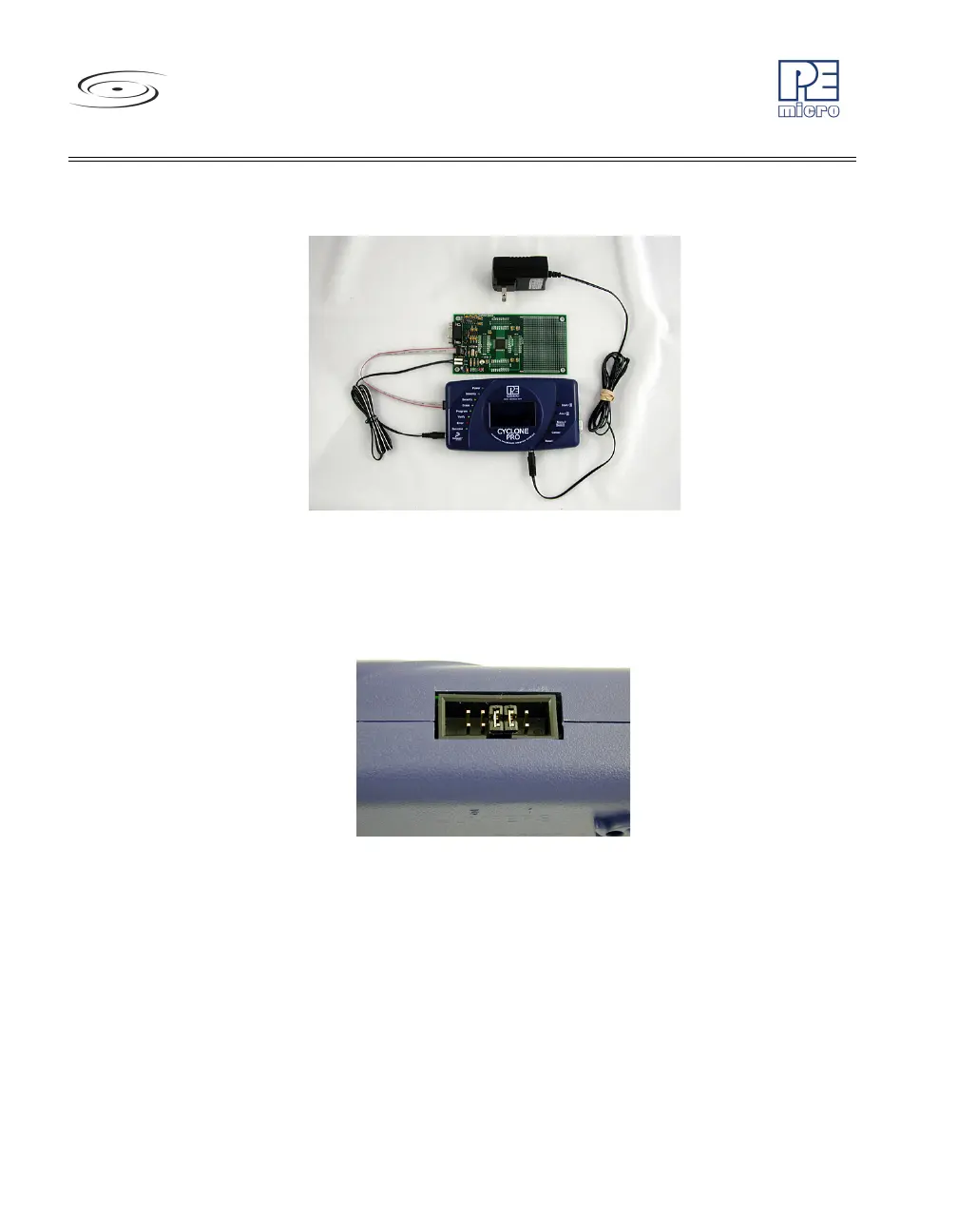

Figure 3-14: Via Cyclone PRO Board Power and Power Out Jack of Cyclone PRO
Jumpers 2 and 3 are enabled. Jumpers 1, 4 and 5 are left open, as shown in
Figure 3-15.
Figure 3-15: Jumper Settings for Target Power Connection via Cyclone PRO
Board Power and Power Out Jack of Cyclone PRO
Jumpers 2 and 3 are installed. Jumpers 1, 4, and 5 are left open.
3.12.3 Using Cyclone PRO Board Power and Pin 15 (for MON08), or Pin 6 (For
BDM)
The target power supply is not needed. Pin 15 of the Cyclone PRO MON08
connector provides the appropriate voltage for MON08 targets. Pin 6 of the
Cyclone PRO BDM header provides the appropriate voltage for BDM targets.
The Power Out jack of the Cyclone PRO connector is not needed. Figure 3-
