Cyclone PRO User Manual 19
CYCLONE PRO
16 shows the connections.

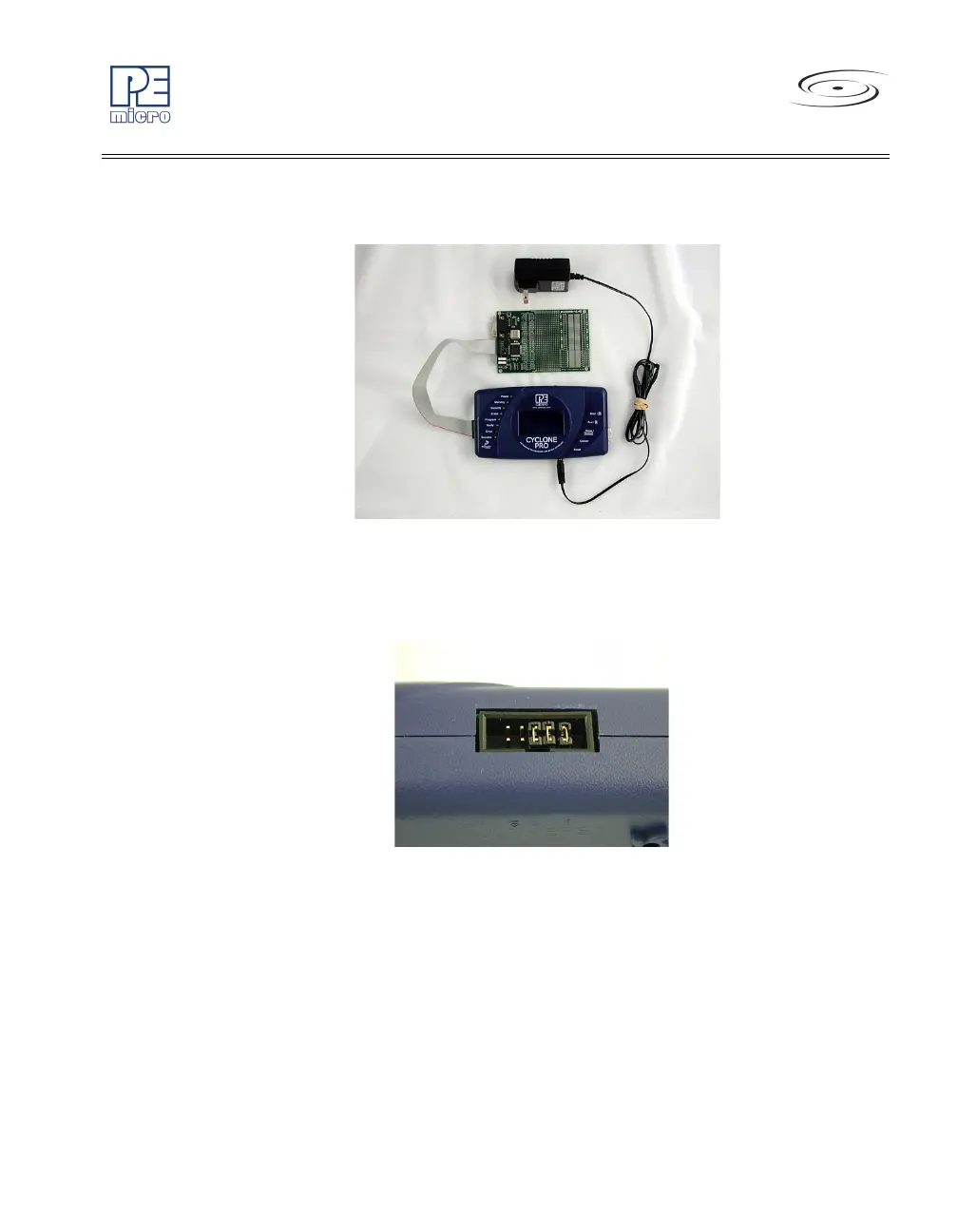

Figure 3-16: Via Cyclone PRO Board Power and Pin 15 of Cyclone PRO MON08
Connector
Jumpers 1, 2, and 3 are all enabled, as shown in Figure 3-17.
Figure 3-17: Jumper Settings for Target Power Connection via Cyclone PRO
Board Power and Pin 15 of Cyclone PRO MON08 Connector
