32 Cyclone PRO User Manual
CYCLONE PRO
corresponding drop-down box.
Alternately, the user may select the target architecture through the File menu.

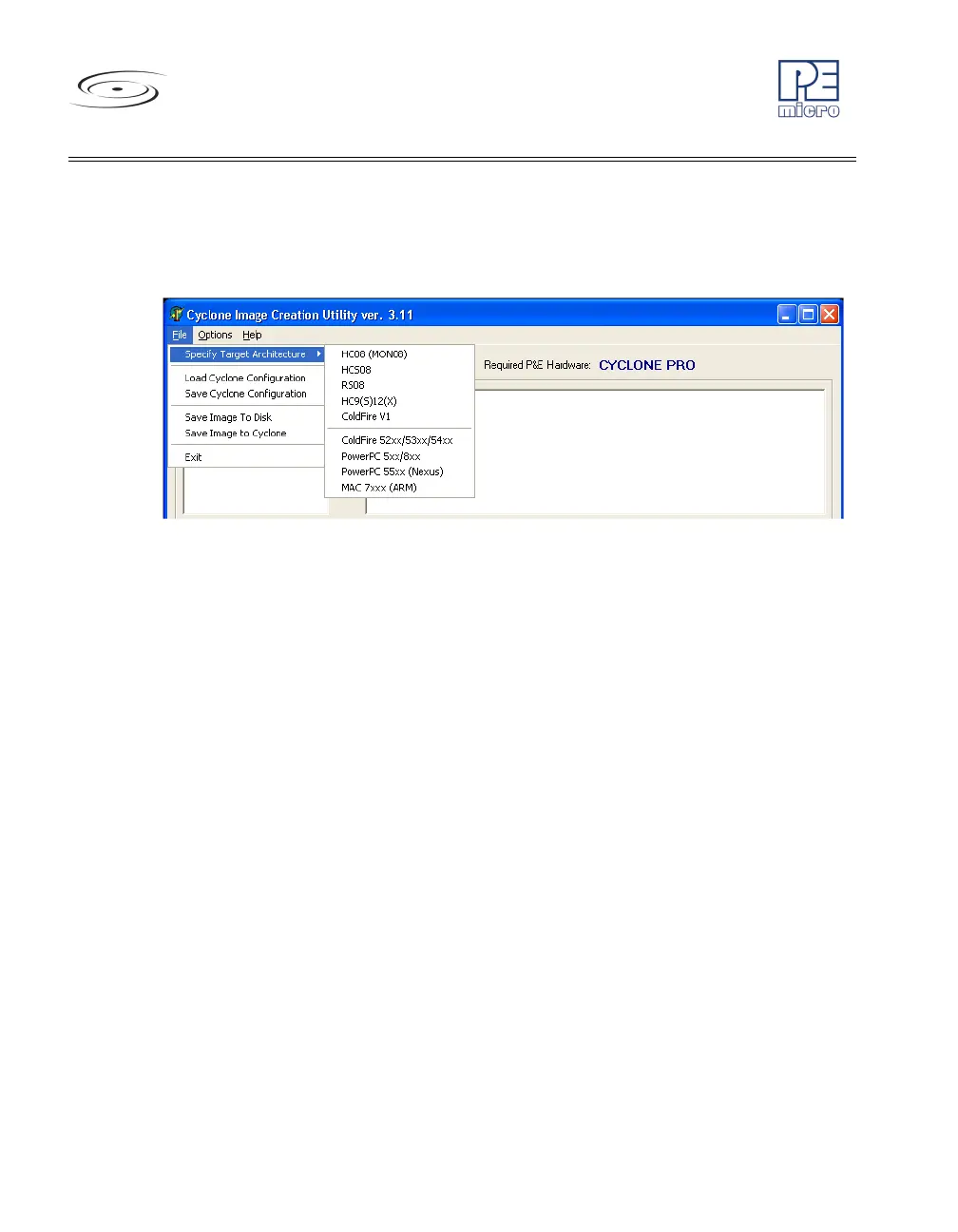

Figure 5-2 shows this selection in the File menu.
Figure 5-2: Target Class Selection via File Menu
5.1.1.1 ColdFire V1
The user may configure the Cyclone PRO to operate on a ColdFire V1 target
by selecting ColdFire V1 from the Specify Target Architecture drop-down
menu.
Alternatively, the user may select the ColdFire V1 target through the File
menu.
Figure 5-3 shows the ColdFire V1 specification configuration.
The target BDM header connections are shown on the right-hand side for
user reference. The Cyclone PRO will automatically detect the
communications speed.
