Cyclone PRO User Manual 37
CYCLONE PRO

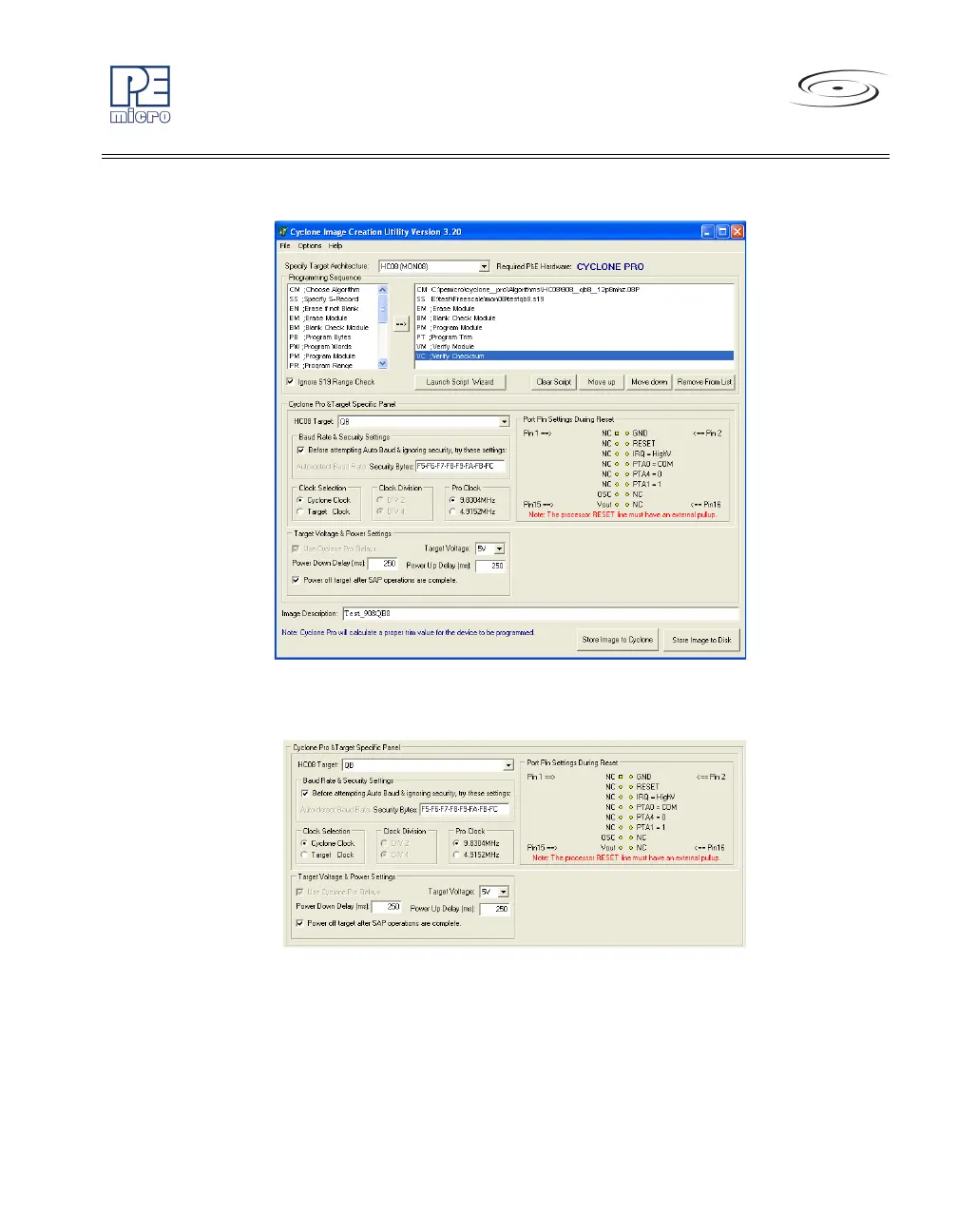

Figure 5-7: HC08 Class Settings
Figure 5-8: Port Pin Settings - 68HC908AB Family
HC08 Target
The user should choose the HC08 target that best describes the target
MCU to be programmed. For example, choose “AB” for a 68HC908AB32
device, and choose “JB16” for a 68HC908JB16 device.
